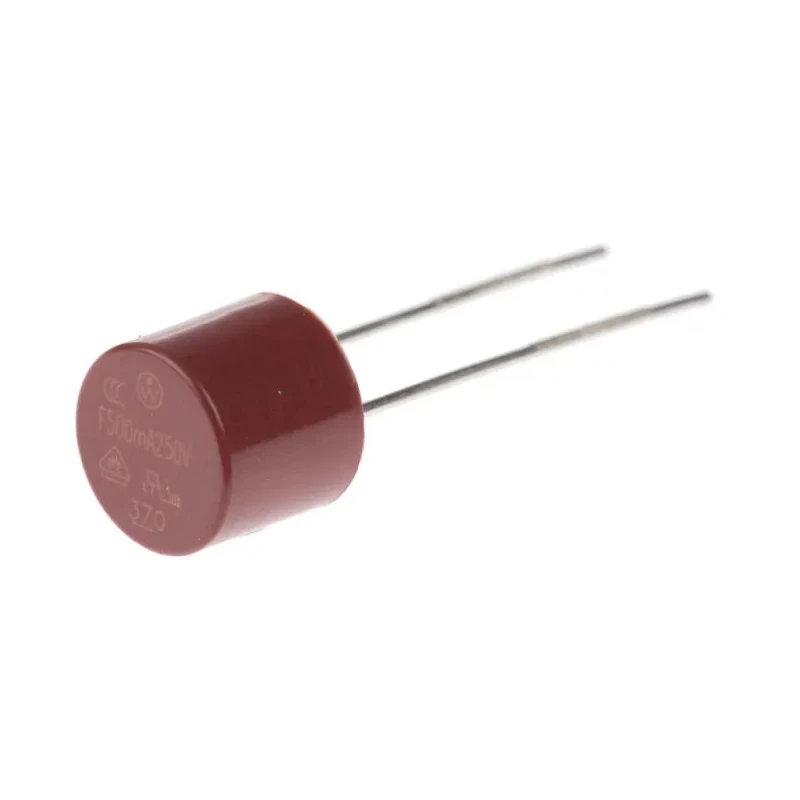

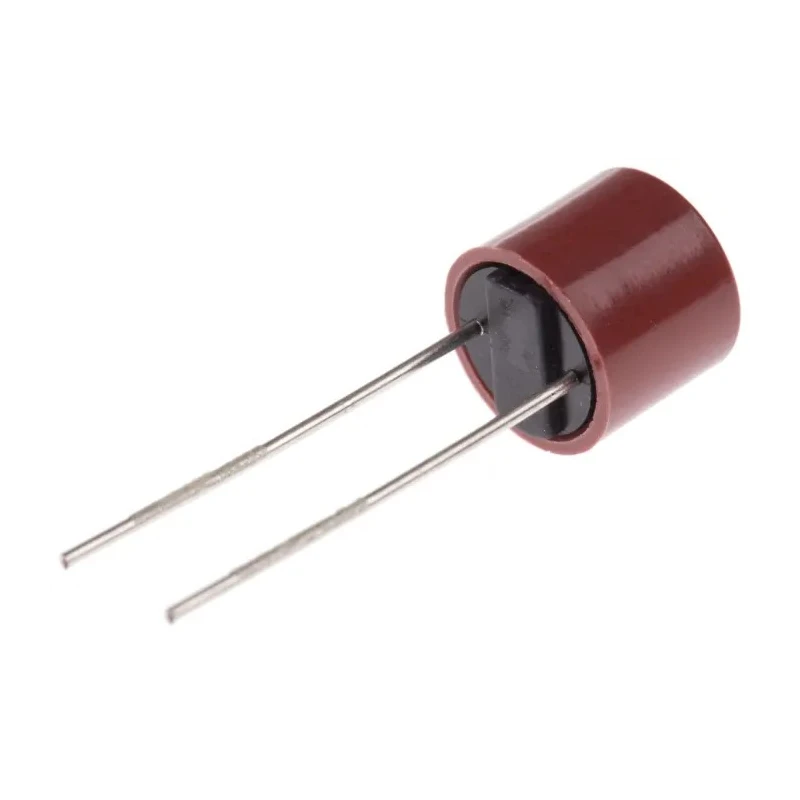

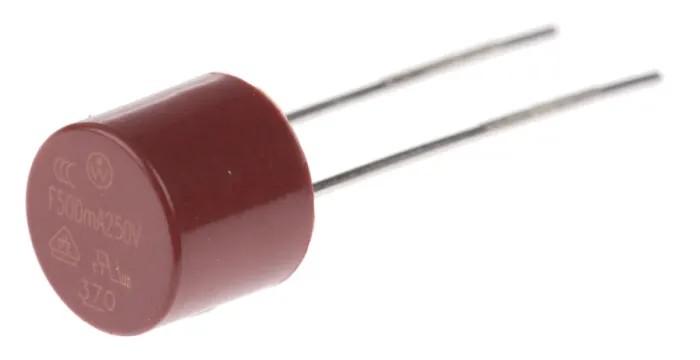

Littelfuse Non-Resettable Fuse Radial Lead 500mA 250V AC Fast Acting Nylon Body 37005000000

Littelfuse 37005000000 is a high-performance fast acting Non-Resettable Fuse designed for circuit protection in electrical and electronic applications. It features a radial lead orientation optimized for through-hole mounting and can be automatically inserted or soldered directly onto PCBs or plugged using compatible fuse holders.

The fuse body is made from durable nylon thermoplastic material, providing excellent electrical insulation and mechanical strength. Its compact size with an 8mm length and 8.5mm diameter fits well in limited space installations.

The fuse is rated for a current of 500mA and voltage of 250V AC, making it suitable for a wide range of electrical circuits requiring reliable overcurrent protection. It offers a breaking capacity of 35A, enabling the safe interruption of high fault currents.

Operating temperature specifications range from -40°C minimum to 85°C maximum, ensuring dependable performance in harsh industrial, commercial, and laboratory environments.

Standards compliance includes UL and VDE certifications, attesting to its safety and quality. The Series 370 fuse design supports rapid response through its fast acting fuse characteristic, minimizing damage risk to protected circuits.

This fuse is ideal for automation, electrical distribution, and various electronic devices requiring consistent and robust fuse protection. It is compatible with Littelfuse fuse holders and can be integrated into automated assembly processes due to its radial lead format and standardized dimensions.

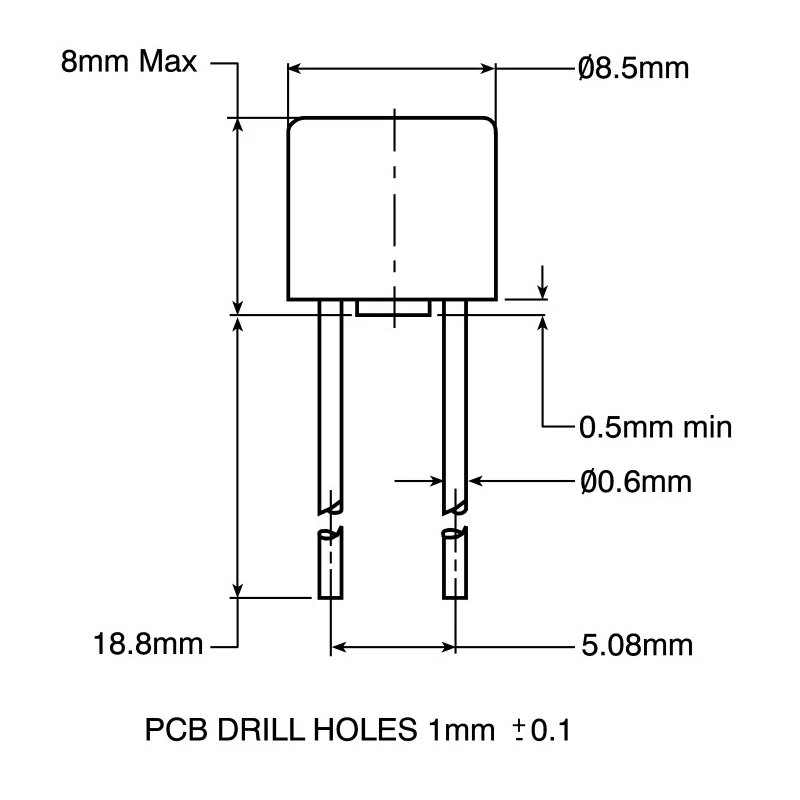

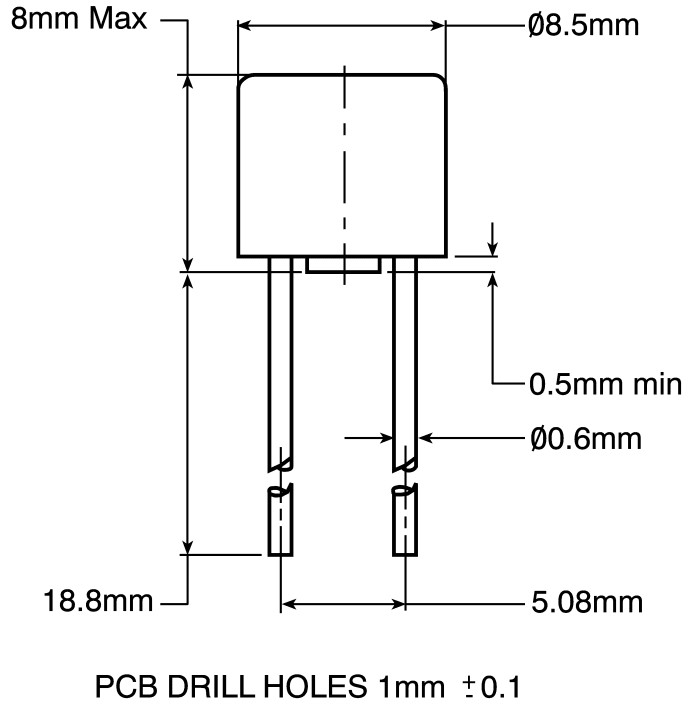

Features a nylon thermoplastic body for durability and electrical insulation. Radial lead orientation with 18.8mm lead length and 0.6mm lead diameter for easy through-hole mounting. Compact dimensions of 8mm length, 8mm height, and 8.5mm diameter ensure versatile installation.

Operating temperature range from -40°C to 85°C for reliable performance in varied environments. Breaking capacity of 35A provides robust fault interruption capability. Complies with UL and VDE standards for safety and quality assurance.

Series 370 design is suitable for automatic insertion and soldering or use with fuse holders. Fast acting fuse characteristic ensures quick response to overcurrent conditions.

For buyers seeking dependable electrical protection, Littelfuse 37005000000 is a proven solution backed by rigorous industry standards. Explore more fuses and electrical protection devices in the circuit breakers and fuse category at EnvMart.
