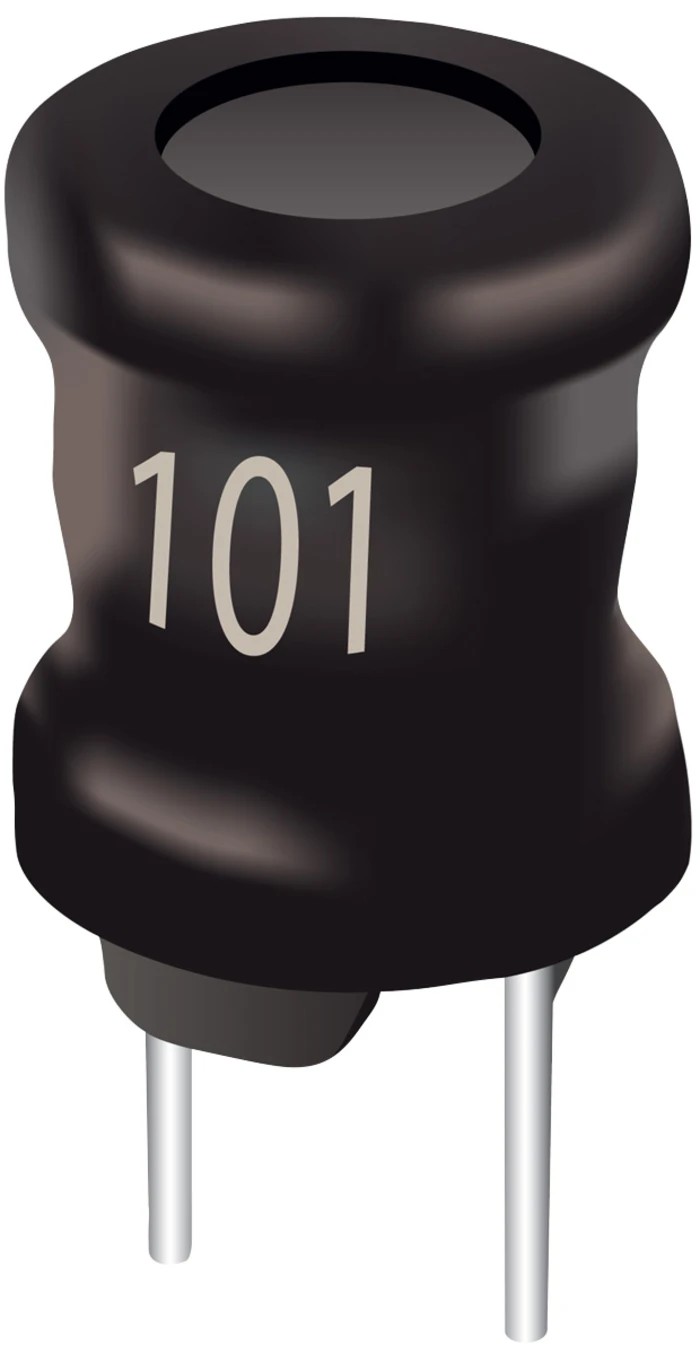

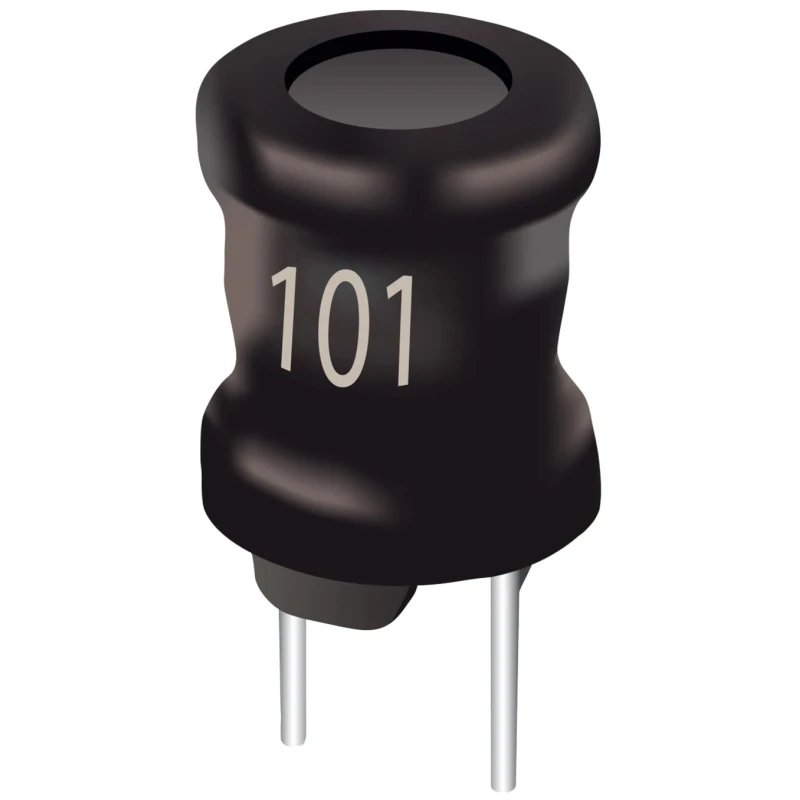

Bourns 10 mH Ferrite Leaded Inductor, Max Self Resonant Frequency 300 kHz, Quality Factor 40, 50 mA DC Current, 25 Ω RLB0913
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 8.5mm |
| Brand | Bourns |
| Height | 12.5mm |
| Length | 17.5mm |
| Model | RLB0913 |
| Depth | 12.5mm |
| Packaging | Tray |
| Mount Type | Radial |
| Series | RLB0913 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Test Frequency | 0.08MHz |
| Core Material | Ferrite |
| Inductance | 10mH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 50mA |
| Maximum DC Resistance | 25Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Radial Lead |
| Maximum Self Resonant Frequency | 300kHz |
| Minimum Quality Factor | 40 |
| Lead Pitch | 5mm |
| Lead Diameter | 0.65mm |
| Bourns 10 mH Ferrite Leaded Inductor, Max SRF | 300 kHz, Q:40, 50 mA Idc, 25 Ω Rdc, RLB0913 |
Key Features
- Features a ferrite core for stable electromagnetic properties.
- Maximum DC current rating is 50 mA ensuring reliable operation.
- Maximum DC resistance is 25 Ω minimizing energy loss.
- Maximum self-resonant frequency is 300 kHz suitable for filtering and tuning circuits.
- Lead diameter is 0.65 mm with radial lead termination style for easy mounting.
- Compact dimensions with 17.5 mm length and 8.5 mm diameter for PCB space efficiency.
- Operates across wide temperature range from -55°C to 125°C for durability.
- Packaging is tray type facilitating inventory and assembly handling.
Product Description
Bourns RLB0913 is a 10 mH ferrite leaded inductor with a maximum self-resonant frequency of 300 kHz, quality factor of 40, and a maximum DC current rating of 50 mA. It features a radial lead termination style and a 25 Ω maximum DC resistance, making it highly suitable for various electronic and electrical applications in industrial and commercial environments.
This inductor series is built on a ferrite core material optimized for stable inductance and low losses in DC-DC converters, power supplies, output chokes, and EMI/RFI filtering applications. The fixed lead spacing and shrink tubing protect the winding, enhancing reliability and durability under demanding conditions.
The RLB0913 has compact physical dimensions with a length of 17.5 mm, diameter of 8.5 mm, lead pitch of 5 mm, and lead diameter of 0.65 mm, allowing efficient PCB layout designs. It performs reliably across operating temperatures from -55°C up to 125°C, ensuring suitability for automotive, industrial, and consumer electronics.
The maximum DC resistance of 25 Ω and minimum quality factor of 40 contribute to efficient energy transfer with minimal losses. This product meets RoHS compliance standards, confirming its environmentally friendly manufacturing process.
The tray packaging provides convenience for bulk handling and automated manufacturing processes. Typical industrial applications include use in DC-DC converters, power supplies, electromagnetic interference suppression, and radio frequency interference filtering in manufacturing, telecommunication, and electronic prototyping.
Features a ferrite core for stable electromagnetic properties. Maximum DC current rating is 50 mA ensuring reliable operation. Maximum DC resistance is 25 Ω minimizing energy loss. Maximum self-resonant frequency is 300 kHz suitable for filtering and tuning circuits.
Lead diameter is 0.65 mm with radial lead termination style for easy mounting. Compact dimensions with 17.5 mm length and 8.5 mm diameter for PCB space efficiency. Operates across wide temperature range from -55°C to 125°C for durability.
Packaging is tray type facilitating inventory and assembly handling. Explore more inductors and electronic components of the Bourns brand at EnvMart for your industrial and laboratory needs.
Explore more products in our Leaded Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10 mH.
The maximum DC current rating for this inductor is 50 mA.
It has a maximum self-resonant frequency of 300 kHz.
The maximum DC resistance is 25 Ω, which helps minimize energy loss.
This inductor has a length of 17.5 mm, a diameter of 8.5 mm, and a lead pitch of 5 mm.
The lead diameter is 0.65 mm, suitable for radial lead termination.
It operates across a wide temperature range from -55°C to 125°C.
The minimum quality factor is 40, contributing to efficient energy transfer.
The inductor is packaged in a tray type, facilitating inventory and assembly handling.
It features a ferrite core, which provides stable electromagnetic properties.
Yes, this model meets RoHS compliance standards, confirming its environmentally friendly manufacturing process.
This inductor is suitable for use in DC-DC converters, power supplies, and EMI/RFI filtering applications.
