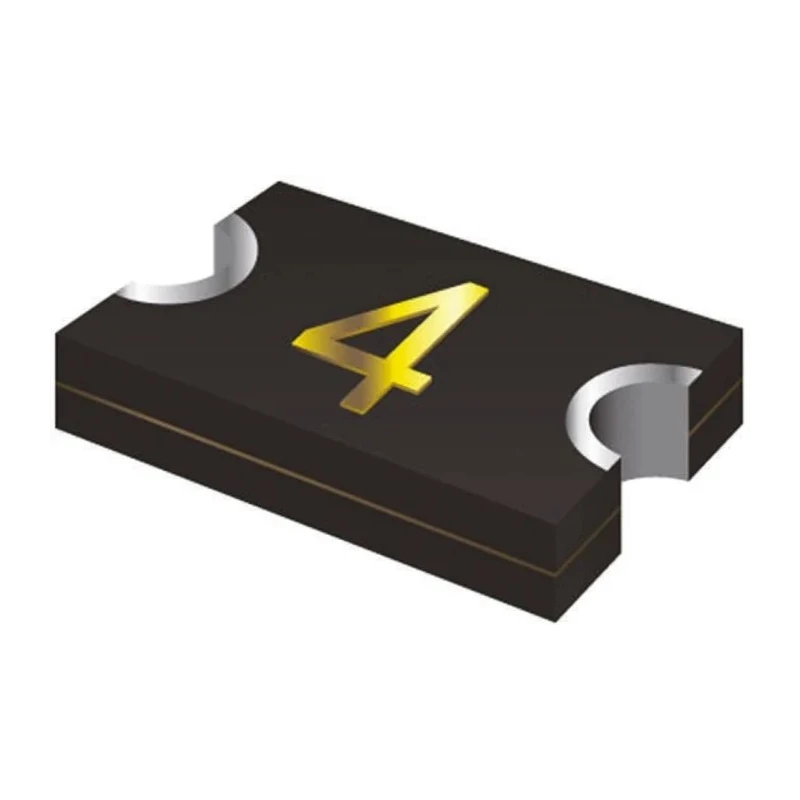

Bourns 0.2 A Resettable Fuse 9V Compact 0805 SMT with Gold Plated Nickel Terminals MF-PSMF020X-2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 9V |
| Brand | Bourns |
| Height | 0.85mm |
| Length | 2.3mm |
| Model | MF-PSMF020X-2 |
| Width | 1.5mm |
| Current Rating | 40A |
| Series | MF-PSMF |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 0805 |
| Trip Current | 0.5A |
| Power Dissipation | 0.5W |
| Terminal Material | Gold Plated Nickel |
| Standards/Approvals | UL, RoHS |
| Time to Trip | 0.02s |
| Hold Current | 0.2A |
| Minimum Resistance | 0.65Ω |
| Maximum Resistance | 3.5Ω |
Key Features
- Compact 0805 footprint saves board space and suits surface mount technology.
- Gold plated nickel terminals ensure reliable electrical connection.
- Extremely fast trip time of 0.02 seconds for prompt circuit protection.
- Automatic resettable fuse capable of thousands of cycles without replacement.
- Wide operating temperature range from -40°C to 85°C for versatile usage environments.
- Current rating up to 40 A with 0.5 A trip current for precise overload protection.
- Power dissipation rating of 0.5 W suitable for low power electronic circuits.
- Applications include USB port protection, mobile phones, PC motherboards, and game consoles.
Product Description
Bourns MF-PSMF020X-2 resettable fuse is designed for the protection of sensitive electronics against overcurrent faults. It features a low profile 0805 SMT package with gold plated nickel terminals to ensure excellent connectivity and durability in compact devices. Rated at 0.2 A hold current and 9V, this fuse reacts within 0.02 seconds to fault conditions, rapidly transitioning to a high resistance state to protect the circuit.
The fuse automatically resets after fault clearance without manual replacement, enabling thousands of cycles, reducing maintenance and downtime. With a power dissipation of 0.5 W and maximum operating temperature of 85°C, it suits a variety of applications including USB port protection, PC motherboards, mobile phones, PDAs, digital cameras, and game consoles.
Its compact 0805 footprint minimizes PCB space usage, ideal for modern electronic devices demanding high-density layouts. The fuse meets UL and RoHS certifications, ensuring quality, safety, and environmental standards compliance. It is supplied in reel packaging ready for automated assembly line insertion, enhancing manufacturing efficiency.
Compact 0805 SMT package for space-saving on printed circuit boards. Fast trip time of 0.02 seconds protects circuits from transient faults. Gold plated nickel terminals enhance electrical performance and durability. Automatic reset function allows thousands of protection cycles.
Wide holding current and trip current ratings for versatile circuit protection. Suitable for use in consumer electronics, computing, automotive, and medical equipment. Complies with UL and RoHS standards for safety and environmental responsibility.
Ideal for USB, mobile phones, PDAs, digital cameras, and game consoles. Supplied on reels to support automated manufacturing workflows. Explore EnvMart’s extensive range of electrical protection components and find Bourns Resettable Fuses to safeguard your electronic designs with quality and reliability.
