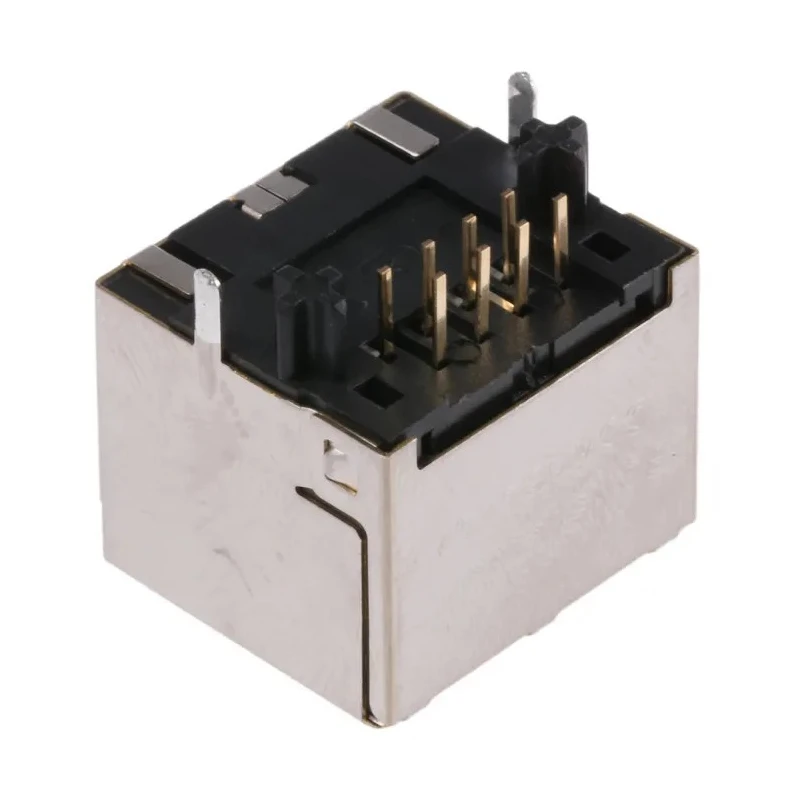

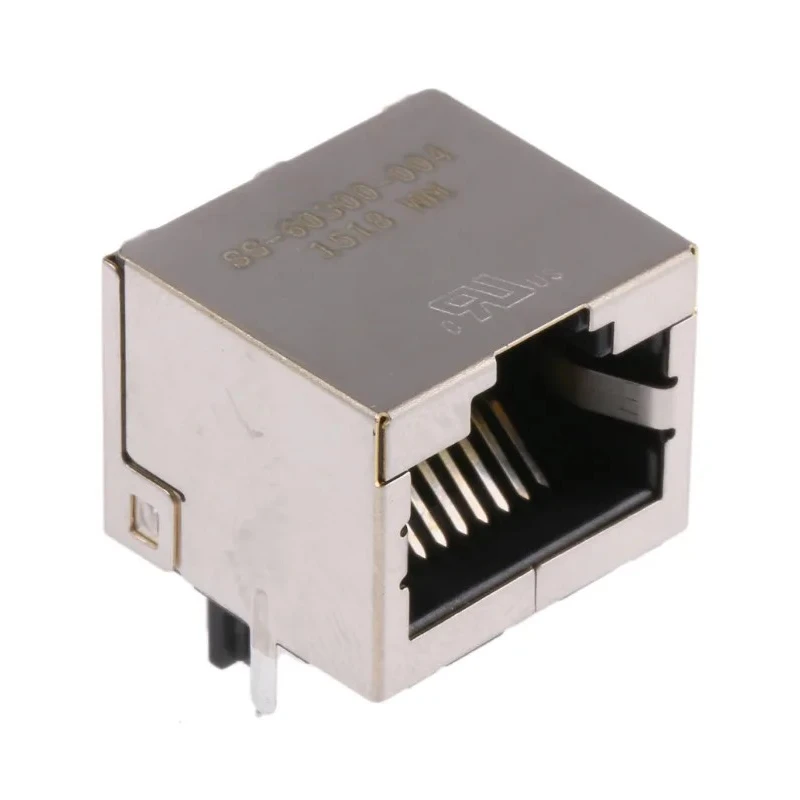

Bel-Stewart Shielded Cat6a RJ45 Female Modular Jack Connector, Through Hole, Right Angle, 1 Port 8 Way RJ45

Bel-Stewart RJ45 Shielded Cat6a Modular Jack Connector SS-60300-004 is a high-quality female RJ45 connector designed for professional network and electronic component applications. Featuring a shielded design compliant with Cat6a specifications, it ensures superior data transmission and reduced electromagnetic interference for Ethernet connections.

This connector is mounted through hole with a right angle orientation, making it ideal for compact PCB layouts and equipment assemblies requiring space-saving solutions. The contacts are made from copper alloy and plated with gold for optimal conductivity and corrosion protection, enhancing long-term reliability in demanding environments.

The connector is coated with a specialized environmental treatment that protects the contacts, acting as lubricant and significantly increasing the number of mating cycles to over 10,000. The robust UL 94-V0 flame-retardant plastic housing further ensures safety and durability in industrial and commercial use.

Physical dimensions include a width of 15.65mm, length of 12.73mm, and a depth of 14.25mm, suitable for various electronic assemblies and network devices. Termination is by soldering, ensuring a secure electrical connection without the need for additional fastening mechanisms.

Designed to meet the stringent requirements of modern network technology, this connector supports high-speed data links and provides stable and consistent performance. It is widely used in telecommunications, data centers, industrial networking, and commercial electronic equipment.

Constructed with copper alloy contacts featuring gold plating for enhanced conductivity and corrosion resistance. Cat6a LAN category rating ensures high-speed network performance. Right angle orientation and through hole mount type facilitate compact PCB designs.

Preloaded, formed wire contacts provide superior mechanical and electrical performance. Environmental coating protects contacts, increasing mating cycles to over 10,000. UL 94-V0 plastic housing provides flame retardance.

Dimensions include 15.65mm width, 12.73mm length, and 14.25mm depth. No LED indicator; termination by soldering. Suitable for harsh industrial and commercial electronic applications. Manufactured to series SS-60300 standards with high reliability.

This shielded RJ45 connector from Bel-Stewart is an excellent choice for reliable Ethernet connections in industrial, laboratory, manufacturing, and commercial network infrastructure configurations. Explore Bel-Stewart products and related Ethernet Connectors at EnvMart for precision network component solutions.
