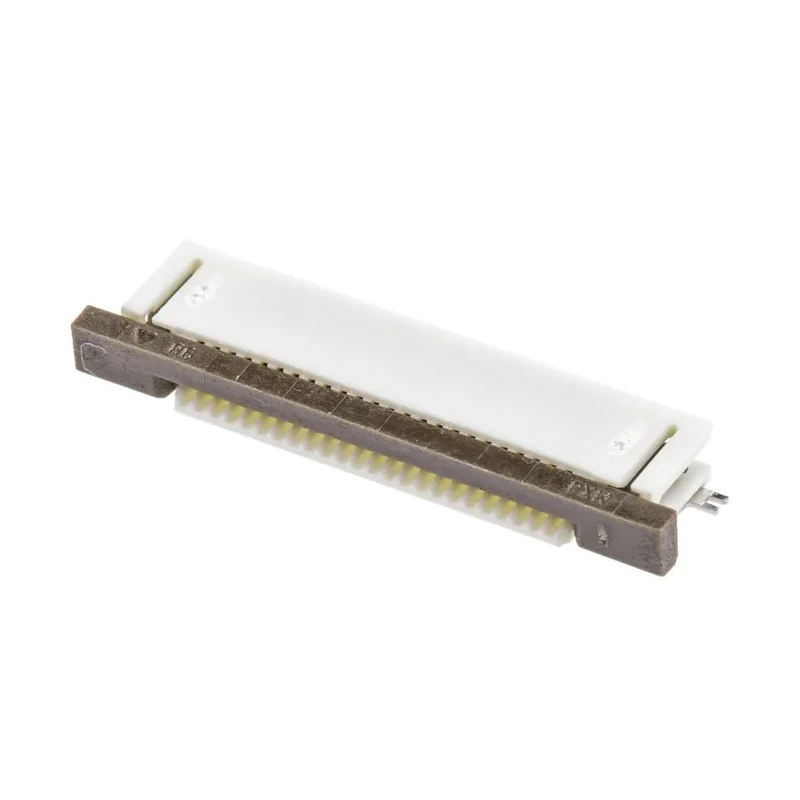

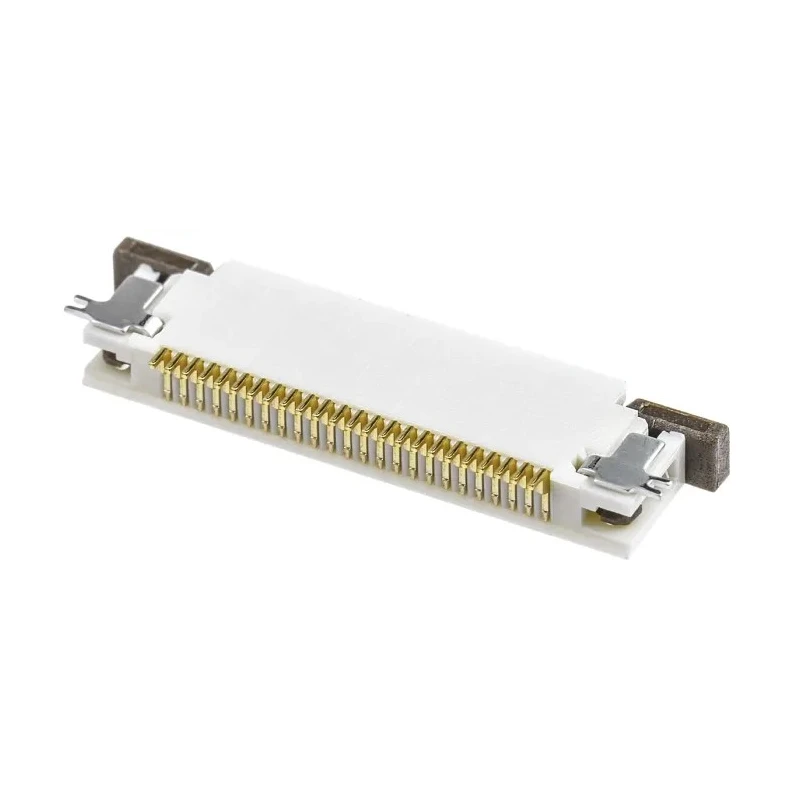

Molex 0.5 mm Pitch 24 Way Right Angle Female Easy-On Solder FPC Connector 52437-2471

Molex 52437-2471 is a 0.5 mm pitch, 24 way right angle female Easy-On FPC Connector designed for surface mounting on PCBs. It features a space-saving, slide type actuator that allows zero insertion force (ZIF) for reliable and secure connections.

This connector is constructed with phosphor bronze contacts plated with gold over nickel to ensure excellent electrical performance and durability. The nylon housing provides robustness and insulation under harsh operating conditions.

It supports a voltage rating of 50 V and a current of up to 500 mA. The operating temperature range is from -40°C to 85°C, making it suitable for a wide range of industrial and commercial electronic applications.

The connector has a bottom contact position with solder termination type and solder tabs for secure mounting and strain relief on the PCB. The locking mechanism ensures reliable retention of mating components.

These features make the Molex 52437-2471 connector ideal for use in automotive electronics, consumer devices, datacommunications equipment, medical instrumentation, mobile phones, and other applications requiring compact and reliable high-density flat flexible cable connectors.

0.5 mm pitch provides high-density PCB interconnections. Zero Insertion Force Easy-On design enhances durability through repeated cycle use. Right angle female connector optimizes PCB layout and space utilization. Gold plated phosphor bronze contacts offer excellent conductivity and corrosion resistance.

Nylon housing gives mechanical strength and electrical insulation. Solder termination and tabs secure the connector firmly to the PCB. Wide temperature range supports varied industrial environments. Locking mechanism secures cable retention for reliable operation.

Manufactured in Japan assures quality and standards compliance. Explore the full range of Molex connectors and related electronic components on EnvMart for your design and manufacturing needs.
