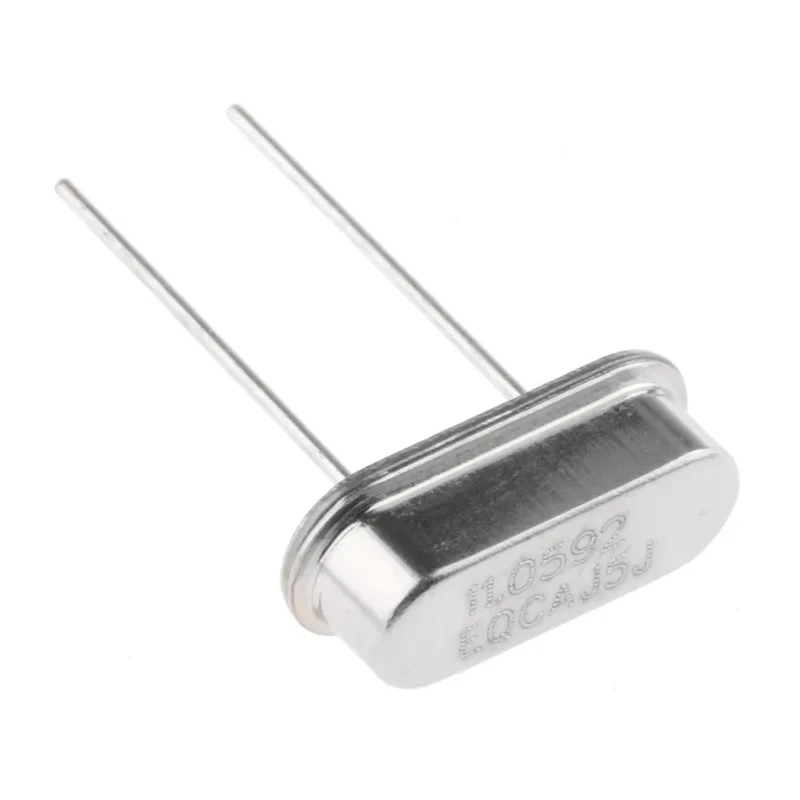

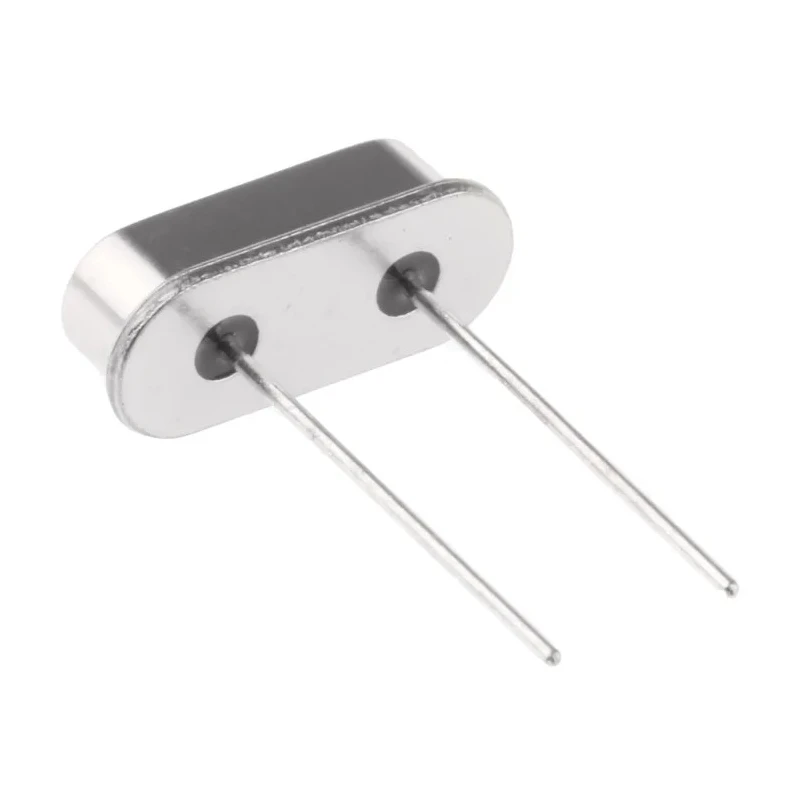

IQD Crystal 11.0592 MHz ±30 ppm HC-49 2-Pin Through Hole Load Capacitance 18pF Model 11.0592MHz HC49

Free Delivery in India | Lowest Global Shipping Charges

IQD Crystal 11.0592 MHz ±30 ppm HC-49 2-Pin Through Hole Load Capacitance 18pF Model 11.0592MHz HC49



Category Crystals, Oscillators & Resonators Brand IQD Condition New

Specifications

Country of Origin	China
Brand	IQD
Height	3.5mm
Length	10.77mm
Model	HC49
Packaging	Tape & Reel
Width	4.34mm
Mount Type	Through Hole
Maximum Operating Temperature	85°C
Package Type	HC-49
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	2
Standard Frequency	11.0592MHz
Load Capacitance	18pF
Series Resistance	40Ω
IQD 11.0592MHz Crystal ±30ppm HC-49-4H 2-Pin 11.05 x 4.7 x 4mmBrand	IQD

Key Features

Operating frequency is 11.0592 MHz with ±30 ppm tolerance.
Features a through-hole mount package with 2 pins for secure PCB installation.
Load capacitance rated at 18 pF ensures accurate oscillation.
Wide operating temperature range from -40°C to +85°C for industrial reliability.
Series resistance is 40 ohms supporting stable electronic resonance.
Packaged in tape & reel format suitable for automated assembly processes.
Compliant with RoHS environmental standards for safe and sustainable use.

Product Description

Euroquartz HC49 model 11.0592 MHz crystal is a high-precision electronic component designed for frequency control and timing applications. It features a standard frequency of 11.0592 MHz with a tight tolerance of ±30 ppm, ensuring stable operation in a variety of circuits, including communication devices, microcontroller clocks, and industrial control systems.

This crystal unit adopts a HC-49 package with a through-hole mount and two pins for straightforward PCB integration. Its compact size, measuring 10.77 mm in length, 4.34 mm in width, and 3.5 mm in height, suits limited space applications while maintaining robust mechanical stability.

The crystal’s electrical characteristics include a load capacitance of 18 pF and series resistance of 40 ohms, optimized to provide reliable oscillation and minimal power loss. Suitable for demanding environments, it operates effectively across a temperature span from -40°C to +85°C, making it well-suited for automotive, industrial, and consumer electronics where temperature variation can impact performance.

RoHS compliance assures that this component meets environmental and safety regulations, establishing it as a green choice in electronic assemblies. The product is supplied in tape & reel packaging, enabling efficient pick-and-place handling and high-volume production processes.

Ideal for use in industrial automation, telecommunications, computing, and measurement instruments, the Euroquartz 11.0592 MHz HC49 crystal is a versatile component for reliable timing requirements.

Operating frequency is 11.0592 MHz with ±30 ppm tolerance. Through-hole HC-49 style package with 2 pins. Load capacitance of 18 pF enhances frequency stability. Compact dimensions: 10.77 mm x 4.34 mm x 3.5 mm. Operating temperature range -40°C to +85°C.

Series resistance of 40 ohms supports stable oscillation. RoHS compliant for environmental safety. Packaged in tape & reel format for manufacturing efficiency. Browse the Electronics Components category on EnvMart for compatible oscillators and related crystal units.
