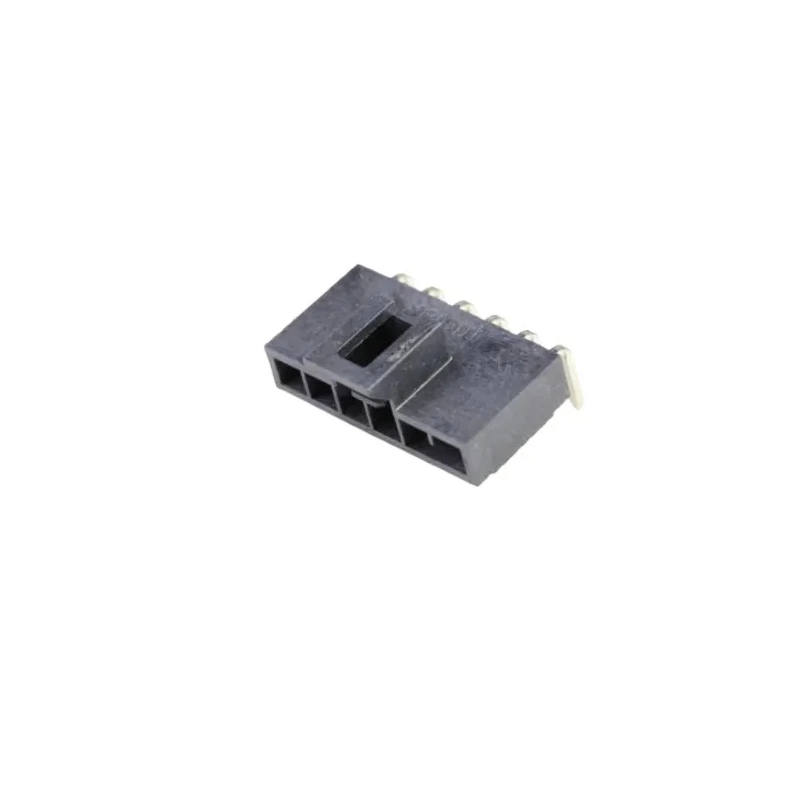

Molex Nano-Fit Series PCB Header 6 Contacts 2.5mm Pitch Right Angle Through Hole Shrouded 105313-1106

The Molex 105313-1106 Nano-Fit Series PCB Header is a compact, right angle, through-hole connector designed to provide robust and secure wire-to-board connections in modern electronic assemblies. This particular model features six male contacts arranged in a single row with a standardized pitch of 2.5mm, allowing for efficient and dense component integration on printed circuit boards.

This header is equipped with a shrouded design, which not only offers enhanced physical protection but also prevents accidental misalignment during mating with corresponding connectors. The termination employs a reliable solder through-hole type, helping to ensure a permanent and conductive connection suitable for industrial, control panel, consumer electronics, and telecommunication assemblies. Its housing is constructed from liquid crystal polymer, well-regarded for high temperature stability and resilience, providing long-term reliability.

The product supports wire gauges ranging from 20 to 26 AWG, addressing a broad range of wiring needs. With a strong maximum current capacity of up to 8A and a voltage rating of 250 V, this header is engineered for versatile use in demanding environments and complies with wide application standards. The design includes a 3.2mm tail pin length and is optimized for use in compact systems where board space optimization is essential.

Brass contacts with tin plating ensure excellent electrical conductivity and corrosion resistance, making it an ideal choice for settings exposed to both mechanical and environmental stress. Withstanding operating temperatures from -40°C to 105°C, this header can be integrated into equipment used in hostile or industrial environments.

This connector finds application not only in automated machinery and electrical control panels but also in the assembly of consumer electronic devices, telecommunications equipment, and any other system where a secure, reliable, and compact PCB header is required. The Nano-Fit series design prioritizes both electrical performance and physical durability, supporting product longevity and troubleshooting convenience.

The Molex Nano-Fit Series PCB Header 105313-1106 supports efficient engineering solutions for electrical designers and system integrators seeking compact wire-to-board connectivity without sacrificing current handling or operational resilience.
