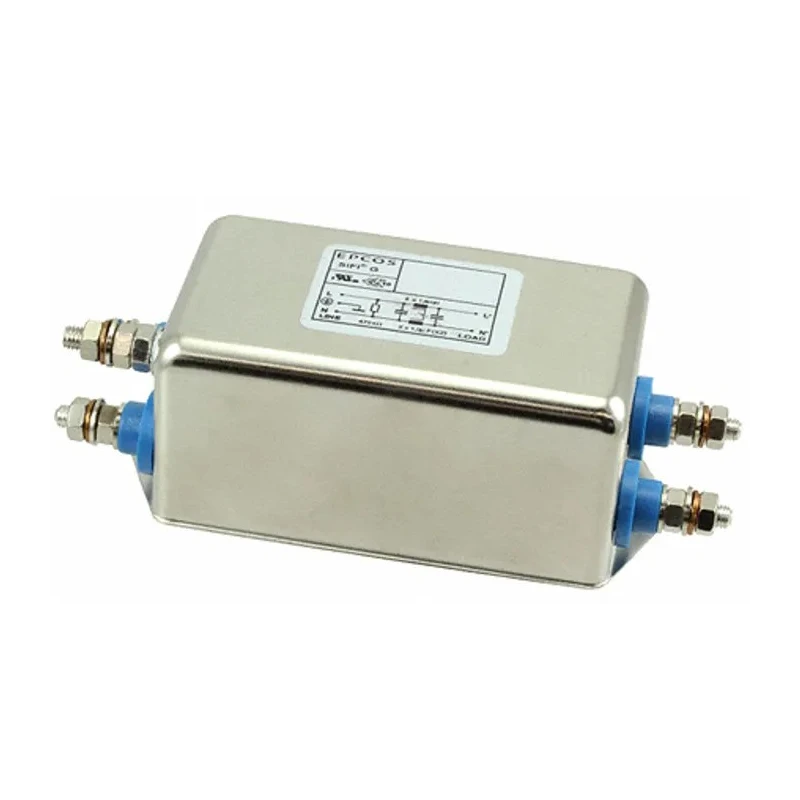

TDK Chassis Mount EMC Filter Screw 36A 250V AC/DC 50Hz 60Hz Single Phase B84112G0000M136
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 43mm |
| Length | 91mm |
| Model | B84112G0000M136 |
| Depth | 51mm |
| Mount Type | Chassis Mount |
| Operating Frequency | 50, 60Hz |
| Series | B84112G |
| Maximum Operating Temperature | 100°C |
| Number Of Stages | 1 |
| Capacitance | 2μF |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 36A |
| Number of Phases | 1 |
| Leakage Current | 0mA |
| Maximum Voltage | 250V ac/dc |
| Inductance | 2mH |
| Standards/Approvals | UL1283 |
| Termination Style | Screw |
Key Features
- Compact and robust design suitable for easy installation on chassis mounts.
- Operates efficiently at frequencies of 50Hz and 60Hz.
- Features screw termination style for secure connections.
- Single-phase filter with one stage for effective EMC noise suppression.
- Constructed with 2 line filters housed in a metal case for durability.
- Capacitance of 2μF and inductance of 2mH ensure reliable filtering performance.
- Wide operating temperature range from -25°C to 100°C for versatile industrial applications.
- Leakage current rated at 0mA to prevent unwanted current flow.
Product Description
TDK B84112G0000M136 chassis mount EMC filter is a single-phase power line filter designed for industrial and electronic applications, supporting a maximum current of 36A and a rated voltage of 250V AC/DC. It operates at standard frequencies of 50Hz and 60Hz, providing efficient electromagnetic compatibility (EMC) noise suppression. The filter features a robust chassis mounting design with screw termination for easy and secure installation.
This model belongs to the B84112-G series, which includes power filters constructed with two line filters encapsulated in a metal case, enhancing durability and performance. A capacitance of 2μF and inductance of 2mH contribute to reliable filtering capability, ensuring minimal interference in sensitive electronic environments.
The filter withstands operating temperatures ranging from -25°C up to 100°C, making it suitable for varied industrial and commercial applications. The leakage current is minimized to 0mA, reflecting its efficiency and safety compliance. This filter meets the UL1283 standard, certifying its adherence to safety and operational guidelines.
Applications of the B84112G0000M136 EMC filter include industrial electronics, switch-mode power supplies, telecommunication equipment, data systems, DC applications, and specific versions suitable for medical equipment. Its compact form factor with dimensions of 91mm length, 51mm depth, and 43mm height supports versatile mounting requirements.
The product is manufactured in China and is intended for environments requiring stringent EMI noise filtering, contributing to overall system reliability and compliance. Compact chassis mount design for ease of installation.
Rated for 36A current and 250V AC/DC voltage. Operates at 50Hz and 60Hz frequencies. Screw termination style for secure connection. Single-phase configuration with one filtering stage. Capacitance of 2μF and inductance of 2mH for effective EMC noise suppression.
Wide operating temperature range from -25°C to 100°C. Zero leakage current ensuring high safety standards. UL1283 standard approved for reliable performance. Suitable for use in industrial electronics, telecom, data, DC applications, and medical equipment.
Explore the range of EMC Filters in EnvMart for enhanced electromagnetic interference protection solutions across industrial and electronic domains.
Explore more products in our Passive Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this EMC filter is 36A.
This model supports a rated voltage of 250V AC/DC.
It operates efficiently at frequencies of 50Hz and 60Hz.
The capacitance is 2μF and the inductance is 2mH, ensuring effective EMC noise suppression.
The dimensions of this filter are 91mm in length, 51mm in depth, and 43mm in height.
It has a wide operating temperature range from -25°C to 100°C.
It features a screw termination style for secure connections.
This model is UL1283 standard approved, ensuring compliance with safety and operational guidelines.
This EMC filter is designed for chassis mount installation.
It is suitable for industrial electronics, switch-mode power supplies, telecommunication equipment, and medical equipment.
The leakage current is rated at 0mA, preventing unwanted current flow.
