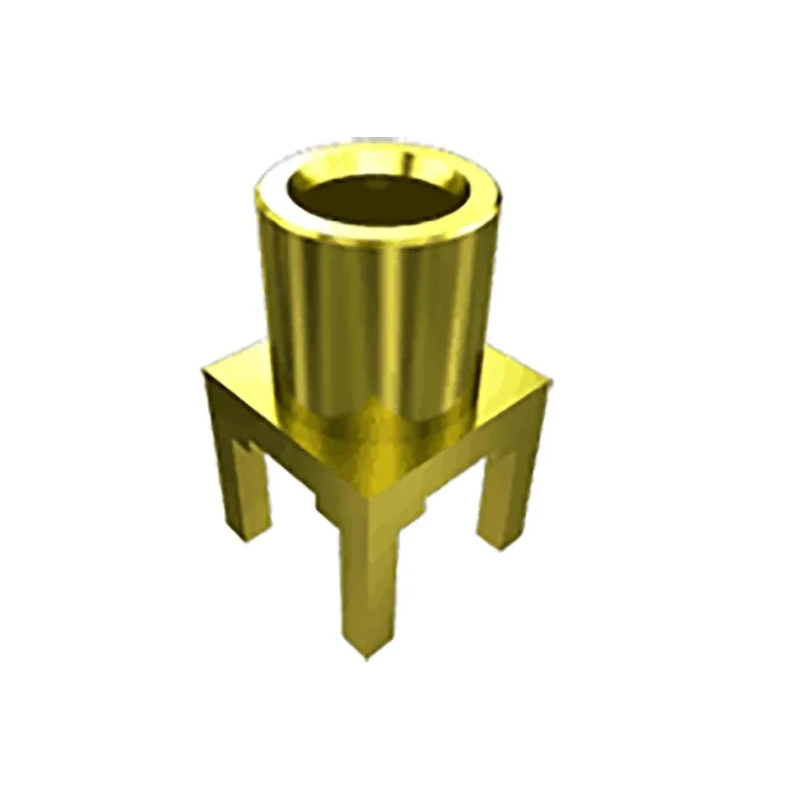

Samtec Coaxial Connector PCB Female MCX 75Ω Straight Gold Solder 6GHz MCX7
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | Samtec |
| Orientation | Straight |
| Model | MCX7 |
| Mount Type | PCB |
| Operating Frequency | 6GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | MCX7 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | MCX |
| Body Plating | Gold |
Key Features
- PCB mount female MCX coaxial connector for high-frequency signal transmission.
- Standard 75Ω impedance suitable for video, broadcast, and RF environments.
- Straight body orientation enables precise PCB integration.
- Gold-plated contact and body for excellent conductivity and corrosion resistance.
- Supports maximum operating frequency up to 6GHz.
- Robust beryllium copper alloy contacts ensure durability and consistent performance.
- Designed for solder termination, ensuring secure board-level attachment.
- Operates reliably from -65°C to +125°C suitable for harsh environments.
Product Description
The Samtec MCX7-J-P-H-ST-TH1 is a high-quality PCB mount female MCX coaxial connector specifically engineered for superior RF and high-frequency signal transmission. Its 75 ohm impedance makes it ideal for use in broadcast, video, and diverse RF communication setups where precision and reliability are crucial.
This connector features a straight body orientation, allowing for straightforward integration onto printed circuit boards. The use of beryllium copper alloy for the contacts and gold-plating for both contacts and body ensures low contact resistance, high conductivity, and outstanding resistance to corrosion, making it suitable for applications demanding secure and long-lasting connections.
The MCX7-J-P-H-ST-TH1 is designed for solder termination, providing a secure and stable connection to the PCB without the risk of loosening that can occur in harsher environments. Its standard size fits most PCB layouts, offering flexibility for engineers and designers in high-speed signal routing.
Performance is further enhanced by its support for frequencies up to 6GHz, meeting the needs of modern high-speed digital systems, such as 3G SDI, and ensuring signal fidelity with minimal loss or interference across a wide frequency range. The connector's robust construction allows operation from -65°C to +125°C, suitable for demanding industrial, laboratory, and communication environments.
Applications include professional broadcasting, telecommunications, instrumentation, test equipment, and industrial RF electronics where compact form factor and high electrical performance are needed. The MCX7-J-P-H-ST-TH1's vertical or right-angle mounting options add further integration flexibility.
This series does not feature a bulkhead mount and is polarity-normal, designed for standard RF PCB integration. With compliance for long-term performance and resistance to mechanical stress, the Samtec MCX7-J-P-H-ST-TH1 is an excellent choice for engineers seeking reliable RF interconnection for advanced electronic systems.
Explore more Samtec RF connectors and browse EnvMart's comprehensive Coaxial Connector selection for all your high-frequency PCB design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this model is 6GHz, making it suitable for high-frequency signal transmission.
This connector is designed for solder termination, ensuring a secure connection to the PCB.
The impedance rating of this model is 75Ω, which is standard for video, broadcast, and RF applications.
The contacts are made from beryllium copper alloy and feature gold plating for improved conductivity and corrosion resistance.
It operates reliably within a temperature range of -65°C to +125°C, suitable for harsh environments.
This model features a straight body orientation, allowing for easy integration onto printed circuit boards.
It is suitable for applications in professional broadcasting, telecommunications, instrumentation, test equipment, and industrial RF electronics.
The connector gender is female, which is designed for use with female mating connectors.
No, this series does not feature a bulkhead mount; it is designed for standard RF PCB integration.
The size of this model is classified as standard, making it compatible with most PCB layouts.
The body of this connector is gold-plated, which enhances conductivity and resistance to corrosion.
This model features a normal polarity, designed for standard RF PCB integration.
