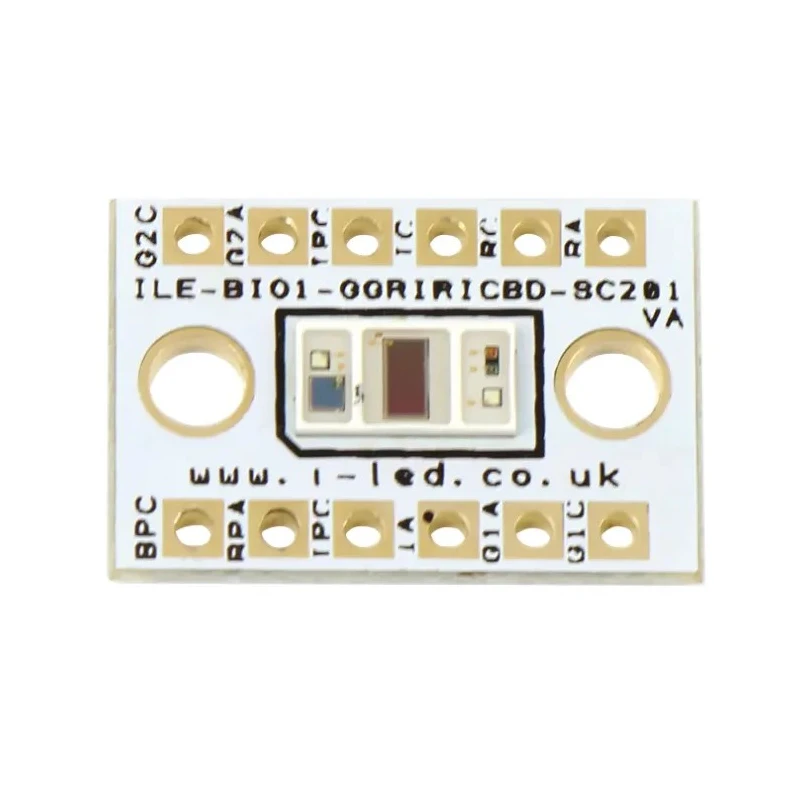

Intelligent LED Solutions BIOFY Sensor Version 1.0 for SFH 7072 Smart Watches, Mobile Devices ILE-BI01-GGRIRICBD-SC201.

Free Delivery in India | Lowest Global Shipping Charges

Intelligent LED Solutions BIOFY Sensor Version 1.0 for SFH 7072 Smart Watches, Mobile Devices ILE-BI01-GGRIRICBD-SC201.

Name: Intelligent LED Solutions BIOFY Sensor Version 1.0 for SFH 7072 Smart Watches, Mobile Devices ILE-BI01-GGRIRICBD-SC201.
Brand: Intelligent LED Solutions
SKU: 152493
Price: 14.98 USD
Availability: InStock



Category Sensor Development Tools Brand Intelligent LED Solutions Condition New

Specifications

Country of Origin	United Kingdom
Brand	Intelligent LED Solutions
Dimensions	20.25x13.70x0.90mm
Model	ILE-BI01-GGRIRICBD-SC201.
For Use With	Smart Watches, Mobile Devices, Wearable Devices, Fitness Trackers
Standards/Approvals	RoHS
Featured Device	SFH 7072
Kit Name	BIOFY Sensor Version 1.0

Key Features

The sensor is based on the SFH 7072, featuring multiple emitters and photodiodes.
Includes infrared, red, and green LEDs for precise biometric measurements.
Compact dimensions of 20.25x13.70x0.90mm enable easy integration.
M3 screw mounting holes facilitate secure installation.
Constructed on an FR4 PCB with thermal vias for optimal thermal management.
Generates minimal heat, eliminating the need for secondary heat sinking.
Improved signal quality aids in accurate oxygen saturation (SpO2) calculations.

Product Description

Intelligent LED Solutions ILE-BI01-GGRIRICBD-SC201. BIOFY Sensor Version 1.0 is a sophisticated sensor development tool integrating the Biofy® SFH7072 sensor array. This sensor is specifically designed for use in smart watches, mobile devices, wearable devices, and fitness trackers requiring accurate biometric data acquisition.

The sensor incorporates two green emitters (530nm), one red LED (660nm), and one infrared emitter (950nm), alongside an infrared cut detector with spectral sensitivity from 402 to 694nm and a broadband photodiode sensitive from 420 to 1100nm. The design optimizes the distance between the emitters and detectors to enhance light reflection, improving signal quality for more reliable measurements, particularly for blood oxygen saturation (SpO2).

The sensor assembly is mounted on a compact FR4 printed circuit board measuring 20.25x13.70x0.90mm with thermal vias to ensure efficient heat dissipation. Its low heat generation negates the need for additional heat sinks, making it suitable for compact electronic applications.

Mounting holes designed for M3 screws allow straightforward and secure installation into various device assemblies. The sensor complies with RoHS standards, ensuring environmentally responsible manufacturing.

This product is ideal for industrial, laboratory, healthcare, and commercial development scenarios in wearable health monitoring and fitness technology sectors. It supports research and development in biosensing, photoplethysmography, and oxygen saturation monitoring.

The sensor is based on the SFH 7072, featuring multiple emitters and photodiodes. Includes infrared, red, and green LEDs for precise biometric measurements. Compact dimensions of 20.25x13.70x0.90mm enable easy integration.

M3 screw mounting holes facilitate secure installation. Constructed on an FR4 PCB with thermal vias for optimal thermal management. Generates minimal heat, eliminating the need for secondary heat sinking. Improved signal quality aids in accurate oxygen saturation (SpO2) calculations.
