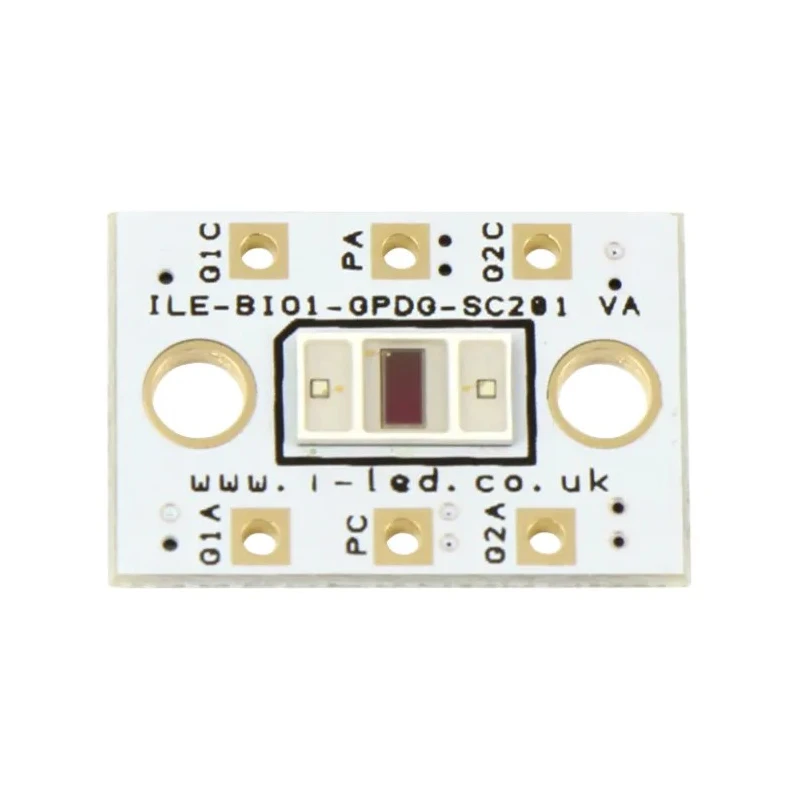

Intelligent LED Solutions BIOFY Sensor Version 1.1 for SFH 7070 Wearable Devices, Mobile Devices ILE-BI01-GPDG-SC201.

Intelligent LED Solutions ILE-BI01-GPDG-SC201. BIOFY Sensor Version 1.1 is a sensor development tool tailored for integration into wearable devices, mobile devices, fitness trackers, and smart watches. At its core is the Biofy® SFH7070 sensor that combines a large-format photo diode with three green LEDs emitting at 530 nanometres. This design allows precise heart rate monitoring by detecting changes in blood volume beneath the skin using optical measurement technology.

The sensor operates by emitting green light which is partly absorbed by blood and surrounding tissues; the reflected light is detected by the photo diode to calculate pulse. The green emission spectrum and wrist-optimized sensing make it ideal for health and fitness monitoring applications. The sensor is built on a compact FR4 PCB with thermal vias, minimizing heat generation with no need for secondary heat sinks, improving device reliability and comfort.

Mechanical integration is facilitated by standard M3 screw mounting holes. The device's compact measurements of 20.25 mm length, 13.70 mm width, and 0.90 mm height suit modern compact electronics. The product is fully RoHS compliant and manufactured in the United Kingdom, ensuring regulatory and quality standards.

This sensor development tool is essential for designers and manufacturers in electronic health monitoring, sports technology, and related industrial applications. It supports high accuracy and reliability for optical heart rate sensing in commercial and consumer wearable electronics.

The sensor features a large-format photo diode and three green LEDs with a wavelength of 530 nm. It effectively monitors heart rate by measuring blood volume variations through the skin surface. The compact Eco1 PCB design includes thermal vias for optimal heat management without secondary heat sinking.

Mounting holes compatible with M3 screws enable easy installation within devices. Dimensions are 20.25 x 13.70 x 0.90 mm, allowing integration in compact electronics. The sensor is RoHS compliant and manufactured in the United Kingdom.
