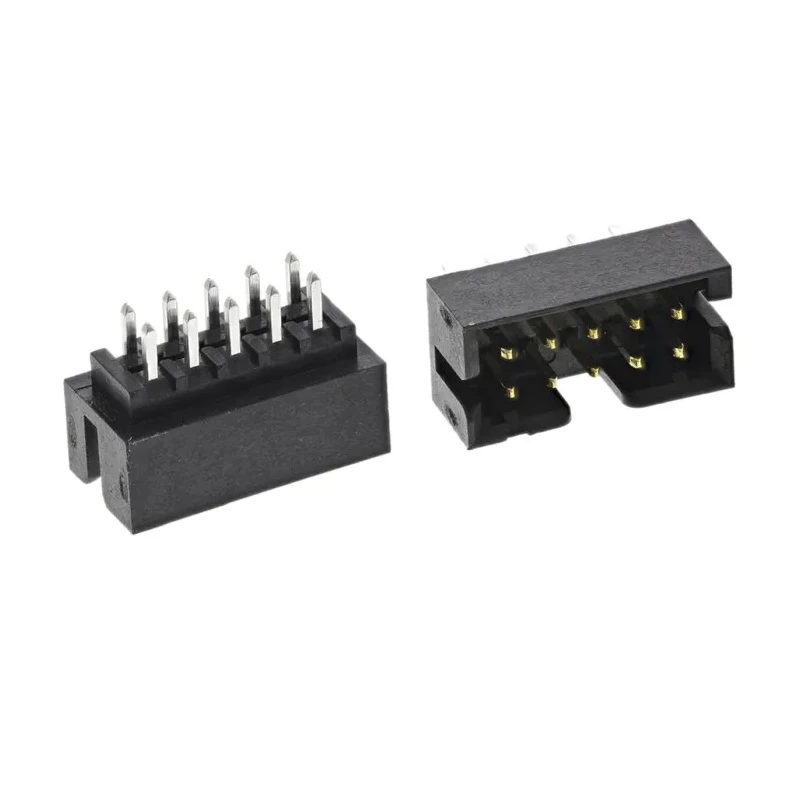

Molex Milli-Grid Series Shrouded Straight Through Hole PCB Header 10 Contacts 2mm Pitch 2 Row 87831-1020

Molex 87831-1020 Milli-Grid Series Straight Through Hole PCB Header offers a robust and compact connector solution featuring 10 male contacts arranged in 2 rows with a 2 mm pitch grid pattern. The shrouded housing is made of durable nylon to protect the contacts from mechanical damage and to ensure reliable, secure mating with female connectors.

The connector system is designed for wire-to-board applications with through-hole mounting, using phosphor bronze contacts plated with gold for corrosion resistance and excellent electrical performance. The kinked solder tails provide strong retention on the PCB, supporting automated insertion and soldering processes.

This PCB header operates within a temperature range of -55°C to 105°C, rated at 2 Amps current and 125 Volts voltage. The central polarization slot and locking windows help prevent incorrect mating and ensure a secure connection during use.

Typical industrial and commercial use cases include printing equipment, telecommunications hardware such as routers and switches, automotive audio and GPS systems, security alarms, set-top boxes, and digital media players.

The Milli-Grid connector system, based on the 2 x 2 mm grid design, supports high-density PCB and cable interconnections with versatile options including shrouded or unshrouded headers and various mounting orientations.

The 2.00 x 2.00 mm high-density grid provides design flexibility. Shrouded construction protects contacts from damage and improves mating security. Features centre polarization slot to prevent mismating and locking windows for secure connections.

Kinked solder tails ensure secure retention to the PCB during soldering. Suitable for through-hole mounting with straight orientation and phosphor bronze contacts plated in gold. Operates reliably between -55°C to 105°C with a current rating of 2A and voltage rating of 125V.

Ideal for wire-to-board signal applications including printers, copiers, routers, security systems, and automotive electronics. Explore more high quality connectors and PCB header solutions at EnvMart to support your industrial and manufacturing requirements.
