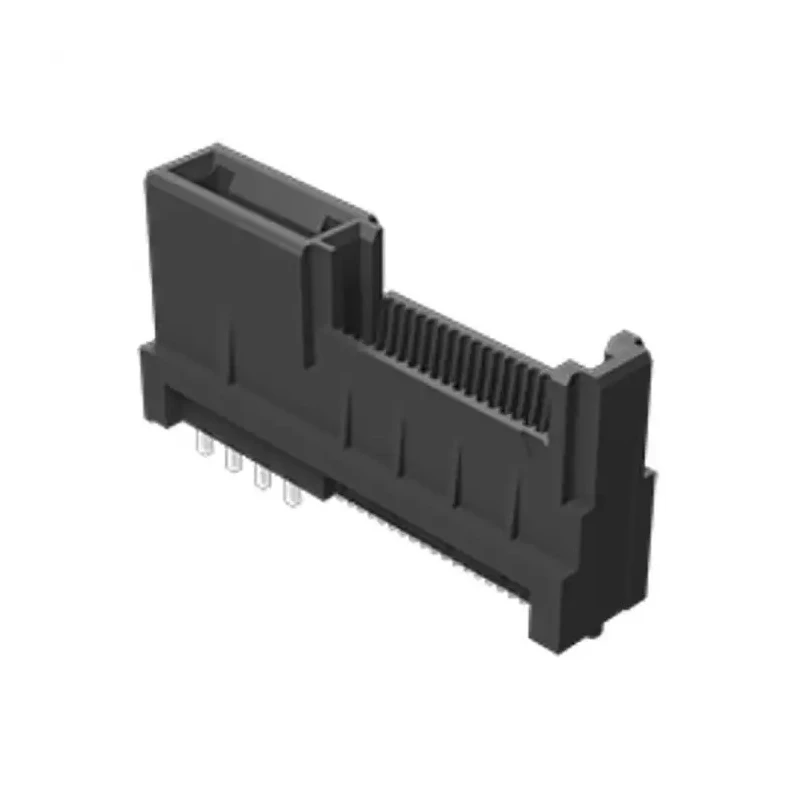

Samtec Vertical Edge Connector Female Surface Mount 80-Contacts 0.8 mm Pitch 2 Row Solder HSEC8-140-01-SM-DV-A

Samtec HSEC8-140-01-SM-DV-A vertical edge connector female surface mount is a high-performance 80-contact connector with a pitch of 0.8 mm arranged in 2 rows. Designed specifically for PCIe card types, this connector offers reliable electrical performance and mechanical robustness for demanding industrial and electronic component applications.

This edge connector supports a current rating of 2.8 A and operates at voltages up to 240 V. Contacts are gold plated and constructed from beryllium copper alloy, ensuring excellent conductivity and resistance to wear. The rugged liquid crystal polymer housing withstands harsh environmental conditions with an operating temperature range from -55°C to 125°C.

The connector’s vertical orientation and surface mount style ensure compatibility with modern PCB assembly techniques. Card thickness is specified at 1.6 mm with a card slot dimension of .062" (1.60 mm), allowing secure and precise connections. The solder termination type guarantees stable electrical and mechanical performance on printed circuit boards.

Additional features include an optional weld tab for mechanical strength, the Rugged Edge Rate® contact system, single-ended and differential pairs support, pass-through board options, as well as optional board locks and cable latching features to enhance installation reliability.

This connector is ideal for use in electronic manufacturing, laboratory instrumentation, computing equipment, data communications, and industrial control applications. It is part of the HSEC8-140-01-SM-DV-A series by Samtec, recognized for extended life product (E.L.P.™) and high-speed 28+ Gbps solutions.

This edge connector supports a current rating of 2.8 A. It has a vertical orientation suitable for surface mounting. The contacts are gold plated and made from beryllium copper alloy for durability. Operates reliably in temperatures ranging from -55°C to 125°C.

The housing is made from liquid crystal polymer for ruggedness. Card thickness supported is 1.6 mm with a card slot of .062" (1.60 mm). The connector termination type is solder for secure PCB connection. Designed to operate at voltages up to 240 V.

Includes optional features like weld tab for mechanical strength and cable latching options. Suitable for industrial electronic systems requiring PCIe vertical edge connections. Explore more Edge Connectors suitable for your electronics design needs at EnvMart.
