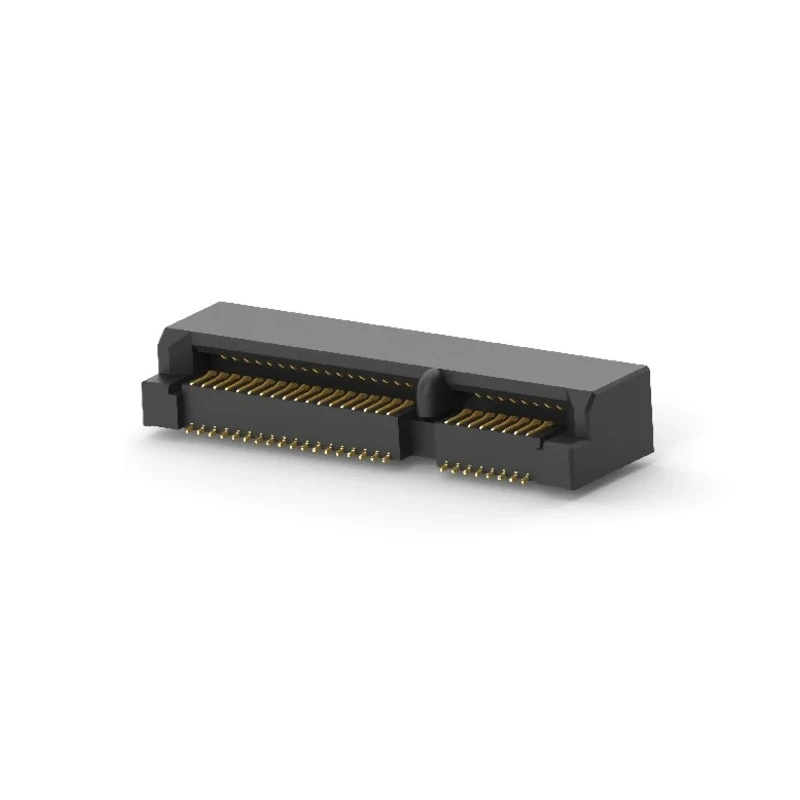

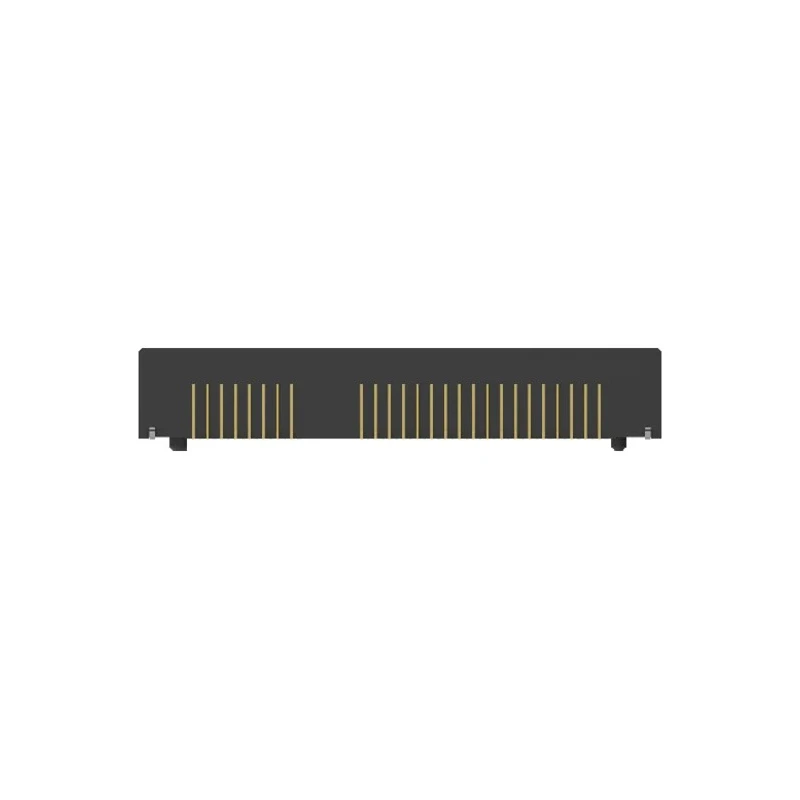

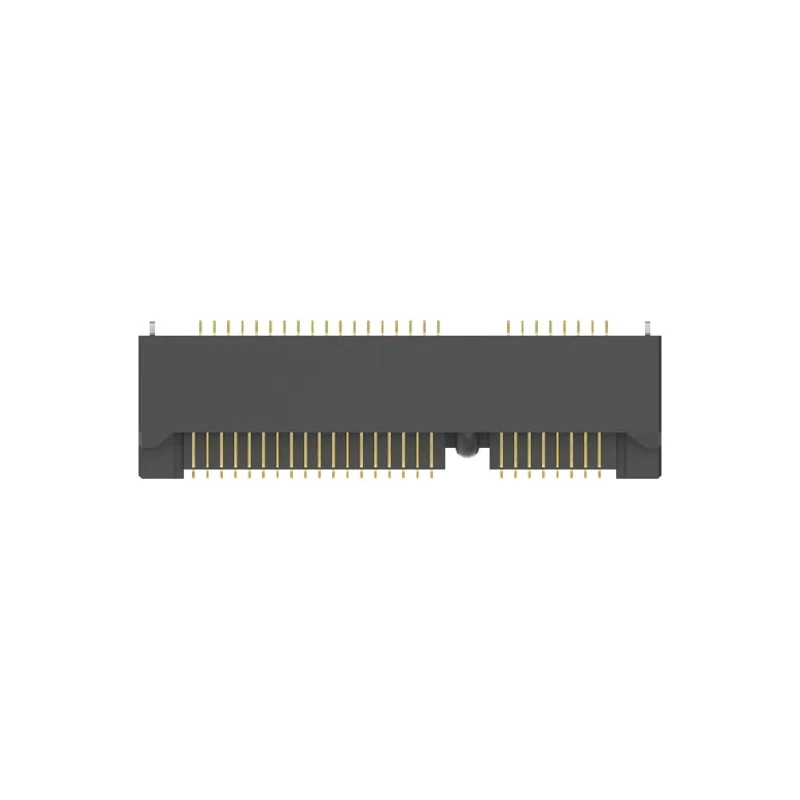

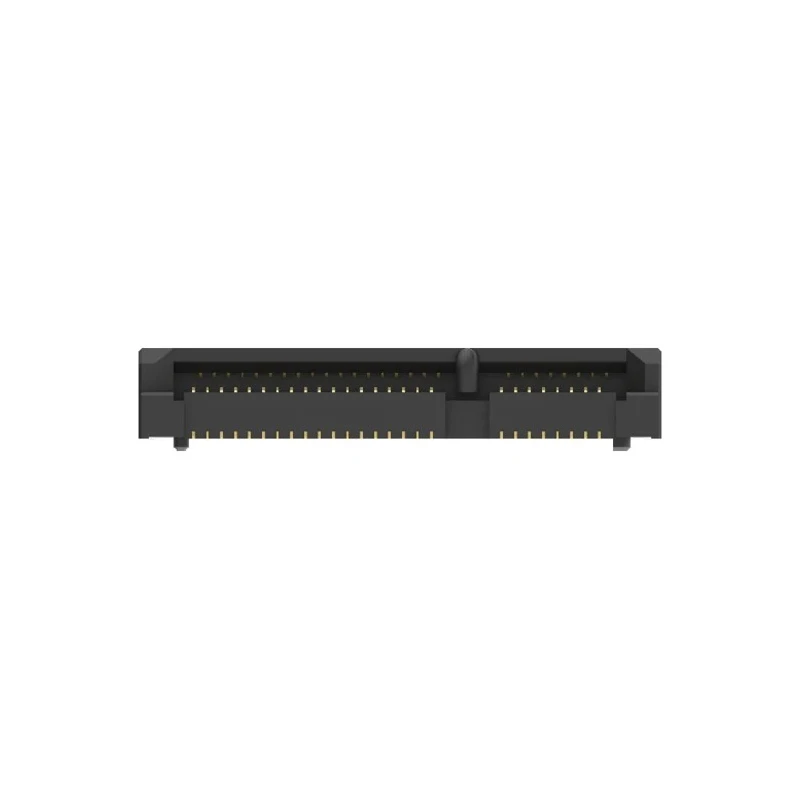

TE Connectivity Right Angle Edge Connector Female, Surface Mount, 52 Contacts, 0.8 mm Pitch, 2 Row 1775862-2
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | -55°C |
| Minimum Operating Temperature | -85°C |
| Number of Rows | 2 |
| Pitch | 0.8mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold Flash |
| Number of Contacts | 52 |
| Contact Gender | Male |
| Connector Gender | Female |
| Card Type | PCI |
Key Features
- Female edge connector designed for printed circuit boards.
- Right angle orientation for convenient board-to-board mounting.
- Features 52 contacts with a 0.8 mm pitch across 2 rows.
- Surface mount technology supports automated assembly.
- Copper alloy contacts with gold flash plating offer reliable conductivity.
- Thermoplastic housing ensures robust insulation and durability.
- RoHS compliant for environmentally friendly manufacturing.
- Operates in temperatures ranging from -85°C to -55°C.
Product Description
TE Connectivity presents the 1775862-2 Right Angle Edge Connector Female, engineered for secure and reliable board-to-board connections in electronic assemblies and printed circuit boards. This connector features 52 contacts arranged in 2 rows, optimized with a fine 0.8 mm pitch to support contemporary PCB layouts and high-density signal transmission.
The connector's right angle configuration streamlines integration into surface mount designs, allowing for automated placement onto PCBs. Its female design provides dependable engagement with the edge of PCI cards and other boards, ensuring robust electrical interfacing.
Female edge connector with right angle orientation for versatile assembly. 52 contacts in 2 rows, supporting complex circuit layouts. Surface mount termination facilitates efficient automated manufacturing. Copper alloy contacts plated with gold flash enhance conductivity and minimize signal loss.
Thermoplastic housing offers high insulation and support in demanding environments. Keying way prevents misalignment during installation. RoHS compliant, suitable for industrial and commercial electronics. Wide operating temperature range from -85°C to -55°C, ideal for industrial, manufacturing, or laboratory setups.
Designed for use in PCI card edge applications, this connector is well-suited for industrial electronics, laboratory equipment, telecommunications, and computing hardware. Its advanced materials and high contact count make it a reliable choice for designers seeking efficient, space-saving connectors for complex circuit boards.
Discover more TE Connectivity connectors and complementary solutions in the Edge Connector category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this edge connector have a pitch of 0.8 mm.
This model features a total of 52 contacts arranged in 2 rows.
It supports surface mount technology, facilitating automated assembly onto printed circuit boards.
The connector operates within a temperature range of -85°C to -55°C.
The housing is made from thermoplastic, while the contacts are made of copper alloy with gold flash plating.
This connector has a current rating of 500 mA.
This connector is a female edge connector, designed for engagement with male contacts on PCI cards.
Yes, this edge connector is RoHS compliant, ensuring it meets environmental standards for manufacturing.
It is suitable for use in PCI card edge applications, industrial electronics, laboratory equipment, telecommunications, and computing hardware.
The connector features a keying way that prevents misalignment during installation.
This model has a right angle orientation, which allows for convenient board-to-board mounting.
The gold flash plating on the copper alloy contacts enhances conductivity and minimizes signal loss.
