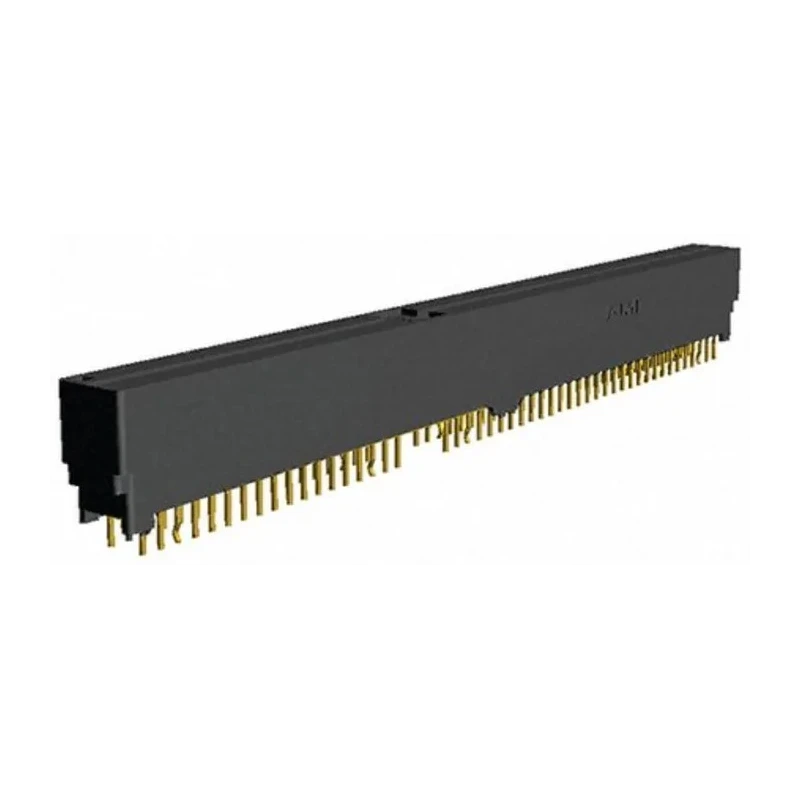

TE Connectivity CONN SEC II Series Straight Edge Connector Female Through Hole 98-Contacts 2.54 mm Pitch 2 Row 5645169-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV ac |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | CONN SEC II |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 98 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | Dual Edge |
Key Features
- Features a straight orientation with a 2-row dual edge card type design.
- Supports up to 3A current with a voltage rating of 1kV AC.
- Contact pins are made of phosphor bronze with gold over nickel plating for strength and electrical reliability.
- Mounts via through hole termination with solder type connections.
- Operates in temperatures ranging from -55°C to 85°C for wide application use.
- Includes intercontact keying slots to ensure correct card orientation and mating.
- Housing is constructed from durable polyethylene terephthalate (PET) material.
Product Description
TE Connectivity 5645169-2 CONN SEC II Series Straight Edge Connector Female Through Hole with 98 Contacts and 2.54 mm Pitch is engineered to deliver high reliability and economical solution for electronic device interconnections.
This edge connector is designed to interface daughter cards to motherboards and employs a dual edge card type with 2 rows of contacts that provide stable and secure electrical connections.
The contacts utilize a bifurcated cantilever design, crafted from selectively gold plated phosphor bronze to offer durability and minimize signal loss.
Keying slots incorporated into the connector ensure accurate orientation during assembly, allowing use in high volume industrial manufacturing environments and reducing assembly errors.
With a straight orientation and through hole solder mount type, this component can be securely fixed onto printed circuit boards making it suitable for applications such as DC-DC converters, low wattage power supplies, industrial-grade card extenders, and general I/O interfaces requiring durable and rugged contacts.
The connector’s operating temperature range from -55°C to 85°C makes it suitable for harsh environment applications, while the 1kV AC voltage rating ensures its reliability in moderate power electronics scenarios.
Highly reliable and economical edge connector solution. Gold over nickel plated phosphor bronze contacts for enhanced conductivity and longevity. Keying features prevent mating errors in industrial assemblies. Durable polyethylene terephthalate housing material.
Suitable for use in industrial, laboratory, manufacturing, and commercial electronic applications requiring robust card edge connections. Set contains 1 Pc TE Connectivity CONN SEC II Series Straight Edge Connector Female Through Hole with 98 Contacts, 2.54 mm Pitch, 2 Row.
Discover a wide range of connectors and electronic components on EnvMart to optimize your electronic design and assembly processes.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a voltage rating of 1kV AC, making it suitable for moderate power electronics applications.
It supports a maximum current of 3A, which is suitable for various electronic applications.
This model operates within a temperature range of -55°C to 85°C, allowing it to function in harsh environments.
The contacts are made of phosphor bronze and feature gold over nickel plating for enhanced conductivity and reliability.
It is designed for through hole mounting with solder type connections, ensuring secure attachment to printed circuit boards.
The connector features 98 contacts arranged in a dual edge card type design with 2 rows.
It includes intercontact keying slots to ensure correct card orientation and mating during assembly.
The housing is constructed from durable polyethylene terephthalate (PET) material.
It is suitable for applications such as DC-DC converters, low wattage power supplies, and industrial-grade card extenders.
The pitch size of this connector is 2.54 mm, which is standard for many electronic connections.
Yes, it is designed for dual edge card types, providing stable and secure electrical connections.
The connector is manufactured in India, ensuring local production capabilities.
