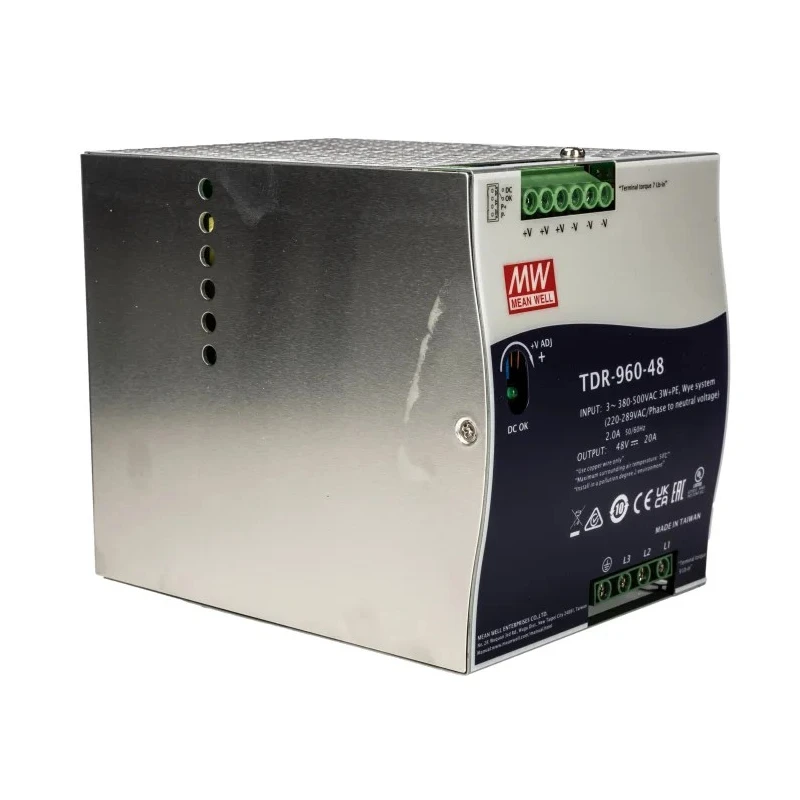

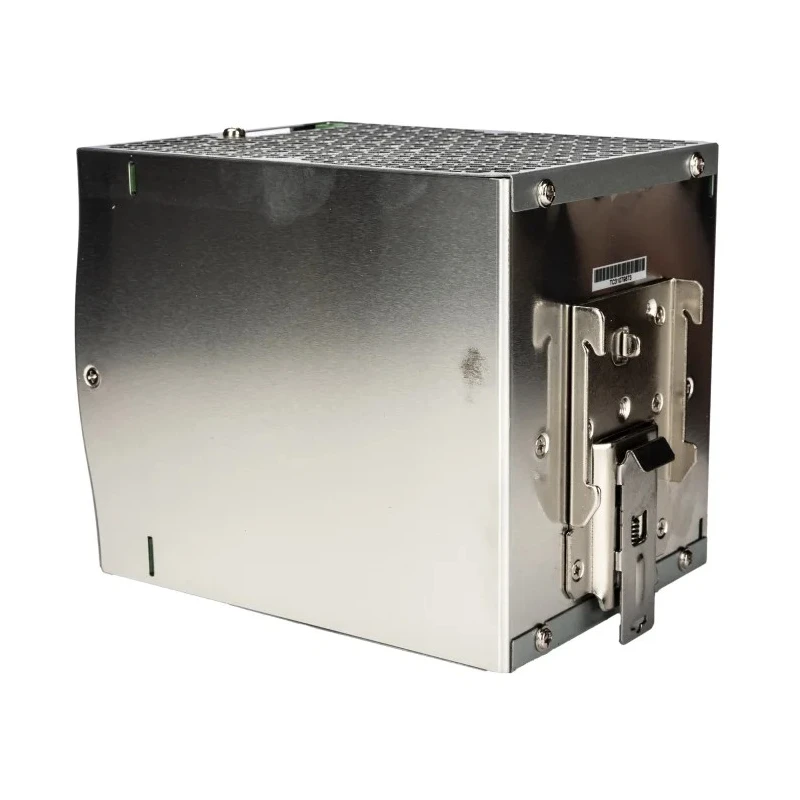

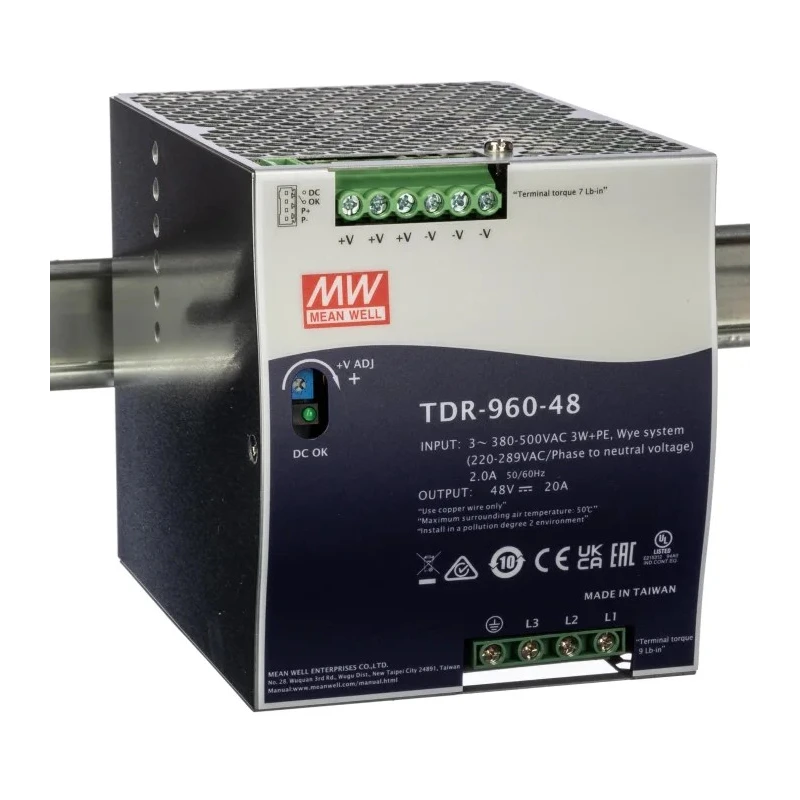

MEAN WELL TDR Switched Mode Single Output DIN Rail Power Supply 960W, 55V DC, 20A Output, 340-550V AC Input TDR-960-48
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Power | 960W |
| Efficiency | 85.5% |
| Height | 125mm |
| Model | TDR-960-48 |
| Depth | 150mm |
| Width | 110mm |
| Series | TDR |
| Output Current | 20A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 550V ac |
| Electrical Phase | 1 |
| Standards/Approvals | RoHS, TUV EN 609501, UL |
| Maximum Output Voltage | 55V dc |
| Minimum Input Voltage | 340V ac |
Key Features
- Single output providing 55V DC at 20 amps for stable power delivery.
- Wide AC input voltage range from 340V AC to 550V AC suitable for industrial three-phase power.
- Compact design with 110mm width, 125mm height, and 150mm depth for space-saving installations.
- Built-in protections including short circuit, overload, over voltage, and over temperature safeguards.
- Cooling by free air convection; installs easily on TS-35/7.5 or TS-35/15 DIN rails.
- High efficiency up to 85.5% to reduce power losses and heat dissipation.
- Compliance with RoHS, TUV EN 60950-1, and UL standards for safety and environmental regulation.
- Operating temperature range from -30°C to 70°C for reliable performance in harsh environments.
Product Description
MEAN WELL TDR-960-48 is a high-performance switched mode DIN rail power supply delivering 960 watts with a regulated 55V DC output and 20A output current. It features a robust design optimized for industrial control systems, factory automation, semiconductor fabrication equipment, and other electro-mechanical apparatus requiring reliable DC power.
Designed for three-phase input with a wide voltage range from 340V AC to 550V AC, the TDR series offers versatile installation on TS-35/7.5 or TS-35/15 mounting rails within compact enclosures to save cabinet space. The metal housing provides enhanced power dissipation, and cooling is efficiently managed by free air convection without the need for fans.
The power supply incorporates comprehensive protections against short circuit, overload, over voltage, and over temperature conditions, ensuring stable operation in demanding industrial environments. It complies with key safety and environmental standards, including RoHS, TUV EN 60950-1, and UL certifications, plus UL 508 approval for industrial control equipment. Active power factor correction (PFC) and current sharing capability up to 3840W (3+1 units) enhance performance and reduce energy consumption.
Single output 55V DC at 20A providing stable and continuous power. Wide AC input range (340-550V AC) suitable for three-phase power supply networks. Compact footprint with dimensions 110mm width, 125mm height, and 150mm depth.
Multiple built-in protections for reliable and safe operation. Efficient cooling by free air convection for maintenance-free use. Certified to RoHS, TUV EN 60950-1, and UL standards to ensure compliance and safety. Industrial immunity compliant to EN61000-6-2 for robust noise immunity.
Suitable for industrial automation, semiconductor manufacturing, and electro-mechanical applications.
This Mean Well TDR power supply is a dependable solution for industrial control systems requiring high power density, reliability, and energy efficiency. Its space-saving design and broad input voltage tolerance facilitate flexible installation and operation under varied power conditions.
Explore more products and solutions in the Power Supplies category at EnvMart to meet your industrial and electronic power requirements.
Explore more products in our DIN Rail Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a regulated output voltage of 55V DC and an output current of 20A.
The input voltage range is from 340V AC to 550V AC, suitable for three-phase power supply networks.
The dimensions are 110mm in width, 125mm in height, and 150mm in depth.
It has an efficiency rating of up to 85.5%, which helps reduce power losses and heat dissipation.
This power supply includes protections against short circuit, overload, over voltage, and over temperature conditions.
Cooling is managed by free air convection, eliminating the need for fans and ensuring maintenance-free operation.
It complies with RoHS, TUV EN 60950-1, and UL standards, ensuring safety and environmental regulation compliance.
It installs easily on TS-35/7.5 or TS-35/15 DIN rails, making it suitable for compact enclosures.
The maximum output power is 960W, providing stable and continuous power delivery for various applications.
It is suitable for industrial control systems, factory automation, semiconductor fabrication equipment, and other electro-mechanical applications.
The country of origin for the TDR-960-48 is India.
