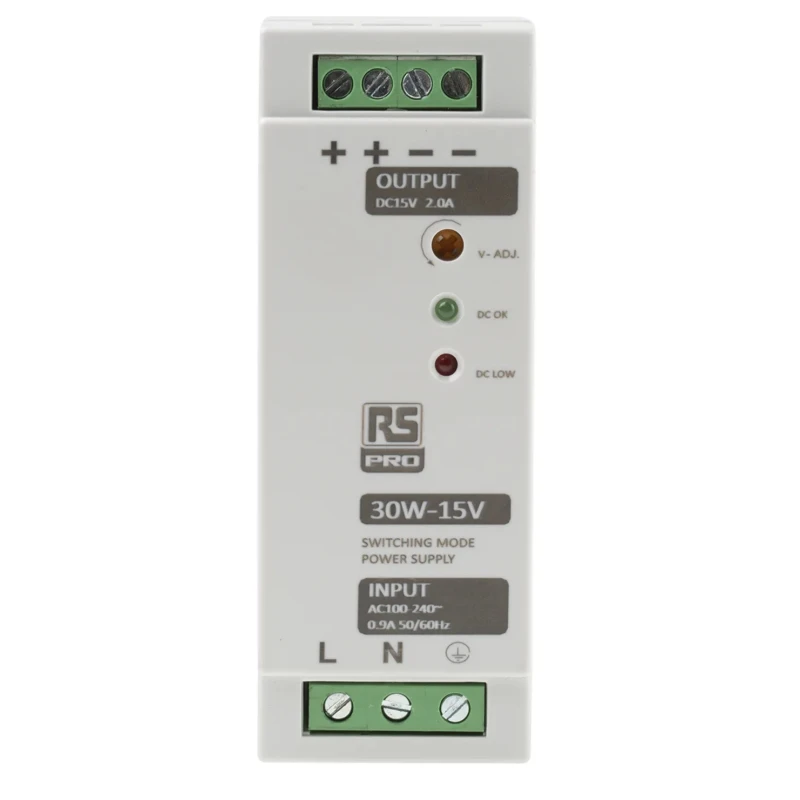

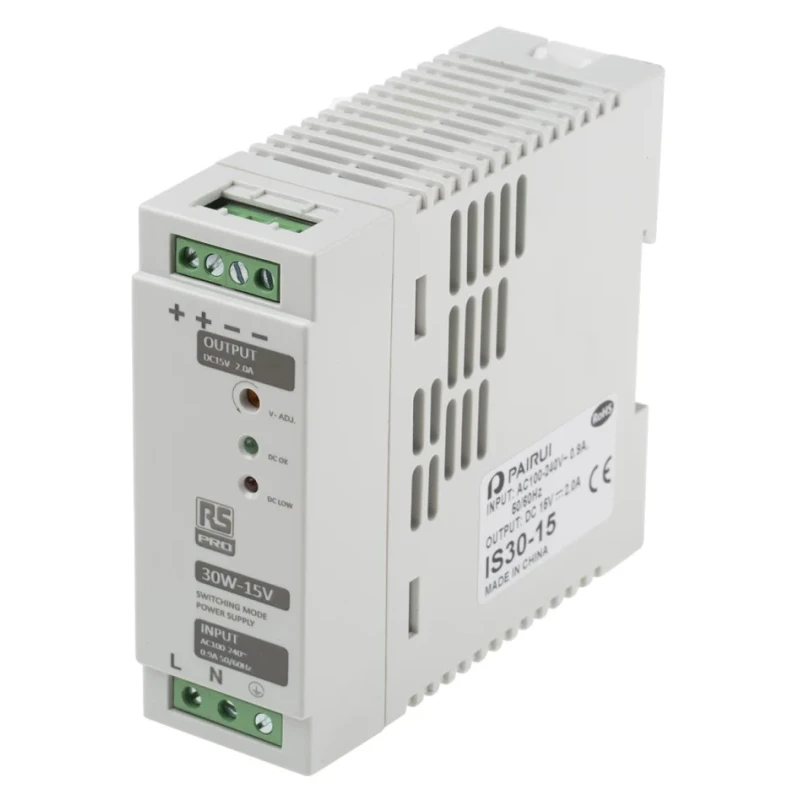

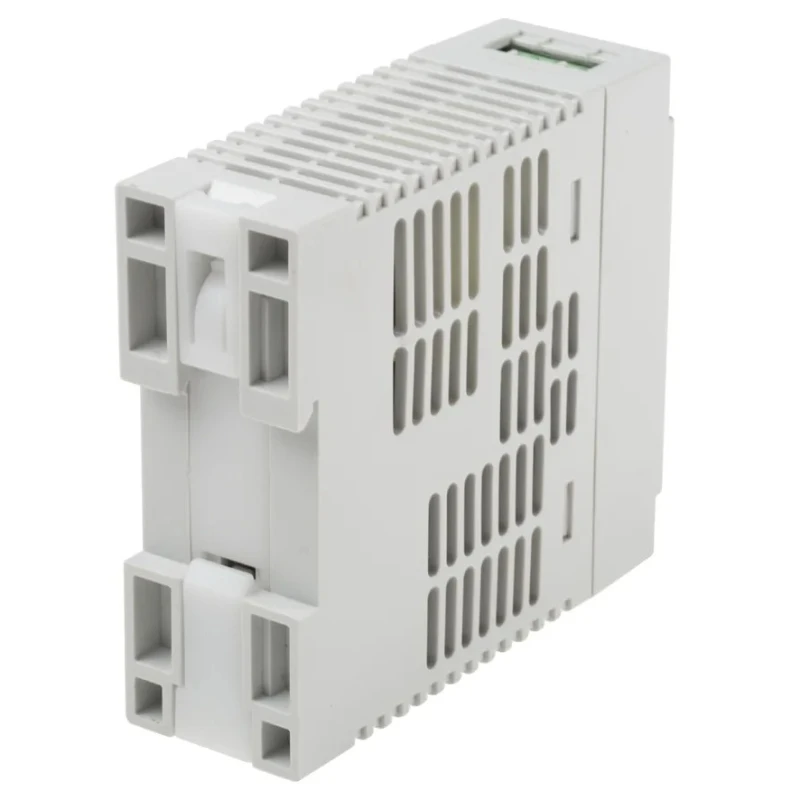

RS PRO Switched Mode DIN Rail Power Supply 264V AC Input 15V DC Output 2A 30W 136-8306
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Power | 30W |
| Height | 95mm |
| Model | 136-8306 |
| Depth | 108mm |
| Width | 36mm |
| Output Current | 2A |
| Maximum Operating Temperature | 70°C |
| Sub Type | Switched Mode |
| Minimum Operating Temperature | -25°C |
| Number of outputs | 1 |
| Maximum Input Voltage | 264V ac |
| Electrical Phase | 1 |
| Maximum Output Voltage | 15V dc |
| Minimum Input Voltage | 90V ac |
Key Features
- This DIN rail power supply features a compact 35mm mounting package for efficient installation.
- It provides safe and reliable power conversion with single-phase input and regulated DC output.
- Operating temperature range from -25°C to 70°C allows use in varied industrial environments.
- Protection measures include short circuit, over voltage, over current, and over temperature safeguards.
- LED indicators display DC power on and low voltage status for easy system monitoring.
- Cooling is achieved through free air convection eliminating the need for fans.
- The product is ideal for industrial automation, factory process control, and transportation systems.
- It supports consistent and high performance with 100% full load burn-in testing for early failure detection.
Product Description
RS PRO 136-8306 is a switched mode DIN rail power supply designed for industrial and electronic applications requiring 15V DC power output with a 2A current capacity and 30W power rating. It operates from a wide AC input range of 90 to 264 volts, making it adaptable to various electrical systems worldwide. Its compact 35mm DIN rail mounting format saves space and simplifies installation in control panels and automation cabinets.
This power supply supports single-phase AC input and converts it to a stable DC output used to power sensors, relays, programmable logic controllers (PLCs), and other DC-operated equipment prevalent in industrial machinery, factory automation, traffic control, and communication infrastructure.
Key operational capabilities include a wide operating temperature range from -25°C to 70°C, ensuring dependable performance in harsh environments. It includes multiple protective features such as short circuit, over voltage, over current, and thermal protection to ensure operational safety and longevity.
Its cooling design relies on free air convection, which reduces mechanical failures associated with fans and lowers maintenance needs. LED indication for power-on and low-voltage alerts enhance operational visibility.
This DIN rail power supply has a compact 35mm mounting format suitable for efficient control panel assembly. The universal AC input voltage range from 90V to 264V supports global compatibility. It delivers a regulated 15V DC output at 2A to power various industrial control devices.
Built-in protections guard against electrical faults such as short circuits and overheating. Cooling through convection eliminates the need for active fan components, enhancing reliability. LED indicators provide useful status information for safe and convenient monitoring.
The device is tested with 100% full load burn-in for quality assurance and failure prevention. Ideal for automation, manufacturing equipment, transportation systems, and process control applications.
Choose RS PRO 136-8306 for a dependable power supply solution that supports efficient and safe energy conversion in demanding industrial environments. Explore more products in RS PRO’s range of DIN Rail Power Supplies at EnvMart for comprehensive industrial power solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a regulated output of 15V DC with a current capacity of 2A.
The input voltage range is from 90V AC to 264V AC, making it suitable for various electrical systems worldwide.
It includes short circuit, over voltage, over current, and thermal protection to ensure operational safety.
Cooling is achieved through free air convection, eliminating the need for fans and reducing maintenance needs.
It supports a compact 35mm DIN rail mounting format for efficient installation in control panels.
This model has one output.
It is suitable for industrial automation, factory process control, and transportation systems.
The power rating is 30W, which supports various industrial control devices.
The minimum operating temperature is -25°C, allowing it to operate in colder environments.
It operates on a single-phase electrical input.
