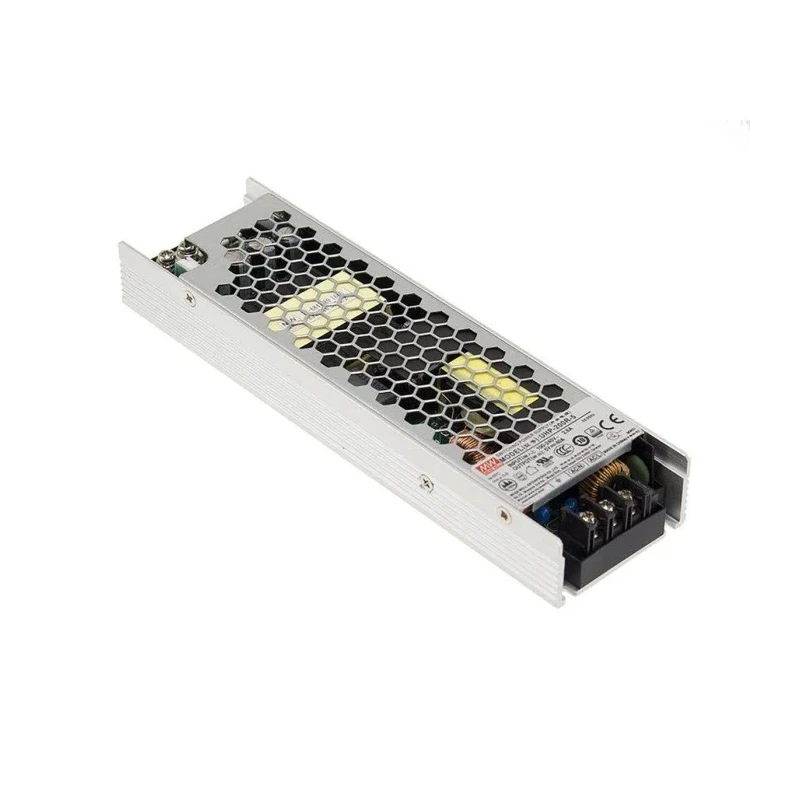

MEAN WELL Slim Switching Power Supply 36V DC, 201.6W, Chassis Mount, 1 Output, UHP-200-36

MEAN WELL UHP-200-36 is a slim, enclosed single output switching power supply engineered for modern industrial environments where compact form and reliable performance are pivotal. This model delivers a regulated 36V DC output at a maximum current of 5.6A, supporting demanding equipment loads with a rated power of 201.6W.

The ultra-low profile (26mm deep) chassis enables installation within restrictive panel spaces, making it ideal for integration into industrial automation machinery, electrical equipment, and sophisticated electronic apparatus. Its fanless convection cooling design not only extends operational lifespan but also maintains silent operation, which is critical for laboratory, control room, and commercial deployments.

Electrical and safety protections are comprehensive: the UHP-200-36 features built-in safeguards against short circuit, overload, over voltage, and over temperature, preserving connected devices and ensuring uninterrupted operation even under fluctuating loads. The unit withstands up to 300VAC surge input for 5 seconds, further boosting system safety against sudden line transients.

Performance is strongly supported by a high efficiency of 94%, minimizing energy loss and heat output. The wide operating temperature range (-30°C to 70°C) allows the power supply to function reliably in harsh environments or at altitude up to 5000 meters. Active power factor correction (PFC) increases compatibility with sensitive electronic equipment.

The UHP-200-36 includes a clear LED indicator for power on status, with options for redundant operation and DC OK active signal for monitoring and system integration. The chassis mount design and 1 output channel allow straightforward installation for industrial control systems, mechanical equipment, household appliance circuitry, and LED display applications.

Its robust construction adheres to multiple international standards and approvals, including CSA C22.2 No. 62368-1, EAC TP TC 00, UL 62368-1, TUV BS EN/EN 62368-1, BSMI CNS143361, IS 13252(Part1)/IEC 60950-1, AS/NZS62368.1, and CCCGB4943.1. Originating from China, this unit exemplifies MEAN WELL's quality assurance and reliability for professional power management needs.

For engineers, integrators, and OEMs seeking a reliable switching power supply with slim profile, efficient operation, and advanced safety features, MEAN WELL UHP-200-36 offers lasting performance across industrial and commercial projects.
