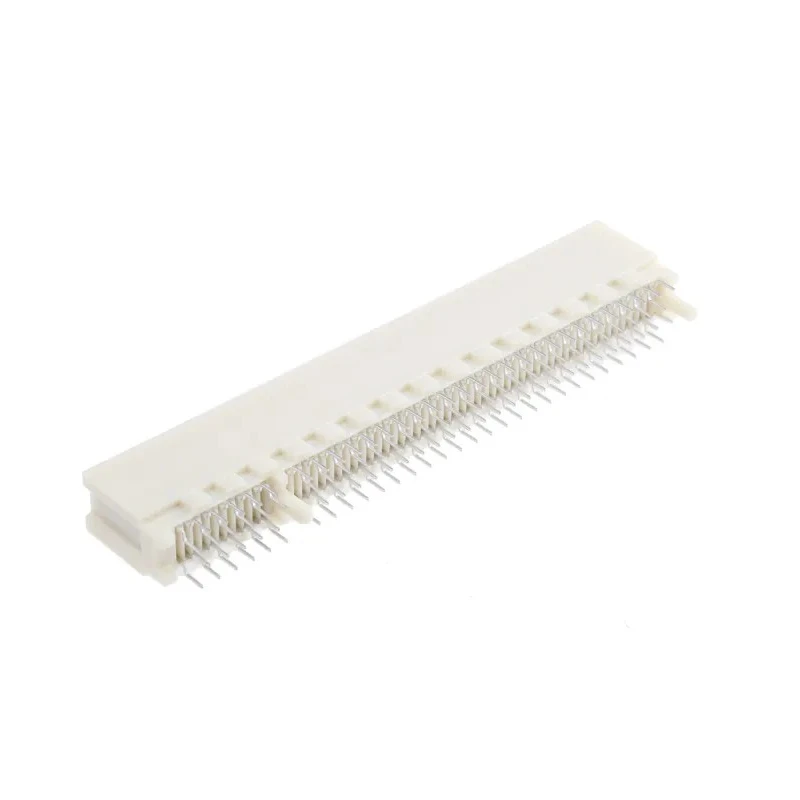

TE Connectivity PCI & PCIe Series Straight Edge Connector Through Hole 120-Contacts 1.27 mm Pitch 2 Row Solder 5145154-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 203V ac |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | PCI & PCIe |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 120 |
| Contact Gender | Female |
| Card Type | PCI |
Key Features
- Offers a reliable current rating of 1A suitable for PCI applications.
- Constructed with phosphor bronze contacts plated with gold over nickel for enhanced conductivity.
- Housing made from durable white thermoplastic ensuring stability and insulation.
- Operates efficiently within a temperature range of -55°C to 85°C.
- Designed with female contact gender and straight orientation for easy PCB mounting.
- Includes hold down pylons to aid PCB retention during assembly.
- Termination type is solder, ensuring strong electrical connections.
Product Description
TE Connectivity 5145154-4 PCI & PCIe Series Straight Edge Connector is designed for electronic and computing applications requiring PCI or PCIe card edge interfaces. This connector features a robust through-hole mounting type and a 120-contact configuration spaced at a precise 1.27 mm pitch across two rows, making it ideal for circuit boards with demanding interface requirements.
The contacts are made of phosphor bronze material with gold over nickel plating to provide excellent conductivity and corrosion resistance, ensuring long-term reliability. Encased in a durable white thermoplastic housing, this connector maintains structural integrity and electrical insulation in a wide range of operating temperatures from -55°C up to 85°C.
Designed with female contact gender and a straight orientation, this connector facilitates straightforward solder termination and assembly onto printed circuit boards (PCBs). The inclusion of hold down pylons assists in maintaining secure contact during manufacturing processes and in-service operation.
Operating at a rated voltage of 203V AC and a current of 1A, the connector complies with PCI & PCIe series specifications. It is optimized for use in industrial, commercial, and computing electronics where reliable edge card connections are imperative.
Reliable current rating of 1A suitable for PCI applications. Phosphor bronze contacts plated with gold over nickel for enhanced conductivity. Durable white thermoplastic housing ensuring structural and insulating performance.
Wide operating temperature range from -55°C to 85°C. Female contact gender and straight orientation for ease of solder termination. Voltage rating up to 203V AC compliant with PCI & PCIe standards. Hold down pylons aid secure PCB retention during assembly.
Solder termination type for stable electrical connections.
This PCI card Edge Connector is suitable for manufacturing, testing equipment, and computing hardware assembly, providing a precise and durable interface for high-density circuitry. Explore more TE Connectivity products or browse the Electronics Components category on EnvMart for complementary connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a reliable current rating of 1A, making it suitable for PCI applications.
The connector operates at a voltage rating of 203V AC, compliant with PCI & PCIe specifications.
The contacts are made of phosphor bronze and are plated with gold over nickel to enhance conductivity and corrosion resistance.
This model features a 1.27 mm pitch and has 120 contacts arranged in two rows.
It operates efficiently within a temperature range of -55°C to 85°C.
This edge connector uses a through-hole mounting type for easy PCB assembly.
The connector is designed with a straight orientation, facilitating straightforward solder termination.
It features a solder termination type, ensuring strong electrical connections.
Yes, it includes hold down pylons that aid in securing PCB retention during assembly.
This model has female contact gender, which is standard for PCI applications.
The country of origin for this connector is India.
It is designed for electronic and computing applications requiring PCI or PCIe card edge interfaces.
