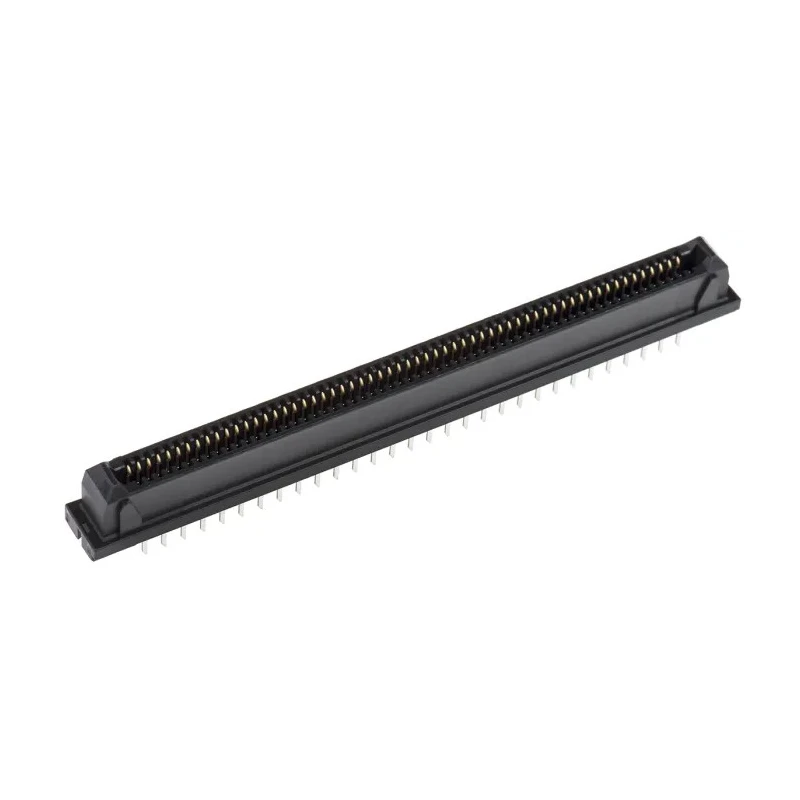

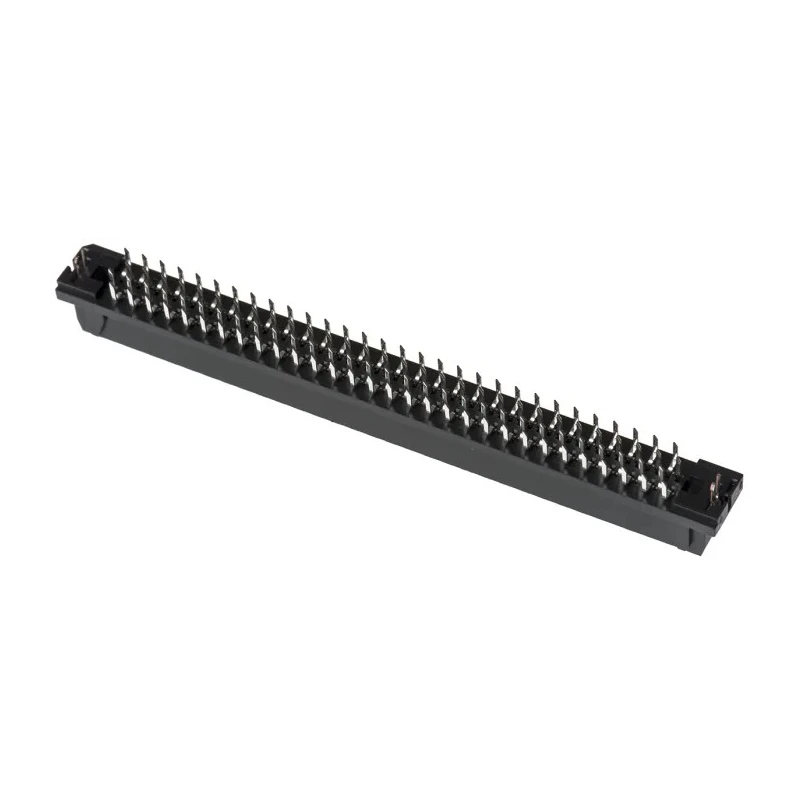

JAE Edge Connector, Female, 120 Contacts, 1.27 mm Pitch, Through Hole, Gold Plated, Straight TX24

Free Delivery in India | Lowest Global Shipping Charges

JAE Edge Connector, Female, 120 Contacts, 1.27 mm Pitch, Through Hole, Gold Plated, Straight TX24



Category Edge Connector Brand JAE Condition New

Specifications

Country of Origin	India
Voltage	250V ac
Brand	JAE
Orientation	Straight
Current	1A
Model	TX24
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	TX24
Termination Type	Solder
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	1.27mm
Standards/Approvals	None Stated
Contact Plating	Gold over Nickel
Number of Contacts	120
Contact Gender	Female
Connector Gender	Female
Card Type	Edge
Card Thickness	1.6mm

Key Features

120-contact female connector with high-density 1.27 mm pitch.
Straight, through-hole mounting enhances board stability.
Copper alloy contacts with gold over nickel plating resist corrosion.
Rated for 1A current and 250V AC operation.
Suitable for 1.6 mm card thickness and 2-row configurations.
Polybutylene terephthalate housing ensures mechanical durability.
Reliable mating and unmating with polarizing key design.

Product Description

The JAE TX24-120R-6ST-H1E is a high-performance straight edge connector engineered for professional electronic assemblies where reliable, high-density interconnections are essential. It utilizes 120 female contacts in a 2-row arrangement with a compact 1.27 mm pitch, making it suitable for applications where board space and robust electrical engagement are critical.

This connector is designed for through hole mounting, offering mechanical durability and a secure interface to printed circuit boards. Its contacts are fabricated from copper alloy and feature a gold over nickel plating, optimizing both electrical conductivity and resistance to corrosion over extensive use.

The TX24-120R-6ST-H1E supports a current rating of 1A per contact and a voltage rating up to 250V AC, allowing usage in a wide range of industrial, computing, and control equipment. The connector maintains a reliable connection under repeated mating cycles thanks to its long engagement length and stable housing structure, which incorporates polarizing keys to prevent misalignment during installation - particularly advantageous in rack and panel systems.

Durability is further enhanced by the housing made from polybutylene terephthalate, a material known for its toughness and insulation properties. The unit supports card thicknesses up to 1.6 mm and features solder termination for robust and low-resistance electrical joints.

Operating reliably between -40°C and 80°C, this connector is suited to both industrial and laboratory environments, where temperature fluctuations and regular handling occur. Typical use cases include industrial computers, test equipment, modular electronic assemblies, and commercial rack systems requiring stable, high-density board-to-board connections.

With its combination of high contact count, robust structure, and quality plating materials, the JAE TX24-120R-6ST-H1E serves engineers and technicians seeking dependable PCB interconnects for critical applications.
