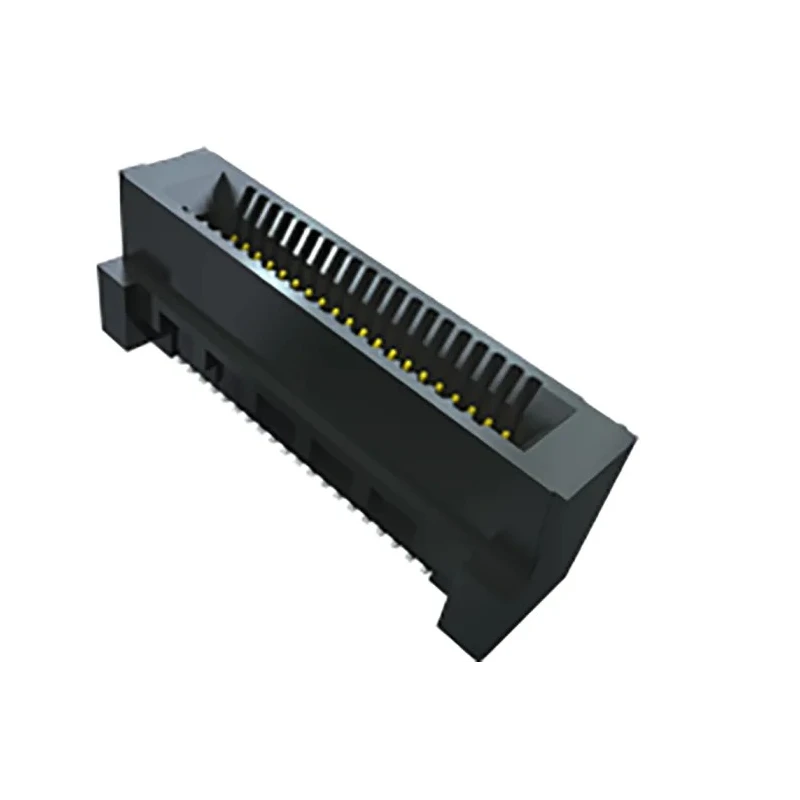

Samtec Vertical Edge Connector Female, Surface Mount, 20 Contacts, 0.8 mm Pitch, 2 Rows, Solder Termination HSEC8-DV

Samtec HSEC8-DV series vertical edge connector female is a high-speed edge card socket connector designed for electronic and industrial applications requiring reliable, compact, and high-performance connectors. With 20 contacts arranged in 2 rows and a 0.8 mm pitch, this surface mount connector provides excellent signal integrity and mechanical reliability for electronic assemblies.

The connector features gold-plated beryllium copper alloy contacts that guarantee strong electrical conductivity and durability over extended operation cycles. Its liquid crystal polymer housing enhances thermal stability and mechanical robustness, enabling operation in temperature ranges from -55°C to 125°C.

Rated at 2.8A current and 240V, it supports demanding electronics power requirements. The connector is optimized for PCI Express® 3.0, 4.0, and 5.0 standards to support high speed data transfer with Edge Rate® contacts for enhanced signal integrity and cycle life longevity.

The 1.6 mm card thickness compatibility allows seamless integration with common edge cards. Termination is by solder, suitable for surface mounting processes in PCB assembly. The compact length of approximately 12.6 mm enables space-saving designs.

Applications of this connector span industrial automation, telecommunications, computing, and other electronics manufacturing where high-density reliable connections are critical. The connector features a vertical orientation with 2 rows of contacts for compact installation.

Gold plated beryllium copper alloy contacts ensure reliable electrical conductivity. Designed for surface mount applications with solder termination type. Supports maximum operating temperature up to 125°C and minimum of -55°C.

Rated for 2.8A current and a voltage of 240V suitable for demanding electronic circuits. Housing is made of durable liquid crystal polymer material for reliability. Edge card thickness supported is 1.6 mm ensuring compatibility with standard cards.

Optimized for PCI Express 3.0, 4.0, and 5.0 with advanced signal integrity features. Product is made in the United States ensuring high manufacturing standards.

This high-quality edge connector from Samtec offers long-term durability and industrial-grade performance applicable to manufacturing, electronics testing, and high-speed data processing equipment. It complements various electronic component assemblies where precise and secure edge card connections are required.

Explore the extensive range of Edge Connectors and electronic components available on EnvMart to find the most suitable connector for your industrial or laboratory needs.
