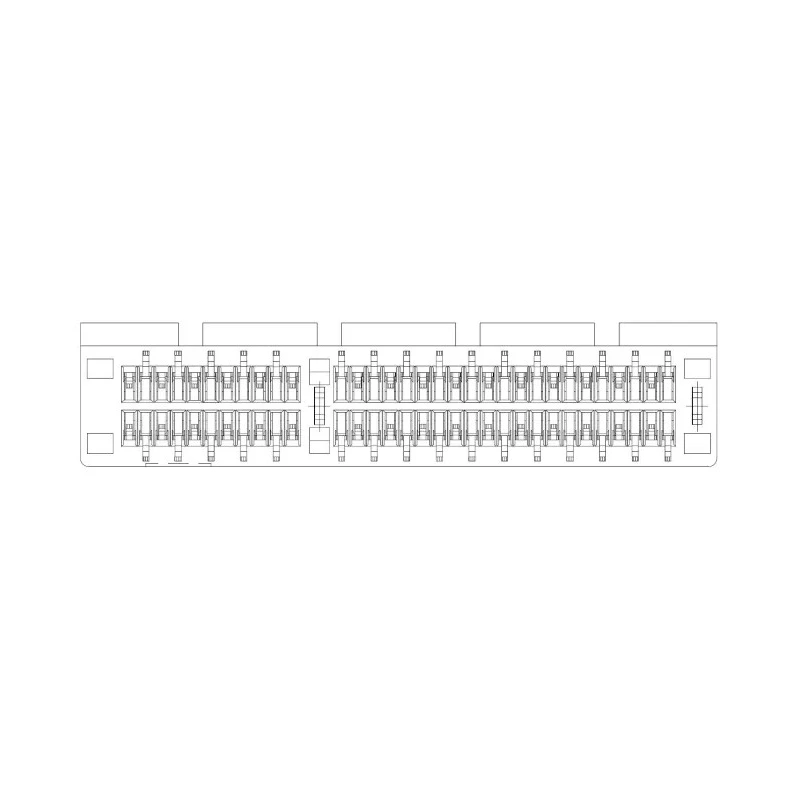

Amphenol Communications Solutions Vertical Edge Connector, Male, Through Hole, 64 Contacts, 1 mm Pitch 10018784-10201TLF

The Amphenol Communications Solutions 10018784-10201TLF is a high-quality vertical edge connector designed primarily for PCI Express (PCIe) card applications, offering a reliable interface between circuit boards and expansion modules. With 64 male contacts arranged at a fine 1 mm pitch, this connector is ideal for applications demanding high signal density and robust, low-profile, through-hole mounting.

This edge connector features a secure through-hole mounting system, significantly enhancing board retention and mechanical stability during and after assembly. The gold over nickel plating on copper alloy contacts ensures outstanding conductivity, corrosion resistance, and long-term performance in critical electronic systems.

The connector’s housing is constructed from high-temperature thermoplastic, providing excellent durability, solder reflow compatibility, and resilience against elevated operating temperatures up to 105°C. The solder termination style enables dependable, vibration-resistant PCB attachment, making it suitable for environments typical in servers, workstations, network equipment, and industrial computers where reliable high-speed data transfer is essential.

Engineered to accommodate up to 1.1 A per contact, this connector is optimized for high-bandwidth applications within PCIe infrastructures, ensuring both power and signal integrity for demanding computing tasks. It supports vertical board-to-board or board-to-module connections, facilitating efficient and space-saving circuit layouts.

Vertical orientation for straightforward top-down insertion of PCIe cards or modules. Male contact design compatible with a wide range of board layouts. Gold-plated contacts for low resistance and maximum reliability. 1 mm pitch suited to modern high-density circuit board architectures.

Robust solder termination for secure PCB integration. Manufactured to strict RoHS standards for environmental assurance. Withstands continuous operation in elevated temperature environments. Designed for use in desktop PCs, servers, workstations, and networking equipment.

Typical industrial applications include electronic computer hardware, industrial automation, telecommunications equipment, and embedded system interface boards. This connector is a dependable solution wherever compact, reliable PCIe edge connectivity is required for today’s high-performance electronic systems.

Discover more high-quality edge connectors and compatible components from Amphenol Communications Solutions by exploring the Edge Connector category on EnvMart.
