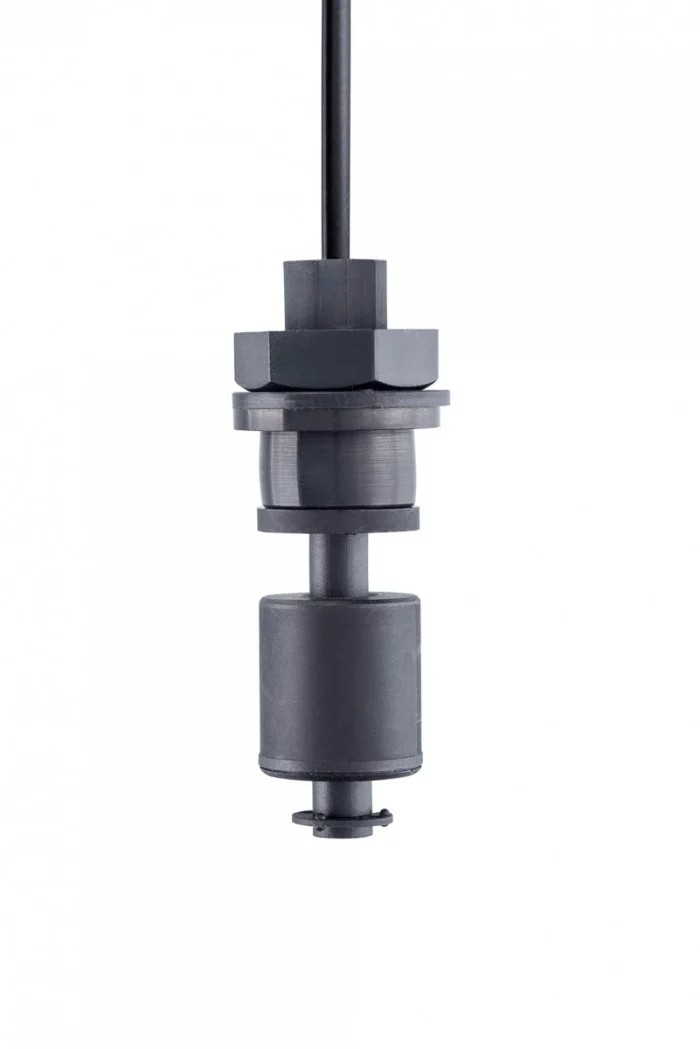

RS PRO External Vertical Nitrile Rubber (NBR) Float Switch, Nylon Housing, 1 m Cable, NO/NC, 240 V AC Max, 120 V DC 191-9495

Free Delivery in India | Lowest Global Shipping Charges

RS PRO External Vertical Nitrile Rubber (NBR) Float Switch, Nylon Housing, 1 m Cable, NO/NC, 240 V AC Max, 120 V DC 191-9495

Name: RS PRO External Vertical Nitrile Rubber (NBR) Float Switch, Nylon Housing, 1 m Cable, NO/NC, 240 V AC Max, 120 V DC 191-9495
Brand: RS PRO
SKU: 159712
Price: 30.48 USD
Availability: InStock



Category Float Switch Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Model	191-9495
Cable Length	1m
Mount Type	External, Vertical
Housing Material	Nylon
Series	RS PRO
Maximum Operating Temperature	75°C
Switch output	NO/NC
Minimum Operating Temperature	-20°C
Maximum Current	600mA
Maximum dc Voltage	120V dc
Maximum AC Voltage	240V ac
Gasket Material	Nitrile Rubber (NBR)

Key Features

Robust nylon housing protects internal components from damage and rust.
Includes a 1 m cable with PVC insulation for electrical safety.
Provides normally-open and normally-closed switch outputs for flexible use.
Maximum current rating of 600 mA suited for various industrial controls.
Operates between -20°C and 75°C temperature range without performance loss.
Designed for external vertical mounting suitable for hazardous liquid level monitoring.
Nitrile rubber gasket ensures chemical resistance and effective sealing.
Compact design enables use in limited space environments.

Product Description

RS PRO 191-9495 External Vertical Float Switch is engineered with a robust nylon housing and nitrile rubber (NBR) gasket, providing long service life and resistance to physical impacts and corrosive liquids. The switch comes with a 1-metre PVC-jacketed cable, ensuring safe and reliable electrical insulation during operation.

This float switch supports normally-open (NO) and normally-closed (NC) outputs, providing flexible integration options for automated liquid level detection in tanks and containers. It supports a maximum AC voltage of 240 V and DC voltage of 120 V with a current rating up to 600 mA, making it suitable for industrial automation and control gear.

Its external vertical mounting configuration is ideal for applications such as monitoring oil levels in gearboxes, diesel generators, and hydraulic oil tanks, particularly where hazardous substances require cautious handling.

The operating temperature range of -20°C to +75°C allows for use in diverse environmental conditions without compromising functionality or durability.

The compact design enables installation in constrained spaces without sacrificing performance. The choice of nitrile rubber for the gasket enhances chemical resistance and sealing capabilities, ensuring reliable operation in challenging industrial environments.

Durable nylon housing prevents rust and withstands physical shocks. 1 m PVC insulated cable included for easy installation. Switch output options: NO/NC for versatile control system integration. Maximum AC voltage: 240 V; maximum DC voltage: 120 V.

Rated for maximum current of 600 mA. Operating temperature range: -20°C to 75°C for broad application suitability. External vertical mounting ideal for liquid level sensing in hazardous material tanks. Nitrile rubber gasket provides strong chemical resistance and sealing.

This float switch is widely applicable for industrial, automation, electrical, and control gear systems, supporting reliable liquid level monitoring for safety and process efficiency. Explore more quality sensors and Float Switches in the RS PRO category on EnvMart.
