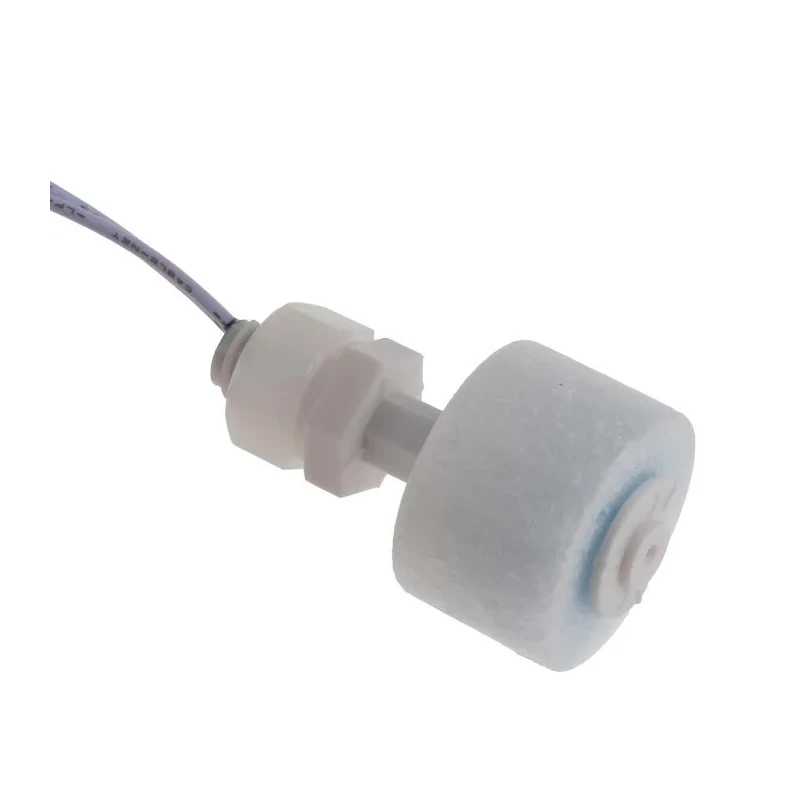

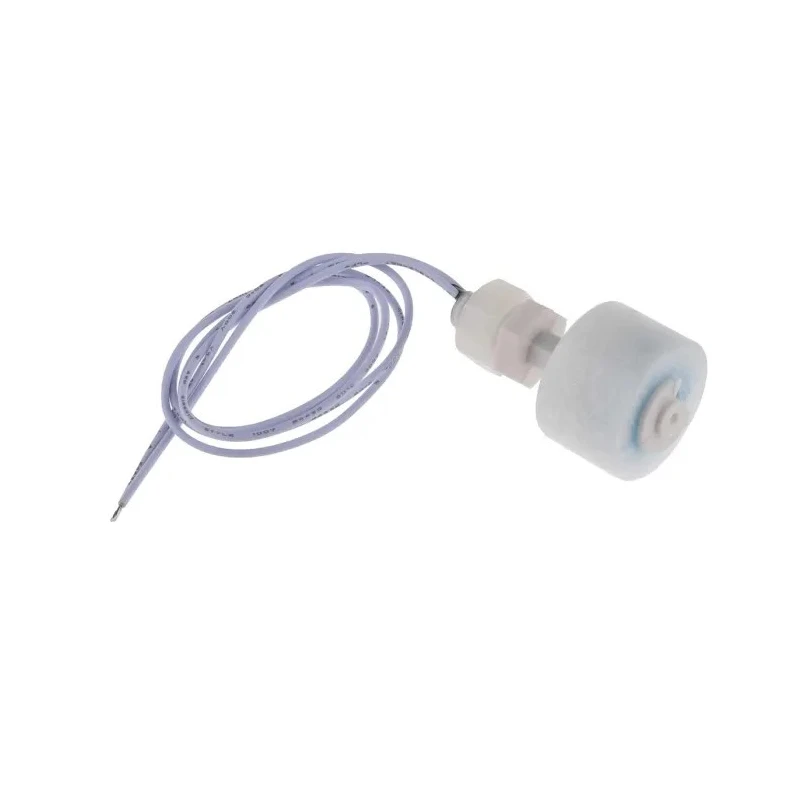

RS PRO Vertical Silicone Float Switch, 300 mm Cable, Direct Load, 140 V AC Max, 200 V DC Max 519-242
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 519-242 |
| Cable Length | 300mm |
| Mount Type | Vertical |
| Housing Material | Polypropylene |
| Maximum Operating Temperature | 80°C |
| Maximum Pressure | 1bar |
| Switch output | Direct Load |
| Minimum Operating Temperature | -20°C |
| Maximum Current | 1.2A |
| Maximum dc Voltage | 200V dc |
| Standards/Approvals | FDA |
| Maximum AC Voltage | 140V ac |
| Gasket Material | Silicone |
Key Features
- Constructed with a durable polypropylene housing suitable for a wide range of applications.
- Operates effectively within a temperature range of -20°C to 80°C.
- Equipped with a silicone gasket ensuring water-resistant sealing and food contact safety.
- Mountable vertically from the top or bottom of tanks with reversible operation based on orientation.
- Fitted with 300 mm UL 1007, AWG 24 cable leads for secure electrical connection.
- Designed for use in water dispensers, vending machines, coffee machines, and printing machine liquid monitoring.
- Rated for maximum current of 1.2 A and withstands pressures up to 1 bar.
- Complies with FDA standards and provides IP67 rated protection against dust and moisture.
Product Description
RS PRO 519-242 Vertical Silicone Float Switch is a miniature float switch designed for precise liquid level sensing and control in industrial and commercial environments. Featuring a robust polypropylene housing, this switch offers excellent chemical resistance and durability, making it suitable for applications requiring food safety standards.
This float switch operates with a direct load output, capable of handling a maximum AC voltage of 140 V and a maximum DC voltage of 200 V. It supports a maximum current of 1.2 A and pressure resistance up to 1 bar, ensuring reliable performance under moderate industrial conditions.

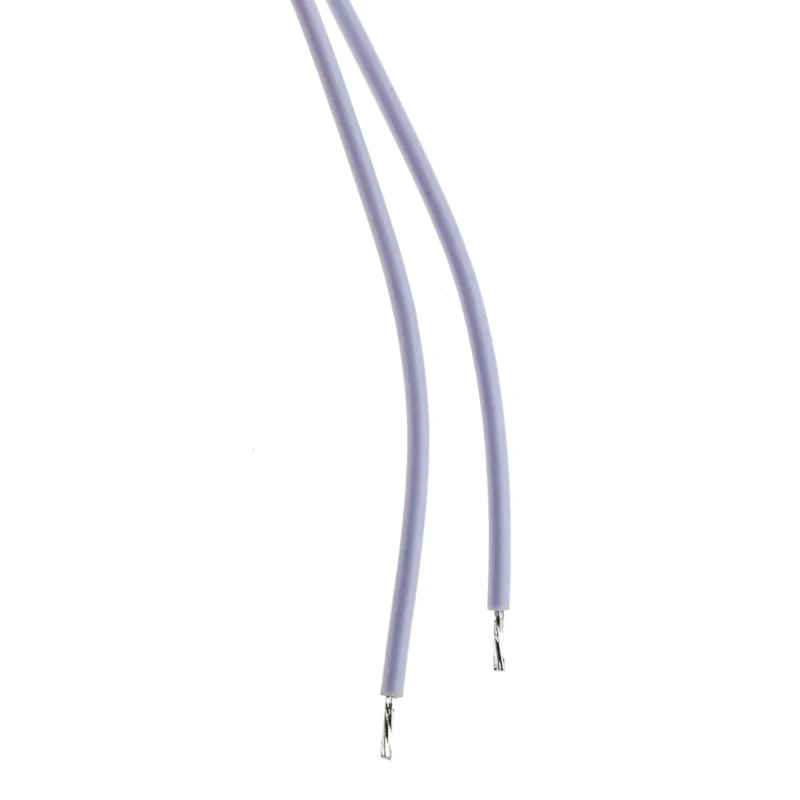

The device includes a 300 mm long cable with UL 1007, AWG 24 leads, facilitating straightforward electrical integration. It is designed for vertical mounting, with the ability to install at the top or bottom of tanks; the switch action reverses when mounted stem-upwards.
The operating temperature range extends from -20°C to 80°C, supporting diverse environments. A silicone gasket is used to provide sealing and ensure suitability for food-contact applications while the overall build conforms to the IP67 rating, protecting against dust ingress and water immersion.
Durable polypropylene housing for long service life. Vertical mounting versatility with reversible operation. 300 mm cable with UL certification and 24 AWG wire gauge. Rated for 140 V AC and 200 V DC operations, with 1.2 A max current.
Temperature operational range between -20°C and 80°C. Water and dust resistant with an IP67 rating. FDA compliant for food safety applications.
Ideal for liquid level sensing in water dispensers, vending machines, coffee machines, printing machines, and similar industrial setups. This RS PRO float switch provides precise liquid detection to optimize operational efficiency and safety.
Explore more high-quality Float Switches and sensors in the Electronics & Electricals category at EnvMart, where reliability and technical precision meet user needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This float switch can handle a maximum AC voltage of 140 V and a maximum DC voltage of 200 V.
It operates effectively within a temperature range of -20°C to 80°C.
The maximum current rating for this float switch is 1.2 A.
This float switch is designed for vertical mounting and can be installed at the top or bottom of tanks.
The housing is made of polypropylene, and it includes a silicone gasket for water-resistant sealing.
The float switch comes with a 300 mm long cable.
It can withstand pressures up to 1 bar.
It is designed for use in water dispensers, vending machines, coffee machines, and printing machine liquid monitoring.
This model has an IP67 rating, providing protection against dust and moisture.
Yes, it complies with FDA standards for food safety applications.
It features a direct load output.
The float switch is manufactured in China.
