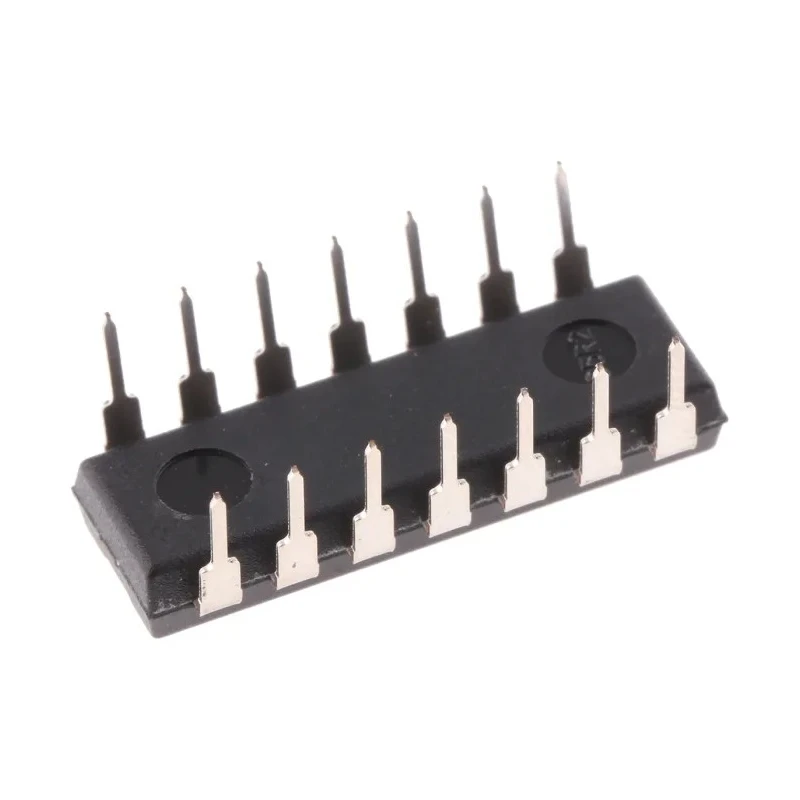

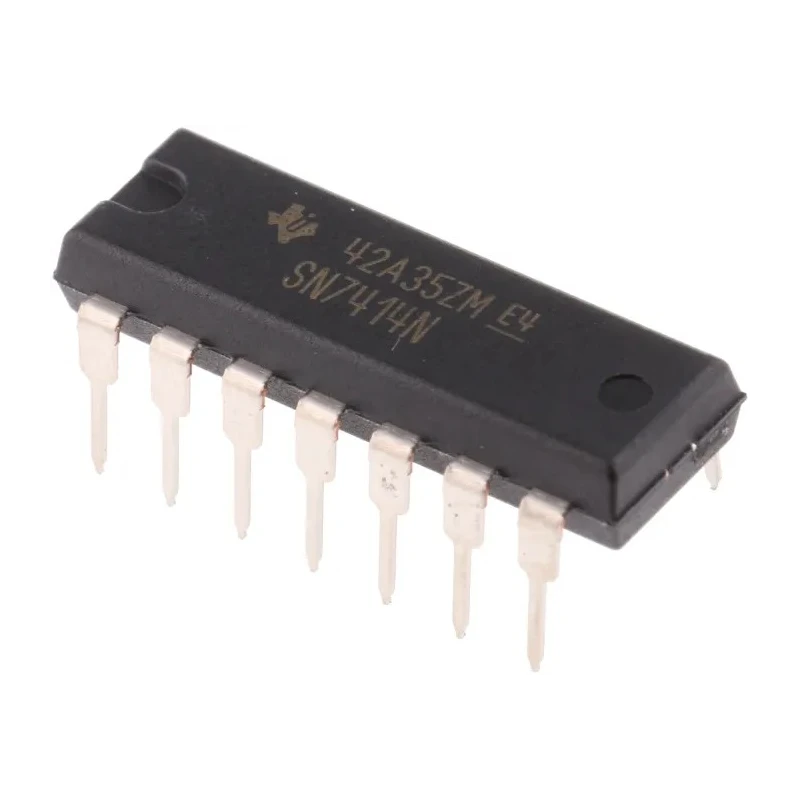

Texas Instruments Schmitt Trigger Input Inverter 6 Elements 14-Pin PDIP SN7414N

Texas Instruments SN7414N is a robust Schmitt Trigger Input inverter integrated circuit that features 6 inverter elements within a 14-pin PDIP package. It operates on a standard TTL 74 logic family platform with a supply voltage range of 4.75 to 5.25 volts. This makes it suitable for a variety of digital and logic control applications in industrial, laboratory, and manufacturing electronics systems.

The device is designed for reliable and fast logic signal processing, offering a maximum propagation delay of 22 nanoseconds. Its Schmitt Trigger input provides enhanced noise immunity and signal conditioning, ensuring precise and stable output signals even in electrically noisy environments.

Mounted through-hole, the SN7414N IC supports ease of integration on printed circuit boards and offers a durable PDIP package with dimensions of 19.3 mm length, 6.35 mm width, and 4.57 mm height. Operating temperature range from 0°C to 70°C allows deployment in standard industrial ambient conditions.

With output currents of -0.8 mA (high level) and 16 mA (low level), this inverter IC suits various control system applications requiring dependable logic inversion and triggering. It conforms to no specific automotive standards but carries the trusted Texas Instruments brand legacy of quality semiconductor components.

Features a Schmitt Trigger input for improved noise immunity and signal shaping. Includes 6 inverter elements per chip suitable for various digital applications. Operates within a supply voltage range of 4.75 to 5.25 volts.

Maximum propagation delay time of 22 nanoseconds ensuring fast switching. Through-hole mount type in a durable 14-pin PDIP package. Logic family is standard TTL 74 series compatible. Wide operating temperature range from 0°C to 70°C for industrial use.

Maximum high-level output current is -0.8 mA and low-level output current is 16 mA. Compact dimensions with length 19.3 mm, width 6.35 mm, and height 4.57 mm. Suitable for use in industrial electronic systems requiring stable inverter logic functions.

This Texas Instruments SN7414N Inverter IC is ideal for engineers and system designers needing a Schmitt Trigger inverter with robust performance and compact packaging, enhancing production efficiency and reliability in electronic circuit designs.
