SMC Double Acting Rodless Pneumatic Cylinder 16mm Bore 100mm Stroke MY3B16-100

Free Delivery in India | Lowest Global Shipping Charges

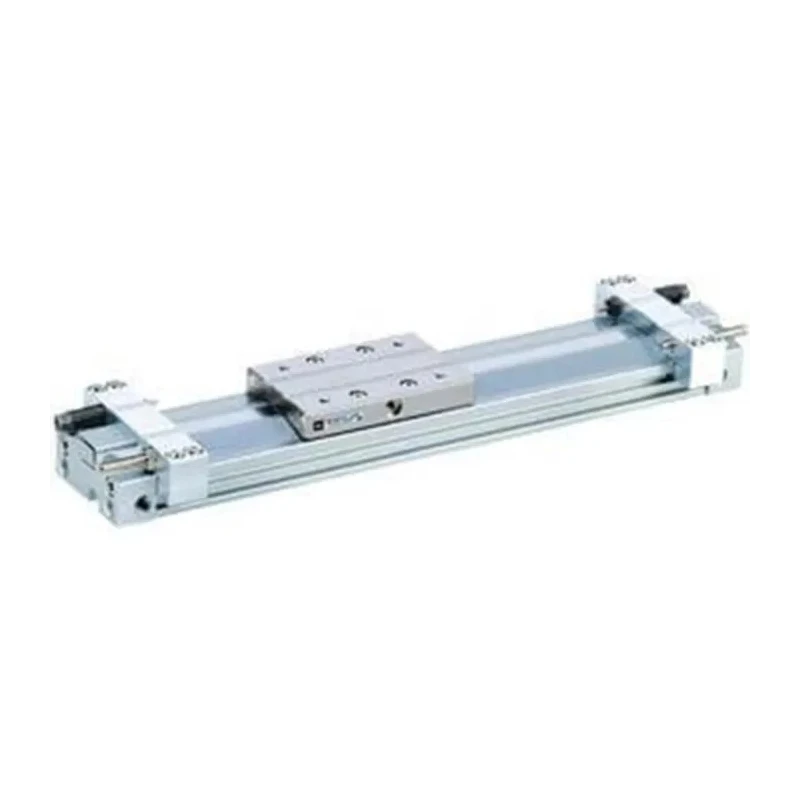

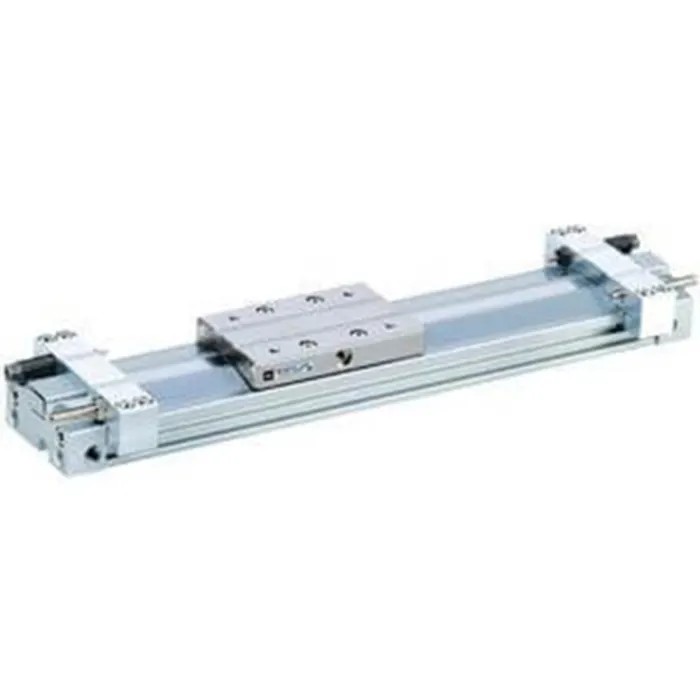

SMC Double Acting Rodless Pneumatic Cylinder 16mm Bore 100mm Stroke MY3B16-100



Category Pneumatic Rodless Cylinder Brand SMC Condition New

Specifications

Country of Origin	India
Brand	SMC
Body Material	Aluminium Alloy
Maximum Operating Pressure	8 bar
Height	22.5mm
Length	222mm
Model	MY3B16-100
Width	43mm
Series	MY3B
Maximum Operating Temperature	60°C
Mounting Orientation	Vertical
Minimum Operating Temperature	5°C
Stroke Length	100mm
Bore Diameter	16mm
Action Type	Double Acting
Standards/Approvals	2011/65/EU
Connection Thread Standard	Metric
Cushioning Type	Air Cushion
Guide Type	Basic
Port Gender	Female
Port Thread Size	M5 x 0.8

Key Features

The rodless cylinder features a one-piece carriage and piston design for full stroke length operation.
Constructed from aluminium alloy for lightweight durability and corrosion resistance.
Equipped with air cushion for enhanced cushioning at stroke ends.
Supports maximum operating pressure of 8 bar for reliable pneumatic power.
Compact dimensions of 222mm length, 43mm width, and 22.5mm height suit space-constrained installations.
Designed for vertical mounting orientation and female port gender with M5 x 0.8 thread size.
Operating temperature range from 5°C to 60°C ensures versatility across industrial environments.
Includes basic guide type and complies with RoHS directive 2011/65/EU.

Product Description

The SMC MY3B16-100 double acting rodless pneumatic cylinder features a 16mm bore diameter and 100mm stroke length, designed for high-performance pneumatic actuation in industrial environments. Made from durable aluminium alloy, this cylinder offers lightweight construction with corrosion resistance.

The rodless design includes a one-piece carriage and piston that run the entire stroke length, enhanced with an inner seal belt to maintain air pressure and an outer dust seal band to prevent contamination. This configuration provides a compact footprint compared to traditional rod-style cylinders with a low profile suitable for tight spaces.

Equipped with air cushions, the cylinder ensures smooth operation and cushioning at the stroke ends, reducing mechanical shock and wear. It supports a maximum operating pressure of 8 bar and operates effectively within a temperature range of 5°C to 60°C, allowing use across various industrial applications.

Featuring a female port gender with M5 x 0.8 connection thread and designed for vertical mounting orientation, this cylinder is compatible with auto switch units and can be customized with long stroke options up to 3000mm (model XB11). The basic guide type ensures reliable linear movement.

Its compact external dimensions of 222mm length, 43mm width, and 22.5mm height make it ideal for machinery and automated systems where space is limited. The unit complies with RoHS 2011/65/EU standards, supporting environmental safety and regulatory compliance.

The rodless cylinder's integrated carriage and piston design optimize stroke utilization. Air cushioning enhances durability and smooth operation. Compact aluminium alloy body reduces weight without sacrificing strength.

Pressure capacity up to 8 bar ensures robust pneumatic performance. Suitable for vertical mounting and equipped with metric thread port connections. Wide operating temperature range supports applications in varied environments.

This SMC rodless pneumatic cylinder is widely used in manufacturing, automation, material handling, and fluid power systems, delivering precise and reliable actuation. EnvMart offers comprehensive access to SMC pneumatic components and accessories for industrial automation needs.

Explore more products in our Pneumatic Rodless Cylinder category.
