Samtec 1 mm Pitch 25 Way Horizontal Female Edge Connector, Solder, Surface Mount, 200V, 2.9A Current ZF1-25-01-T-WT

Free Delivery in India | Lowest Global Shipping Charges

Samtec 1 mm Pitch 25 Way Horizontal Female Edge Connector, Solder, Surface Mount, 200V, 2.9A Current ZF1-25-01-T-WT

Name: Samtec 1 mm Pitch 25 Way Horizontal Female Edge Connector, Solder, Surface Mount, 200V, 2.9A Current ZF1-25-01-T-WT
Brand: Samtec
SKU: 163220
Price: 1.86 USD
Availability: InStock



Category Edge Connector Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	200V
Brand	Samtec
Orientation	Horizontal
Current	2.9A
Model	ZF1-25-01-T-WT
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	ZF1
Termination Type	Solder
Maximum Operating Temperature	80°C
Sub Type	FFC
Minimum Operating Temperature	-30°C
Pitch	1mm
Contact Plating	Matt Tin
Number of Contacts	25
Contact Gender	Female
Connector Gender	Female
Insertion Force	ZIF
Contact Position	Bottom

Key Features

Features a zero insertion force (ZIF) design for easy cable insertion.
Constructed with phosphor bronze contacts plated with matt tin for reliable conductivity.
Operates at 200 volts and supports a current of 2.9 amps.
Housing is made from durable liquid crystal polymer to withstand mechanical stresses.
Designed with a horizontal orientation and bottom contact position for flexible PCB layouts.
Suitable for operating temperatures from -30°C to 80°C ensuring thermal stability.
Complies with RoHS standards making it environmentally friendly.
Designed for use in high precision electronic and industrial applications.

Product Description

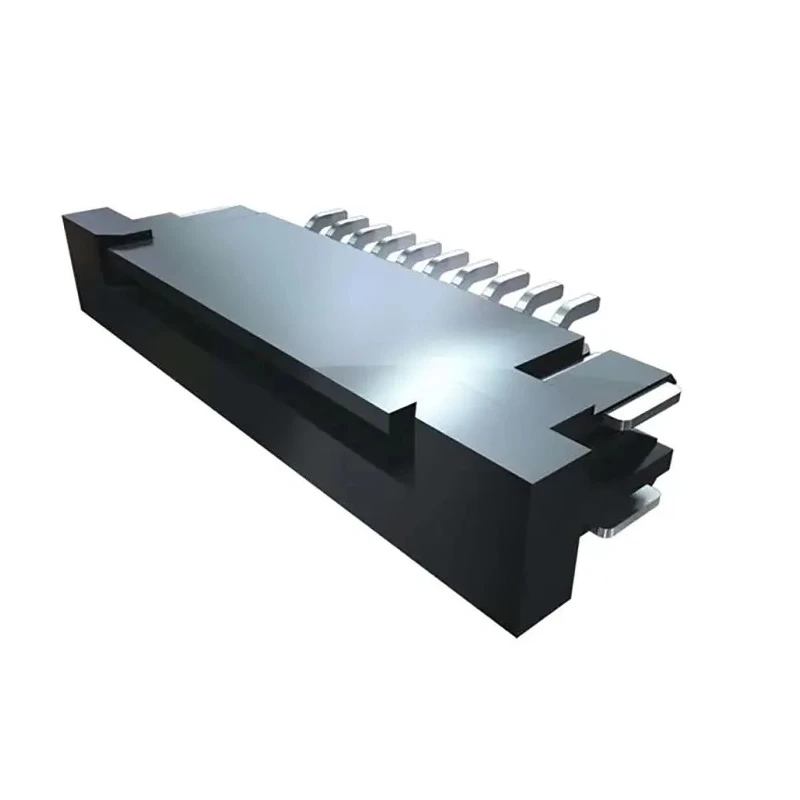

The Samtec ZF1-25-01-T-WT is a 25 way horizontal female Edge Connector with a 1 mm pitch designed for flexible printed circuit (FPC) applications. It features a zero insertion force (ZIF) mechanism that facilitates easy and damage-free insertion of flat and flexible cable sockets, enhancing assembly efficiency. This connector is surface mount type, allowing direct mounting on PCB for space-saving designs.

Its contacts are made of phosphor bronze, plated with matt tin, ensuring excellent electrical conductivity and durability. The housing material is liquid crystal polymer, providing high mechanical strength and resistance to heat, suitable for demanding industrial, electronic, and manufacturing environments.

Rated for operation at voltages up to 200V and currents up to 2.9A, the connector supports reliable signal transmission in low to medium power electronic circuitry. The device's operating temperature range from -30°C to 80°C secures performance stability under various thermal conditions.

Designed for horizontal orientation with bottom contact placement, this connector fits compact PCB layouts where board real estate is critical. It is RoHS compliant, ensuring that it meets international safety and environmental standards.

Typical applications of the ZF1 series connector include electronic components manufacturing, PCB assembly lines, laboratory instrumentation, and other industrial automation systems requiring precise and durable electrical connections.

Zero insertion force ensures ease of connection without damaging cables. Phosphor bronze contacts with matt tin plating offer superior conductivity. Liquid crystal polymer housing provides heat resistance and mechanical integrity.

Surface mount type allows efficient PCB integration. Supports 25 contacts with 1 mm pitch for compact design. Operating temperature range from -30°C to 80°C. Rated at 200 volts and 2.9 amps current carrying capacity. RoHS compliant for environmental and safety standards.

Horizontal orientation with bottom contact position for versatile PCB layouts. Explore more electronic connectors and components at EnvMart to support your advanced industrial and electronic designs with trusted quality and specifications.
