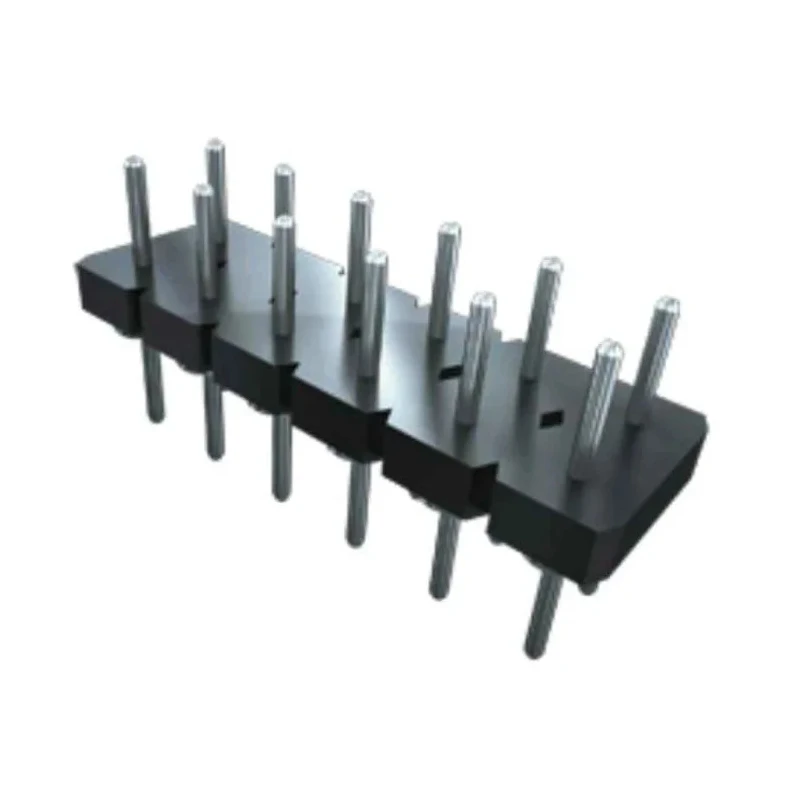

Samtec 10-Pin Through Hole Unshrouded Male Pin Header, 2.54mm Pitch, 2 Row, Glass Filled Polyester, BDL-105-G-F

The Samtec BDL-105-G-F straight through hole pin header is a high-quality PCB connector engineered for dependable board-to-board connections in industrial, laboratory, and electronic applications. This pin header accommodates 10 contacts in a 2-row configuration and is designed for through hole mounting, making it suitable for standard PCB manufacturing processes.

With a pitch of 2.54 mm between pins, the header facilitates easy integration into a wide variety of printed circuit board layouts, ensuring compatibility with industry-standard spacing. Its unshrouded design provides flexibility in placement and accessibility, enabling direct solder termination and reducing assembly complexity.

The housing is made from glass filled polyester, a material chosen for its excellent mechanical strength and dimensional stability, even under varying temperature conditions. This high-quality polymer safeguards the internal contacts and maintains precise alignment during board assembly and use.

The contacts themselves are crafted from brass and phosphor bronze, well-regarded for electrical reliability and mechanical durability. Gold plating is applied to the contacts, enhancing conductivity, minimizing resistance, and protecting against oxidation and corrosion that can be encountered in demanding industrial environments.

Designed for board-to-board connection systems, the BDL-105-G-F header is ideal for a variety of equipment including industrial control panels, instrumentation, embedded electronics, and custom PCB assemblies. The solder termination method ensures a secure mechanical bond and stable electrical contact throughout the service life of the product.

Rated for operating temperatures from -55°C to 125°C, this header is built to withstand challenging conditions found in manufacturing, laboratory, and commercial electronics sectors. The male pin configuration and 2-row layout allow for versatile applications, from prototype runs to volume production. Typical use cases include industrial automation, device interconnects, PCB module development, and electronic hardware integration.

Samtec’s BDL series pin headers are recognized for quality and consistent connectivity performance. The BDL-105-G-F, with its robust construction and reliable contact system, is suitable for engineers and designers seeking proven board-level interconnect solutions for multi-row, multi-contact applications.
