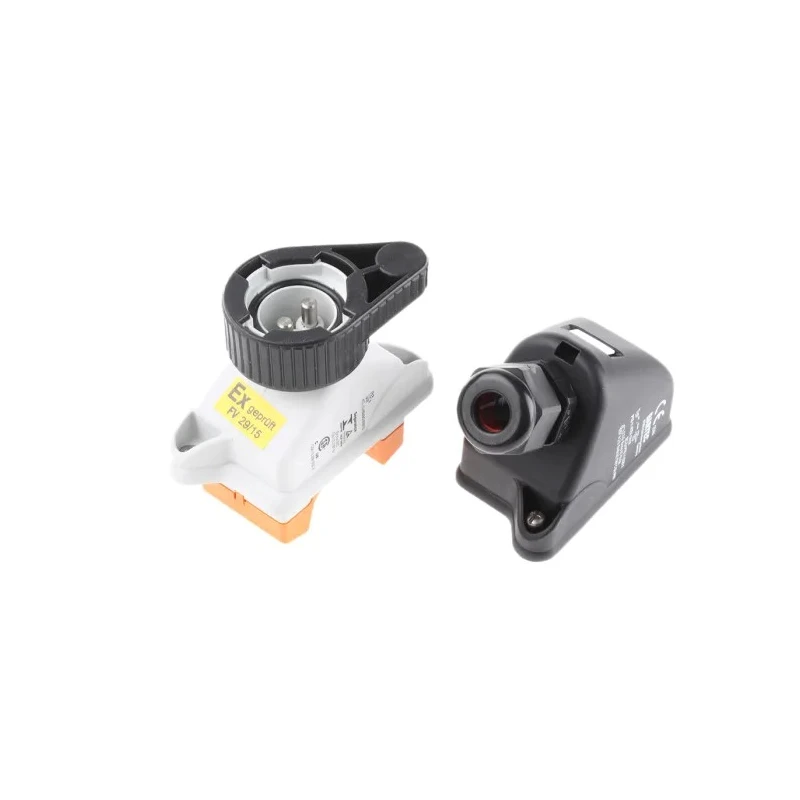

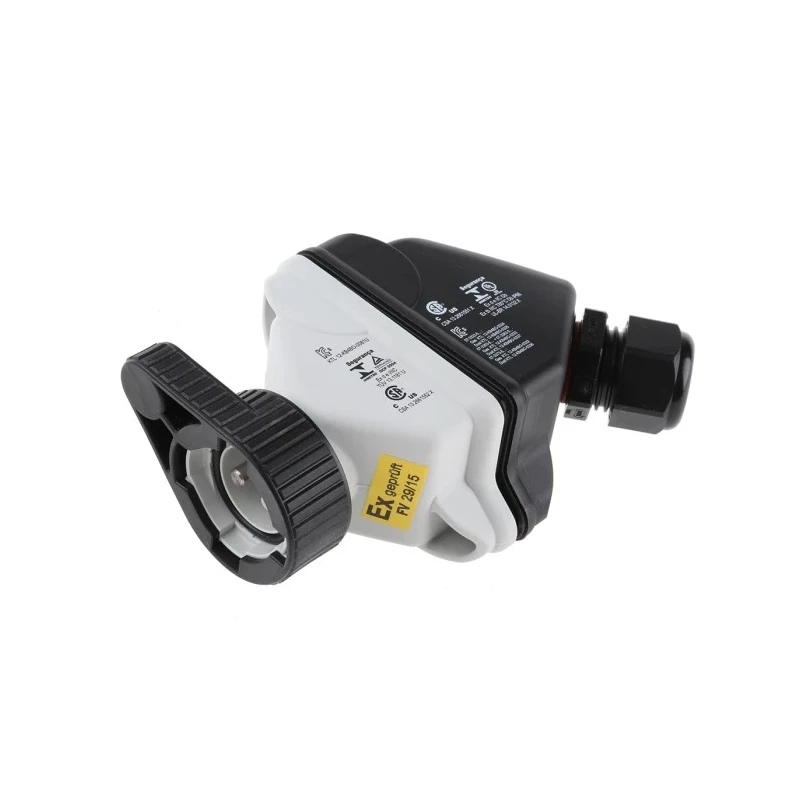

Bartec ComEx Series Push Button Module, Panel Mount, 30.3 mm Cutout, DPST, IP20, 110 V dc 400 V ac 07-3323-4100+05-0042-0050

Bartec 07-3323-4100+05-0042-0050 ComEx Series Push Button Module is a high-quality industrial control component designed for panel mounting with a 30.3 mm cutout. It features a double pole single throw (DPST) contact configuration with an IP20 ingress protection rating, supporting operation at 110 V dc and 400 V ac. The actuator is black, round, and non-illuminated, providing a robust switch solution for various industrial environments.

Engineered to operate between -55°C and 60°C, this push button module ensures reliability under a broad range of temperature conditions. The switch contact current rating is 16A, suitable for switching moderate loads in control circuits. Built with screw terminal connection type, it ensures secure and convenient wiring setup.

This module complies with multiple international standards including IEC 60079 and EN 60079, indicating suitability for potentially hazardous industrial locations, typical in manufacturing, automation, and process control applications. The overall dimensions of approximately 68 mm length, 72 mm height, and 38 mm width optimize panel space utilization.

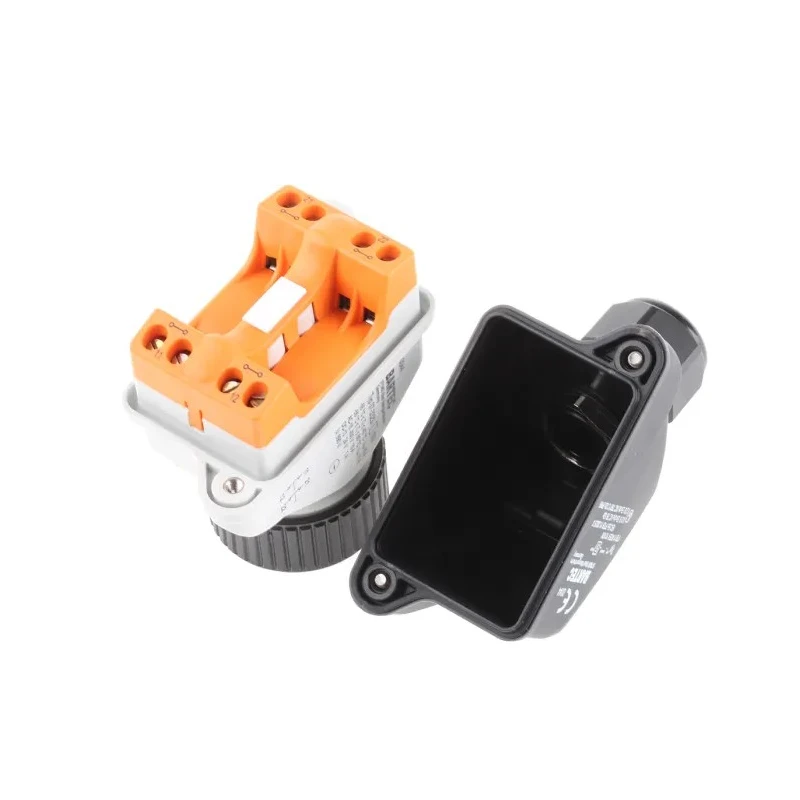

The push button module is part of the ComEx series known for flexibility and modularity, featuring a junction box for cable management and ease of installation in control panels or consoles. Its bayonet locking mechanism guarantees secure mounting with minimal installation depth, facilitating integration into a wide range of control systems.

Applications include industrial machine control, automation systems, hazardous area operations, and control panels requiring reliable, compliant push button modules. The robust design ensures sustained performance in demanding electrical and mechanical environments.

The module includes a black round actuator designed for operator-friendly usage. It is rated IP20, providing basic protection against touch and ingress of large objects. Designed for 16A contact current capability, supporting heavy-duty switching.

Suitable for control panels in industrial automation and hazardous areas. Compliance with IEC 60079 series ensures safety and reliability. Panel mount type with bayonet lock secures installation. Operating temperature range from -55°C to 60°C supports diverse environments.

Screw terminal type for dependable electrical connectivity. Discover the full range of industrial switches and components on EnvMart for enhanced automation and control solutions.
