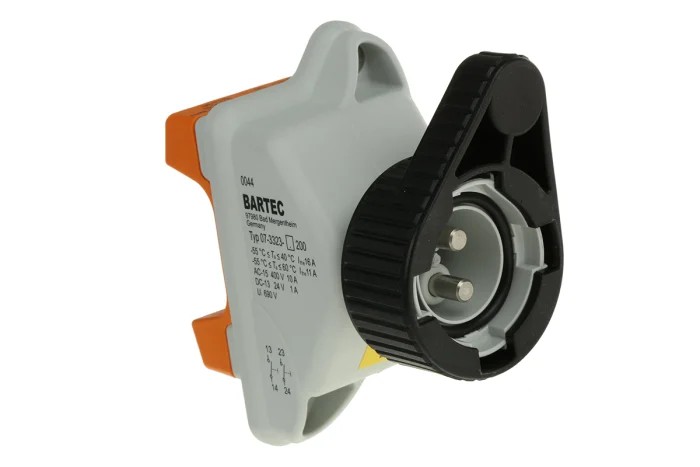

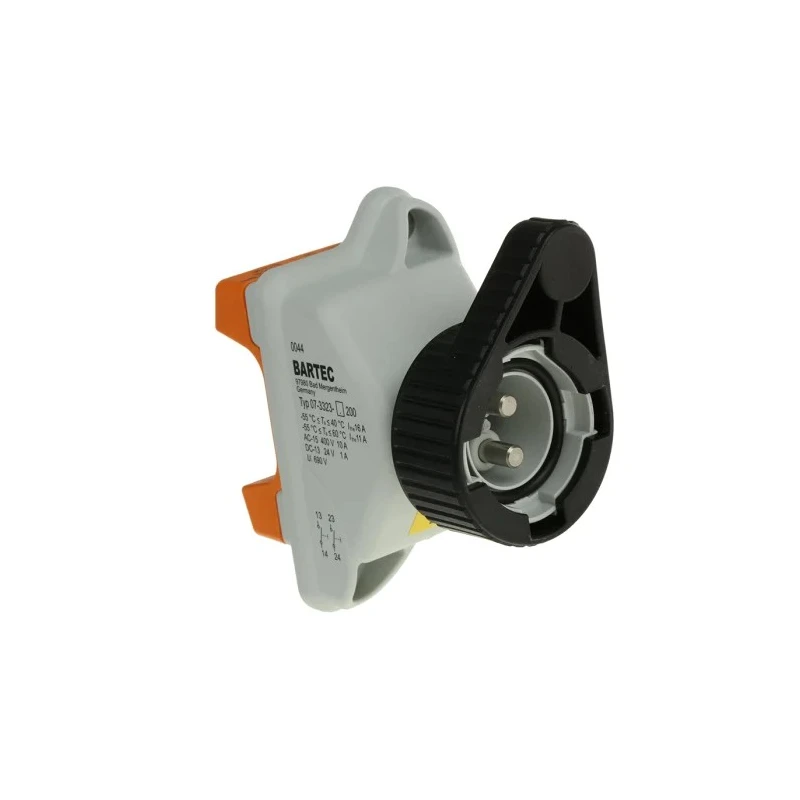

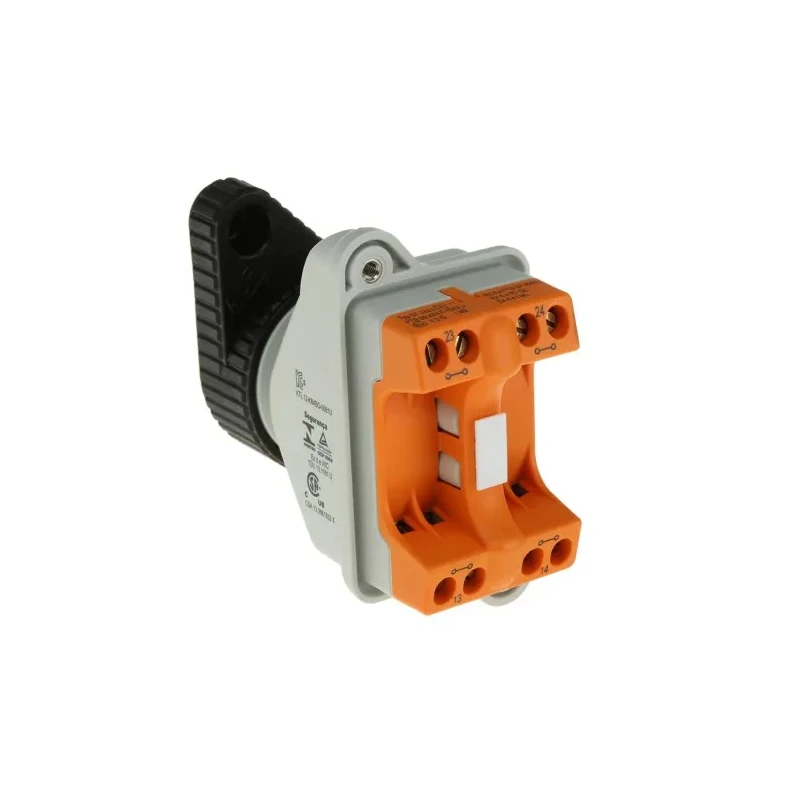

Bartec ComEx Series Push Button Module Panel Mount 30.3 mm Cutout DPST IP20 110 V 400 V 07-3323-4200+05-0042-0050

Name: Bartec ComEx Series Push Button Module Panel Mount 30.3 mm Cutout DPST IP20 110 V 400 V 07-3323-4200+05-0042-0050
Brand: Bartec
SKU: 130868
Price: 136.52 USD
Availability: InStock



Category Push Button Switches Brand Bartec Condition New

Specifications

Country of Origin	Germany
Brand	Bartec
Height	72mm
Length	68mm
Model	07-3323-4200+05-0042-0050
IP Rating	IP20
Width	38mm
Mount Type	Panel
Series	ComEx
Maximum Operating Temperature	60°C
Contact Configuration	DPST
Switch Configuration	1 NC, 1 NO, 2 NC, 2 NO
Minimum Operating Temperature	-55°C
Panel Cutout Size	30.3 mm
Terminal type	Screw
Actuator Colour	Black
Contact DC Voltage	110V
Actuator Style	Round
Switch Contact Current	16A
Contact AC Voltage	400V
Eaton GHG4 Series Push Button Switch, Panel Mount, 30 mm Cutout, SPDT, IP66Brand	Eaton
Eaton 2 Position, Knob Actuator 16 ABrand	Eaton
IP67 2 NO contact switch moduleBrand	Bartec

Key Features

The actuator colour is black with a round style.
The switch supports contact AC voltage up to 400 V and DC voltage up to 110 V.
Terminal type is screw with switch contact current rated at 16 A.
Operating temperature range is from -55°C to 60°C, suitable for harsh environments.
Standards compliance includes IEC and EN approvals for hazardous area use.
The module features self-cleaning contacts with positive opening operation.
The panel cutout size ensures easy integration into control consoles and panels.
The product is manufactured in Germany and is new in condition.

Product Description

Bartec 07-3323-4200+05-0042-0050 ComEx Series push button module is engineered for industrial and hazardous area applications requiring reliable machine function activation through push buttons or switches. This panel-mounted module features a 30.3 mm cutout size compatible with various control consoles and panels, designed to deliver DPST (Double Pole Single Throw) functionality with robust IP20 ingress protection.

The module's black round actuator ensures consistent operation under demanding conditions, with terminal connections secured via screw terminals. It supports contact voltages up to 400 V AC and 110 V DC, handling switch contact currents rated at 16 A with self-cleaning contacts and positive opening action to maintain reliability and safety throughout its operational lifespan.

Operating in temperatures ranging from -55°C to 60°C, this push button module complies with multiple international standards including IEC 60079 series and DIN EN 60068 tests, certifying its suitability for hazardous and industrial environments. It features compact dimensions with a length of 68 mm, width of 38 mm, and height of 72 mm, allowing for straightforward integration into existing control systems.

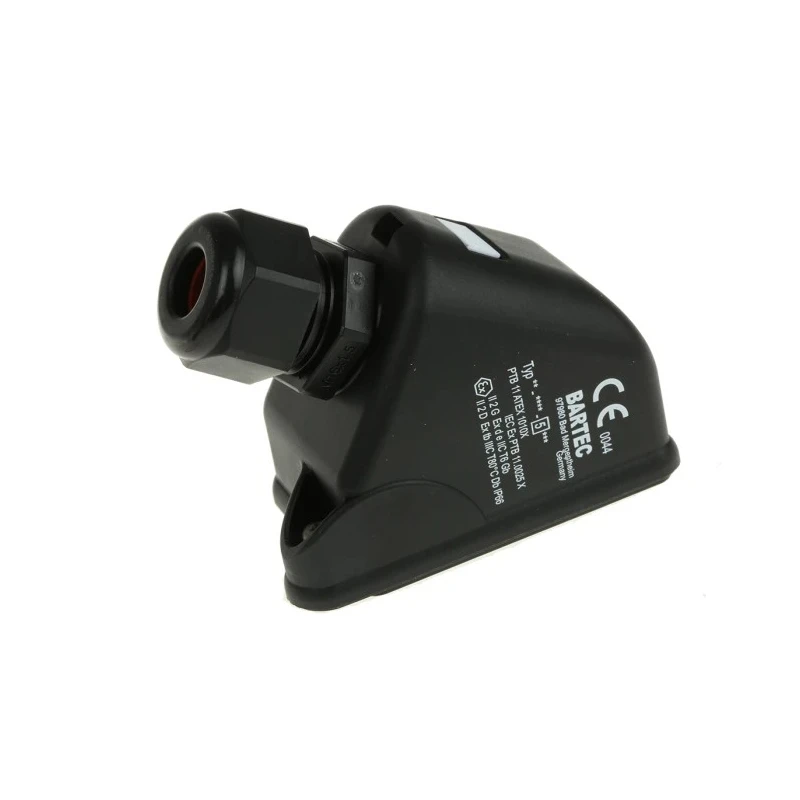

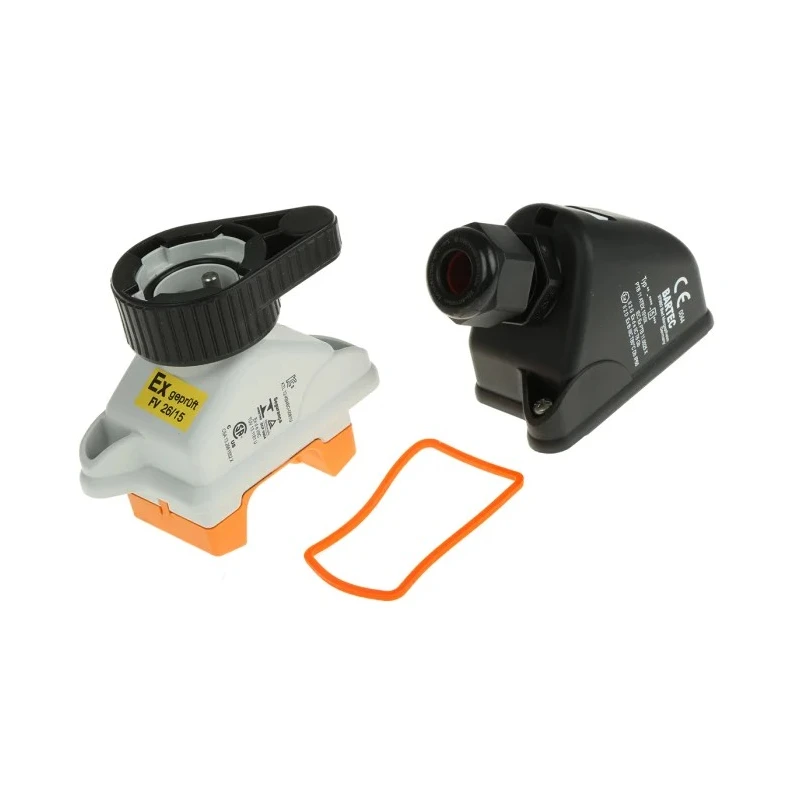

The ComEx Series flexibility is augmented by a junction box option, easing installation and combining with various function modules as needed. This enhances its adaptability across diverse automation, electrical panel, and machine control applications used in sectors such as manufacturing, water treatment, and more.

The actuator colour is black with a round style. Contact configuration is DPST for versatile switching. Terminal type is screw, ensuring secure wiring connections. IP20 rated for protection against solid objects and limited dust exposure.

Voltage ratings of 400 V AC and 110 V DC accommodate wide industrial needs. Temperature tolerance from -55°C to 60°C supports harsh environmental conditions. Compact dimensions facilitate panel mounting in confined spaces.

Manufactured in Germany, this product guarantees high quality and durability for reliable operation. The Bartec ComEx Series Push Button Module is an essential component for industrial automation and control panel applications requiring dependable switching performance.
