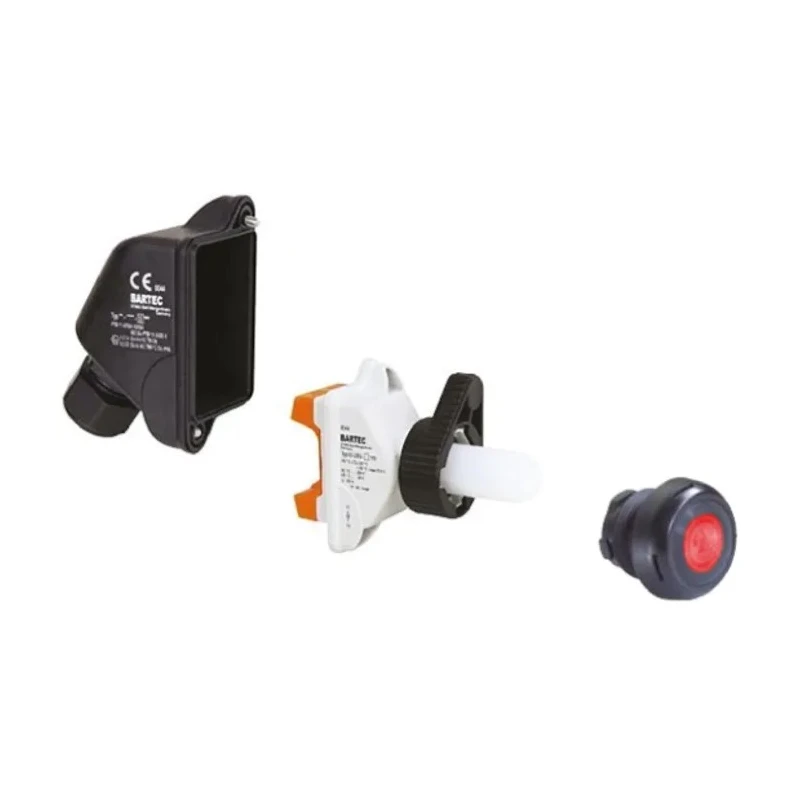

Bartec ComEx Series Illuminated Push Button Switch Panel Mount SPST Blue Green 07-3363-4810 + 05-0042-0050 + 05-0003-006500

Bartec 07-3363-4810 + 05-0042-0050 + 05-0003-006500 is a ComEx Series Illuminated Push Button Switch designed for panel mounting applications. This switch features a SPST contact configuration and offers multi-color LED illumination options including blue, green, red, white, and yellow LEDs, enhancing visual indication of machine states or commands. It provides IP20 ingress protection and is rated for a contact DC voltage of 60V and an AC voltage of up to 250V, with a contact current capacity of 16A.

The push button switch has a compact and ergonomic round actuator style and is constructed for reliable operation in harsh industrial environments, with an operating temperature range from -55°C to 60°C. Mounting is secured with a bayonet lock mechanism to ensure stable installation in control panels.

All contacts in the switch are self-cleaning with positive opening operation to enhance safety during use. The switch complies with stringent safety and certification standards including PTB 11 ATEX 1010 X and IECEx PTB 11.0025X, making it suitable for hazardous area installations.

The physical dimensions of this unit are 72 mm in height, 92 mm in length, and 38 mm in width, allowing for versatile panel integration. The ComEx series switch and lamp modules can be combined with various function modules and junction boxes, providing a flexible solution for industrial control needs.

This product is made in Germany, reflecting Bartec’s commitment to high-quality manufacturing standards. Ideal for electrical, automation, and hazardous area control panel applications in industrial, manufacturing, and commercial environments.

Multi-color LED illumination with blue, green, red, white, and yellow options for visual status indication. Panel mount design with secure bayonet lock mounting mechanism. SPST contact configuration rated for 16A current at 60V DC and 250V AC.

Self-cleaning contacts and positive opening operation for safety. Complies with ATEX and IECEx standards for hazardous locations. Compact dimensions facilitate easy integration into control panels. Operation over wide temperature range from -55°C to 60°C.

Flexible modular design allows combination with lamp modules and junction boxes. Manufactured in Germany to industrial quality standards. Browse more products in Push Button Switches category at EnvMart for reliable industrial control solutions.
