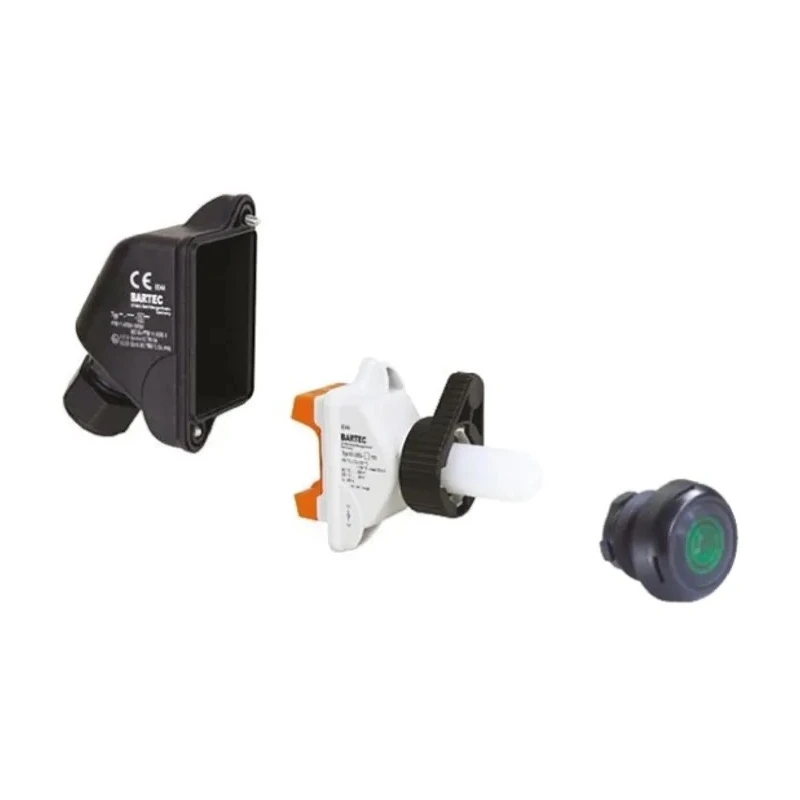

Bartec ComEx Series Illuminated Push Button Switch Panel Mount SPST Blue Green 07-3363-4820 + 05-0042-0050 + 05-0003-006600
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Bartec |
| Height | 72mm |
| Length | 92mm |
| Model | 07-3363-4820 + 05-0042-0050 + 05-0003-006600 |
| IP Rating | IP20 |
| Width | 38mm |
| Mount Type | Panel Mount |
| Series | ComEx |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -55°C |
| Terminal type | Screw |
| Standards/Approvals | PTB 11 ATEX 1010 XIECEx PTB 11.0025X |
| LED Colour | Blue, Green, Red, White, Yellow |
| Actuator Colour | Red |
| Contact DC Voltage | 60V |
| Actuator Style | Round |
| Switch Contact Current | 16A |
| Contact AC Voltage | 250V |
Key Features
- The switch features a round red actuator with blue, green, red, white, and yellow LED options for versatile indication.
- Designed for panel mounting, it offers screw terminal connections for secure wiring.
- It supports a contact AC voltage of 250V and DC voltage of 60V, suitable for diverse electrical applications.
- Durable construction provides operation in temperatures ranging from -55°C to 60°C with IP20 ingress protection.
- The device supports a switch contact current of 16A AC for robust circuit control.
- Mounting dimensions include a 30.5mm hole requirement and an overall size of 92mm length, 72mm height, and 38mm width.
- Certified to standards PTB 11 ATEX 1010 X and IECEx PTB 11.0025X, ensuring safe use in hazardous areas.
- Self-cleaning contacts with positive opening guarantee reliable and safe operation.
Product Description
Bartec 07-3363-4820 + 05-0042-0050 + 05-0003-006600 ComEx Series Illuminated Push Button Switch offers a versatile and robust panel mount SPST switch solution with multi-color LED illumination options and IP20 protection rating.
This switch is equipped with a round red actuator and LEDs in blue, green, red, white, and yellow, providing clear visual indication for machine function status or control signals in electrical systems.
Featuring screw-type terminal connections and designed for panel mounting with a 30.5mm hole diameter, this unit has compact dimensions measuring 92mm in length, 72mm in height, and 38mm in width. It supports a contact AC voltage rating up to 250V and contact DC voltage up to 60V, accommodating a switch contact current of 16A AC.
Operating temperature ranges from -55°C to +60°C, ensuring reliable performance in varied industrial environments. The IP20 ingress protection provides basic protection against solid objects, suitable for controlled environments.
The switch incorporates self-cleaning silver contacts with positive opening contacts to ensure safe breaking under fault conditions. This model is certified to PTB 11 ATEX 1010 X and IECEx PTB 11.0025X standards, making it suitable for hazardous and potentially explosive atmospheres in industrial applications.
ComEx switch modules with integrated LED lamp modules allow flexible configurations for control consoles or panels. The lamp modules feature a wide voltage range compatibility and provide 180° illumination for clear operator feedback.
Applications include industrial automation, hazardous area machinery control, safety signaling, and electrical panel assembly. The robust design includes a bayonet lock for secure mounting and low installation depth, simplifying integration into control panels.
The switch features a round red actuator with multi-color LED illumination. Contact configuration is SPST with screw terminals for reliable electrical connections. Supports AC voltage up to 250V and DC voltage up to 60V with 16A contact current.
Durable design operates in temperatures from -55°C to 60°C with IP20 ingress protection. Certified to PTB 11 ATEX 1010 X and IECEx PTB 11.0025X, suitable for hazardous areas. Compact dimensions of 92mm length, 72mm height, and 38mm width fit standard mounting holes.
Self-cleaning contacts with positive opening improve operational safety and reliability. Illumination provides clear visual signals for machine status indication up to 180°. Panel mount installation with bayonet locking ensures secure fit and easy maintenance.
Explore the Bartec category of Push Button Switches on EnvMart for reliable industrial automation and hazardous area controls solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a contact AC voltage rating of up to 250V and a DC voltage rating of 60V.
The switch can handle a contact current of 16A AC.
The overall dimensions are 92mm in length, 72mm in height, and 38mm in width, with a mounting hole requirement of 30.5mm.
It operates within a temperature range of -55°C to 60°C.
This model features screw-type terminal connections for secure wiring.
The switch has an IP20 ingress protection rating, providing basic protection against solid objects.
It is certified to PTB 11 ATEX 1010 X and IECEx PTB 11.0025X standards, suitable for hazardous areas.
The switch offers LED options in blue, green, red, white, and yellow.
The contact configuration is SPST (Single Pole Single Throw).
It is designed for panel mounting with a bayonet lock for secure installation.
It is suitable for industrial automation, hazardous area machinery control, safety signaling, and electrical panel assembly.
It incorporates self-cleaning silver contacts with positive opening contacts to ensure safe operation under fault conditions.
