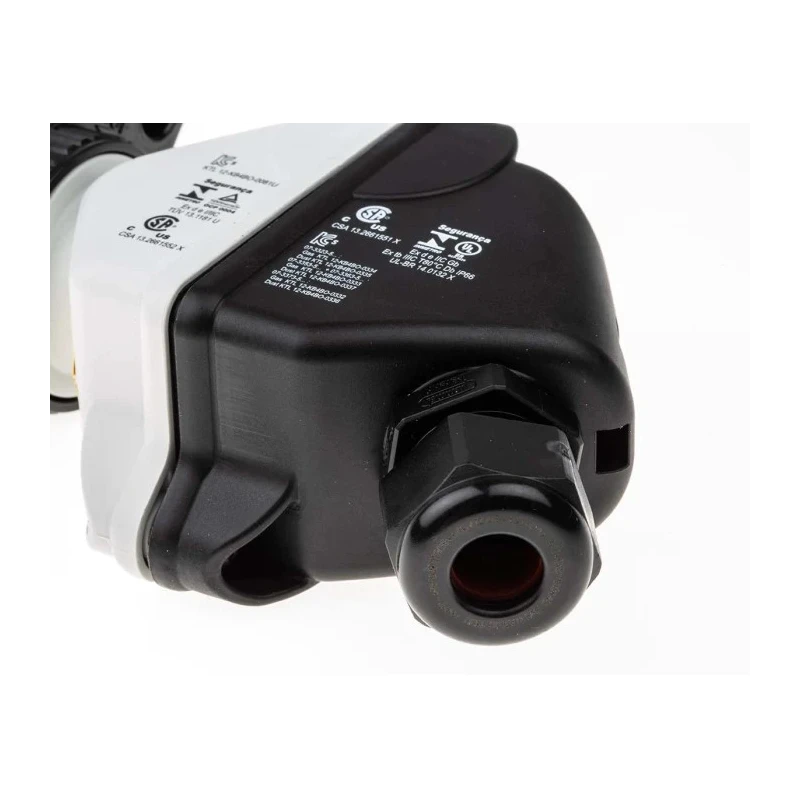

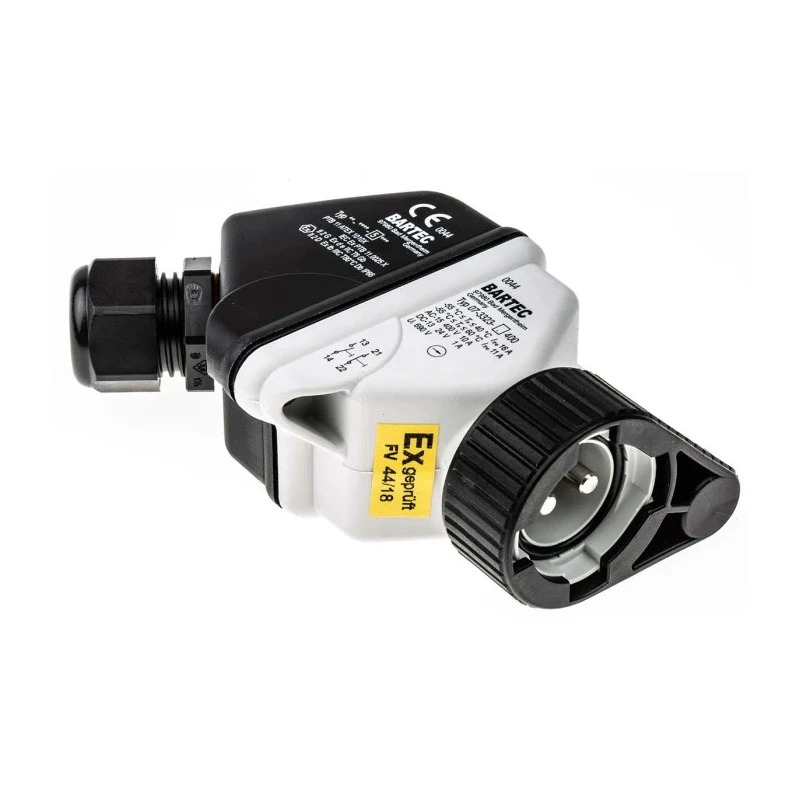

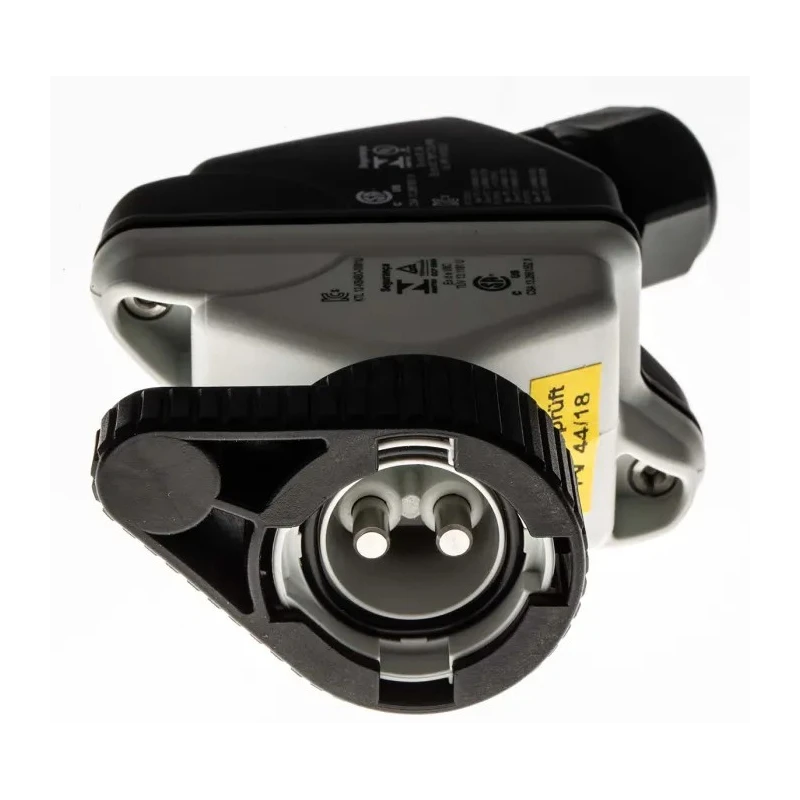

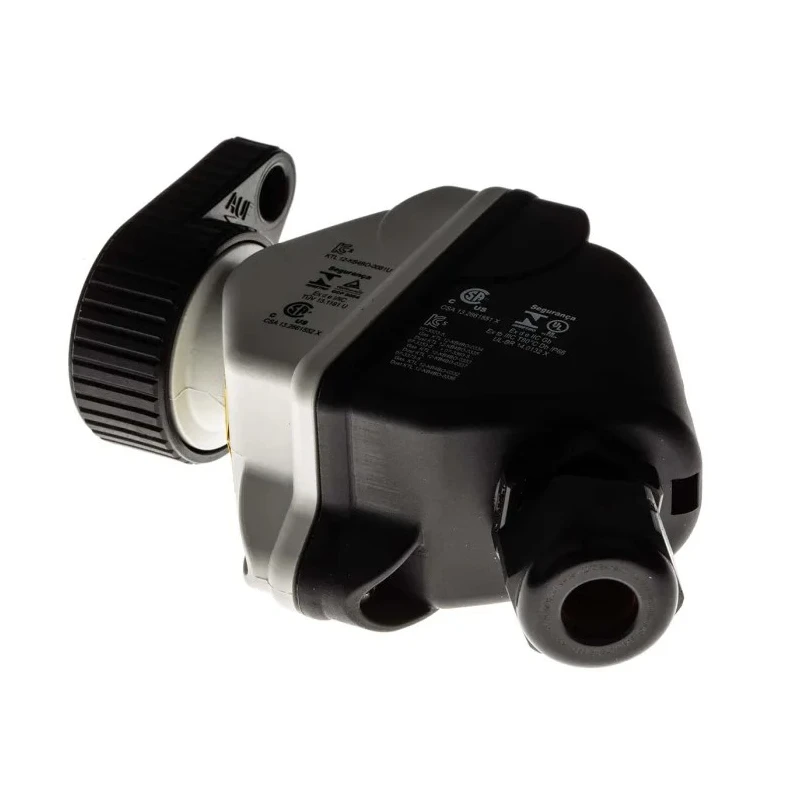

Bartec ComEx Series Push Button Module Panel Mount 30.3 mm Cutout SPDT IP20 110 V 400 V 07-3323-4400+05-0042-0050

Bartec 07-3323-4400+05-0042-0050 ComEx Series Push Button Module is a versatile panel mount switch designed for reliable operation in various industrial and hazardous environments. The module requires a 30.3 mm panel cutout and features a single-pole double-throw (SPDT) contact configuration, providing flexible control and switching options.

Designed with a black round actuator without illumination, this switch module offers a secure screw terminal connection and an ingress protection rating of IP20. It is capable of handling 110 V DC and up to 400 V AC, with a contact current rating of 16A, suitable for heavy-duty electrical applications. Operating reliably between -55°C and 60°C, it is compliant with IEC and EN standards including IEC 60079-0:2007, IEC/EN 60079-1:2007, and others, ensuring safe use in demanding conditions.

The module measures 72 mm in height, 68 mm in length, and 38 mm in width, compactly designed for panel integration. Its robust construction and positive break contacts with self-cleaning functionality guarantee durability and safe switching performance. The ComEx series integrates well in hazardous areas where machine functions require activation via push buttons or switches.

The product is manufactured in Germany, reflecting precise engineering and quality assurance practices. This push button module is part of a flexible system that can be combined with various function modules, including junction boxes that offer easy cable management and installation capabilities in control panels or consoles.

Applications include industrial manufacturing, automation systems, and electrical switch panels requiring dependable operation in potentially explosive or harsh environmental conditions. The module’s compliance with international standards further supports its use in critical sectors such as oil and gas, chemical processing, and manufacturing industries.

The actuator color is black with a round style design. The module features a screw terminal type for secure electrical connections. Operating temperature ranges from -55°C to 60°C. Switch configuration supports various contact arrangements including 1 NC, 2 NO, 2 NC, and 1 NO.

Dimensions include height 72mm, length 68mm, and width 38mm. The switch contact current rating is 16A AC, making it suitable for industrial applications. Complies with multiple IEC and EN standards ensuring quality and safety.

Manufactured in Germany ensuring high build standards. Explore EnvMart's extensive range of industrial Push Button Switches and modules for reliable and compliant control panel solutions.
