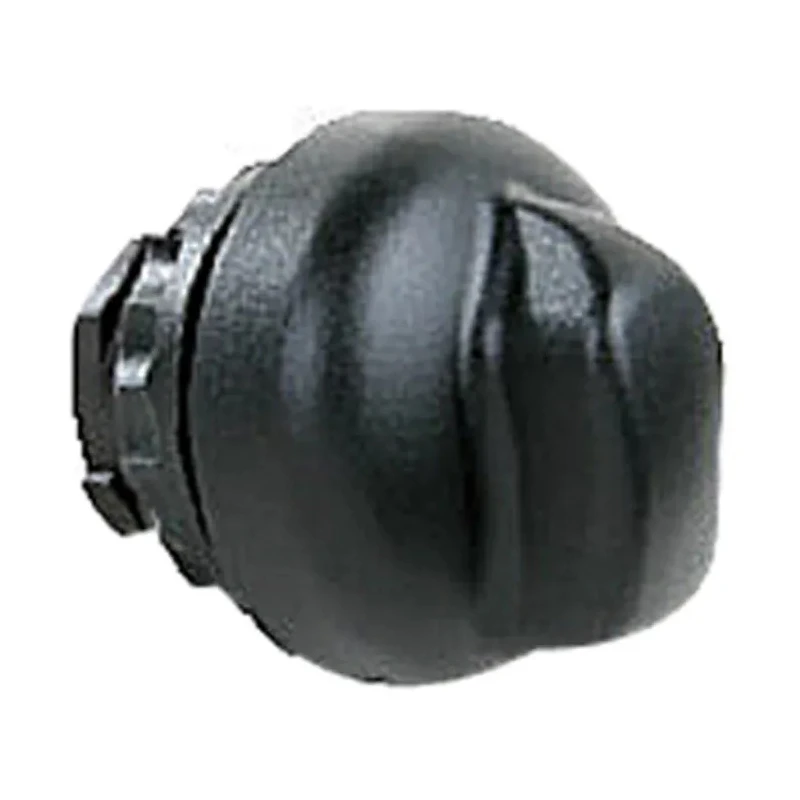

Bartec Bartec Series 3 Position Selector Switch Head, Black Handle, IP67, IP66 05-0003-001001

Bartec 05-0003-001001 Series 3 Position Selector Switch Head is engineered for industrial and hazardous area applications, offering reliable and safe control in demanding environments. The black handle actuator is ergonomically designed for effective manual operation, providing a spring return to centre switch operation mechanism with three selectable positions spanning a 90° angle of throw. It is suitable for panel mounting requiring a 30.5mm hole, incorporating ingress protection rated at IP67 and IP66, which ensures resistance to dust and water ingress.

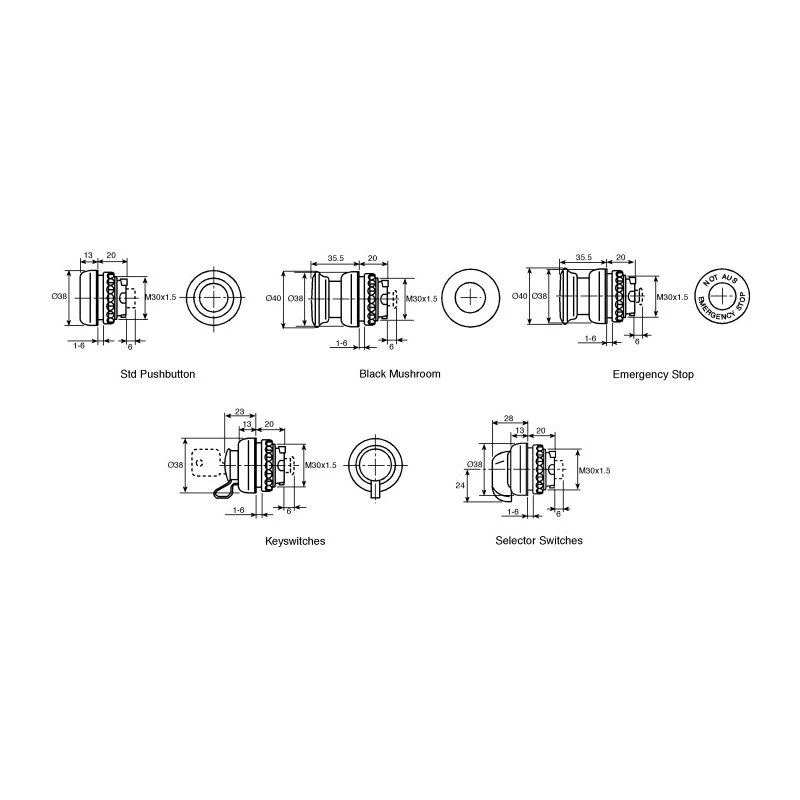

The switch head supports a wide variety of switch contact arrangements and elements including selector switches, key switches, standard pushbuttons, and emergency stop pushbuttons, making it a versatile component for electrical and automation control systems. The switch modules deliver a wipe clean action and are rated for circuit type AC-12 at 230Vac/16A, with a positive break on the normally closed contacts to ensure safe disconnection.

The integrated electronic circuitry of each lamp module allows self-configuration to accommodate a broad voltage range for AC and DC power supplies. For ease of installation, a simple cam mechanism provides rapid fitting of actuators. This selector switch head complies with IECEx CML 14.0005 U and EN IEC 60079-0 standards, affirming its certification for hazardous area use.

Manufactured in Germany, this product exemplifies premium build quality suitable for industrial, manufacturing, HVAC, and automation sectors where durable and certified switching components are essential.

Designed for panel mounting with a 30.5mm mounting hole. Spring return to centre switch operation with 3 positions and 90° throw angle. Black actuator color for clear identification. Ingress protection IP67 and IP66 for harsh environments.

Certified to IECEx and EN standards for hazardous areas. Switch modules rated up to 230Vac/16A with positive break on N/C contacts. Wide compatibility with various switch contact arrangements. Rapid actuator fitting via simple cam mechanism.

For precision and safety in electrical panel control systems across industrial and hazardous environments, the Bartec Bartec Series 3 Position Selector Switch Head 05-0003-001001 delivers robust performance and standards compliance. Explore additional Selector Switch Heads and components through EnvMart for comprehensive control solutions.
