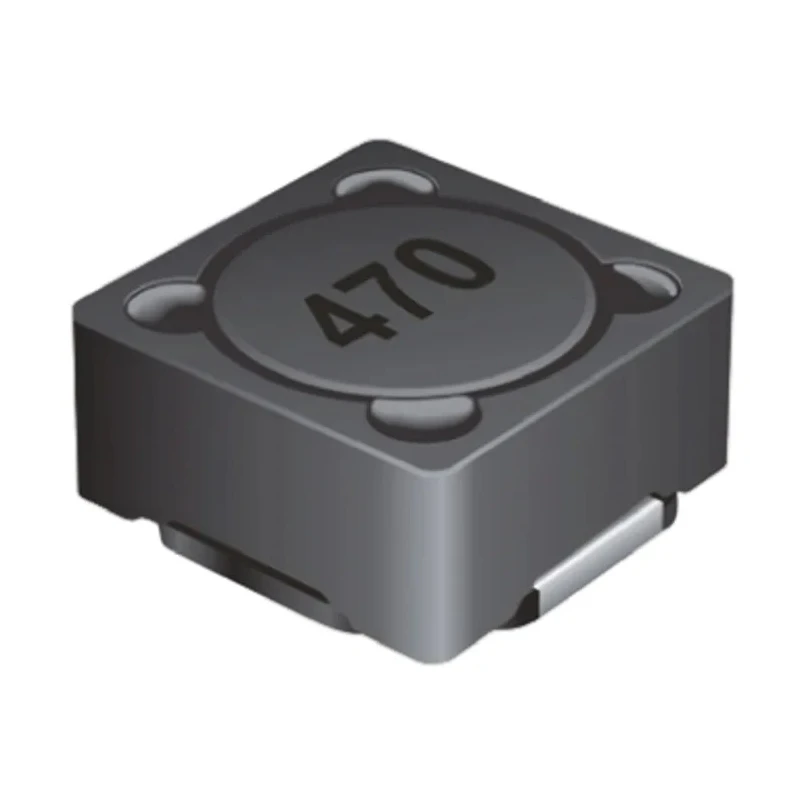

Bourns Shielded Wirewound Surface Mount Inductor 150 μH ±10% 1.85 A Idc 4.1 MHz SRR1280
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 7.5mm |
| Length | 12.5mm |
| Model | SRR1280 |
| Depth | 12.5mm |
| Packaging | Reel |
| Series | SRR1280 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 150μH |
| Standards/Approvals | RoHS |
| Package/Case | 1280 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 727-2280PBrand: BournsManufacturers Part No.: SRR1280-151K |
| Maximum DC Current | 1.85A |
| Maximum DC Resistance | 270mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 4.1MHz |
| Minimum Quality Factor | 24 |
| Inductor Construction | Wirewound |
Key Features
- Low profile surface mount design with 7.5mm height.
- Magnetically shielded wirewound construction ensuring stable performance.
- Ferrite core enhances inductance and reduces EM interference.
- Rated for 125°C maximum operating temperature.
- Maximum DC resistance of 270 milliohm guarantees efficiency.
- Quality factor minimum of 24 ensures high frequency performance.
- Self resonant frequency up to 4.1 MHz for reliable operation.
- Packaged in reel for efficient automated assembly.
Product Description
Bourns SRR1280 Shielded Wirewound Surface Mount Inductor features a ferrite core providing 150 μH inductance with ±10% tolerance. It supports a maximum DC current of 1.85 A and operates up to 125°C, making it ideal for high frequency and high efficiency power applications.
This low-profile inductor measures 7.5mm in height and 12.5mm in length and depth. It employs a magnetically shielded wirewound construction to minimize interference and offers a maximum DC resistance of 270 milliohm, ensuring minimal power loss during operation.
Designed with a minimum quality factor of 24 and a self-resonant frequency of 4.1 MHz, the SRR1280 series is optimized for DC/DC converters, power supplies, portable communication equipment, camcorders, LCD televisions, and car radios.
The device comes packaged as a reel ready for efficient automated surface-mount assembly and complies with RoHS standards. The termination style is surface mount to suit high-density PCB assembly processes.
Low profile surface mount design with 7.5mm height. Magnetically shielded wirewound construction ensuring stable performance. Ferrite core enhances inductance and reduces EM interference. Rated for 125°C maximum operating temperature.
Maximum DC resistance of 270 milliohm guarantees efficiency. Quality factor minimum of 24 ensures high frequency performance. Self resonant frequency up to 4.1 MHz for reliable operation. Packaged in reel for efficient automated assembly.
Suitable for DC/DC converters, power supplies in portable communication, LCD TVs, and automotive radios.
Bourns surface mount inductors such as the SRR1280 series are widely used in industrial, electronic manufacturing, telecommunications, automotive electronics, and consumer electronics industries. Explore EnvMart for more Power Inductors and electronic components from trusted brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns SRR1280 inductor has an inductance value of 150 μH with a tolerance of ±10%.
This model supports a maximum DC current of 1.85 A.
The self-resonant frequency of the SRR1280 is up to 4.1 MHz.
The inductor measures 7.5 mm in height, 12.5 mm in length, and 12.5 mm in depth.
The maximum operating temperature for this inductor is rated at 125°C.
The SRR1280 features a magnetically shielded wirewound construction, which helps minimize electromagnetic interference.
The maximum DC resistance of the SRR1280 is 270 milliohm.
The minimum quality factor for this model is 24, ensuring high frequency performance.
This inductor is packaged in a reel, which is suitable for efficient automated assembly.
The operating temperature range for the SRR1280 is from -40°C to 125°C.
The SRR1280 complies with RoHS standards.
This inductor is suitable for applications such as DC/DC converters, power supplies, portable communication equipment, and automotive radios.
