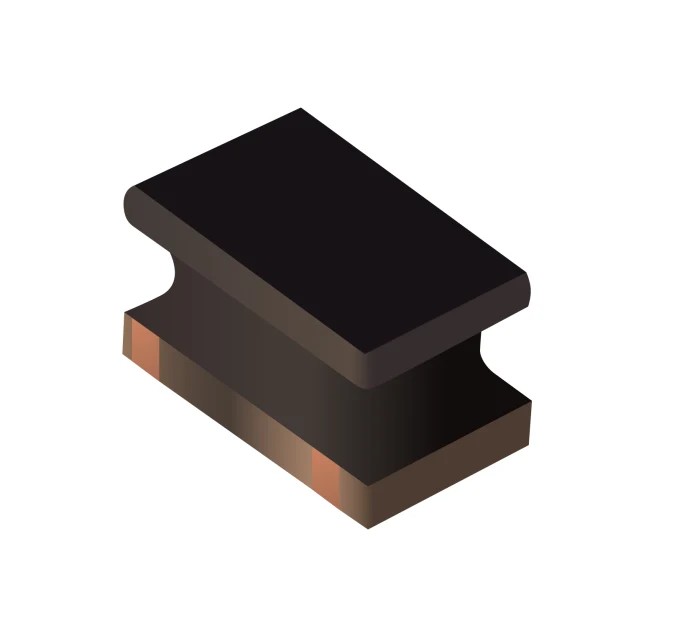

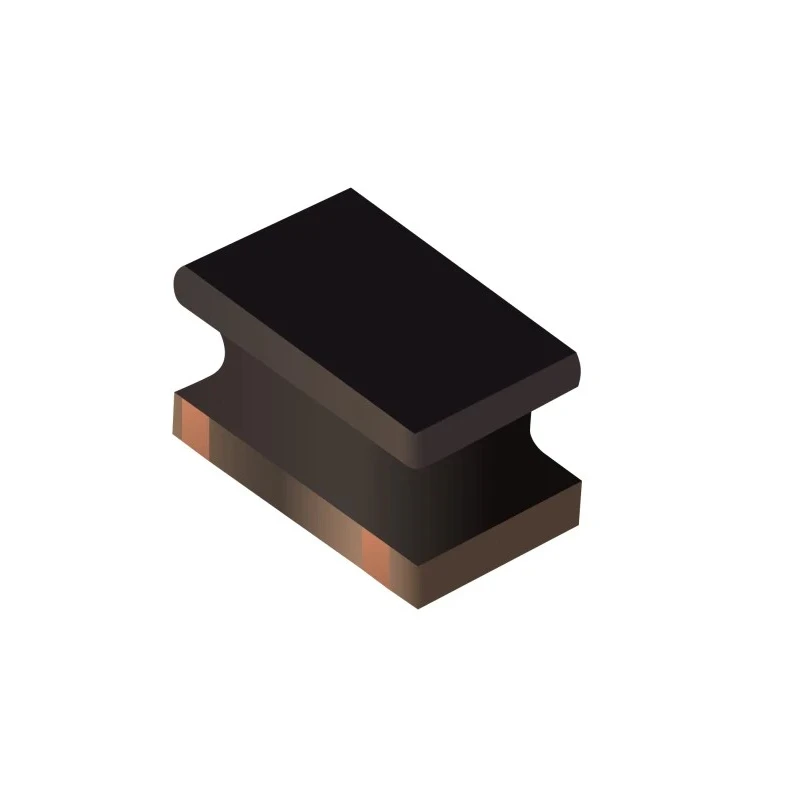

Bourns 22 μH 10% Shielded Power Inductor with Ferrite Core 0.34A Max DC Current SRN2012T

Bourns SRN2012T is a shielded power inductor designed with a ferrite core that delivers an inductance of 22 μH and supports a maximum DC current of 0.34 A. Housed in a miniature 2012 surface mount package measuring 2 mm in length, 1.2 mm in height, and 1.2 mm in depth, this inductor is engineered for compact electronic applications.

With a tolerance of 10%, this component provides consistent performance across a wide temperature range from -40°C to 125°C, making it suitable for industrial, automotive, consumer electronics, and telecommunications applications. The inductor’s low DC resistance of 0.85 Ω helps reduce power loss and heat generation, ensuring energy-efficient operation.

The SRN2012T series complies with the ANSI/ESD S20.20:2021 electrostatic control standard, enhancing device reliability in sensitive electronic environments. Its shielding effectively minimizes electromagnetic interference, improving circuit stability in complex systems. The product exhibits a high self-resonant frequency of 7.9 MHz, enabling its use in high-frequency power supply and filtering circuits.

Supplied as 2000 pieces per 7-inch reel, the SRN2012T facilitates streamlined automated assembly and manufacturing workflows. Its ferrite core construction results in high Q factor performance for improved energy storage and reduced core losses.

This power inductor is ideal for applications in industrial electronics, automotive electronic control units, communications equipment, and power management modules. It offers a reliable and compact solution to meet demanding electrical and thermal requirements.

The inductor features a ferrite core for efficient magnetic performance. It is manufactured in a compact 2012 package suitable for surface mount applications. Operating temperature range from -40°C to 125°C ensures durability in diverse environments.

Low maximum DC resistance of 0.85 ohms minimizes power loss. The component complies with ANSI/ESD S20.20:2021 electrostatic control standards for reliability. Shielding reduces electromagnetic interference, improving circuit performance.

High self-resonant frequency of 7.9 MHz supports high frequency applications. Supplied in reels of 2000 pieces enhancing production efficiency. Explore the full range of Bourns inductors and power components on EnvMart for trusted industrial and electronic solutions.
