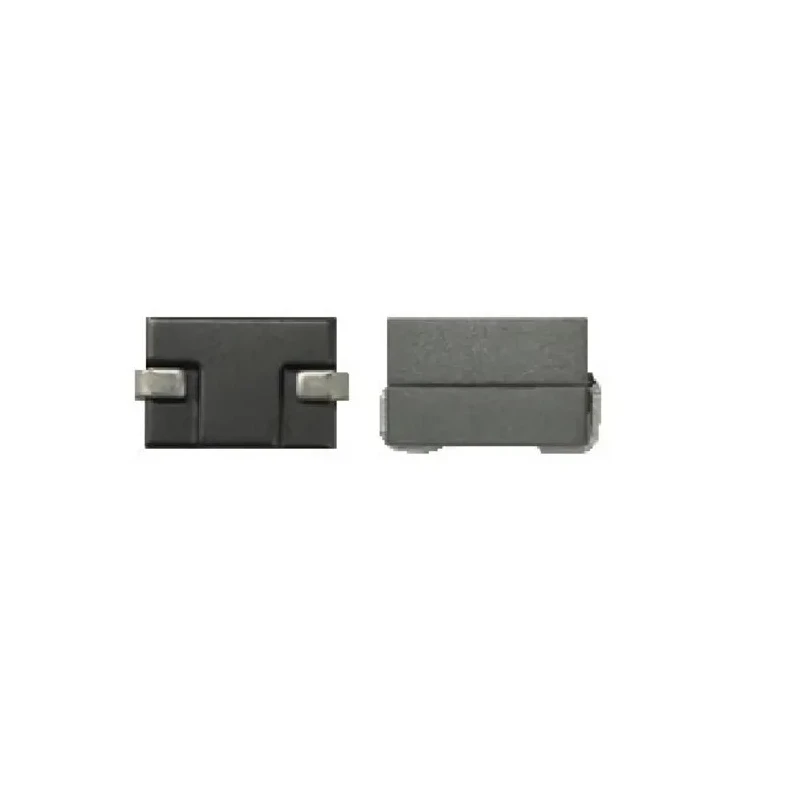

Abracon SMT Shielded Power Inductor with Manganese Zinc Ferrite Core 10nH 20% Tolerance 50A AMSLA-1050-100NM-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon SMT Shielded Power Inductor with Manganese Zinc Ferrite Core 10nH 20% Tolerance 50A AMSLA-1050-100NM-T

Name: Abracon SMT Shielded Power Inductor with Manganese Zinc Ferrite Core 10nH 20% Tolerance 50A AMSLA-1050-100NM-T
Brand: Abracon
SKU: 404999
Price: 0.83 USD
Availability: InStock



Category Power Inductors Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	7mm
Length	10.2mm
Model	AMSLA-1050-100NM-T
Depth	1.3mm
Packaging	2000 pieces per 7 in Reel
Series	AMSLA
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Manganese Zinc Ferrite
Inductance	10nH
Standards/Approvals	ANSI/ESD S20.20:2021 Electrostatic Control Standard
Package/Case	SMT
Maximum DC Current	50A
Maximum DC Resistance	0.42Ω
Inductance Tolerance	20 %
Maximum Self Resonant Frequency	2MHz
Standards/ApprovalsANSI/ESD S20.20	2021 Electrostatic Control Standard

Key Features

Constructed with a shielded design to minimize electromagnetic interference.
Includes a manganese zinc ferrite core for high power density.
Suitable for applications requiring 10nH inductance and 20% tolerance.
Operates reliably between -40°C to 125°C temperature range.
Supports a maximum DC current of 50 amperes for demanding power circuits.
Packaged as SMT with 2000 pieces per 7-inch reel for efficient assembly.
Features a maximum DC resistance of 0.42 ohms ensuring efficient conduction.
Rated for frequency operations up to 2 MHz with soft saturation characteristic.

Product Description

The Abracon AMSLA-1050-100NM-T is a surface-mount shielded power inductor featuring a manganese zinc ferrite core, engineered for high power density applications. This 10 nanohenry (nH) inductor features a 20% inductance tolerance, supporting a maximum DC current of 50 amperes, making it ideal for power management circuits in industrial, solar inverter, robotics, and other high-current electronic systems.

Its shielded construction significantly reduces electromagnetic interference, enhancing performance stability in sensitive electronic environments. The inductor supports operation across a broad temperature range of -40°C to 125°C, ensuring high reliability in harsh conditions.

Manufactured to meet the ANSI/ESD S20.20:2021 electrostatic control standard, it assures protection against electrostatic discharge risks in manufacturing and operational setups.

This power inductor comes in a compact SMT case measuring 10.2mm in length, 7mm in height, and 1.3mm in depth, and is supplied in a reel packaging of 2000 pieces per 7-inch reel, facilitating efficient automated PCB assembly processes.

Supporting frequencies up to 2 MHz with optimized soft saturation characteristics, the AMSLA-1050-100NM-T yields high efficiency and minimal losses in power circuits. Shielded construction reduces interference effectively.

Manganese zinc ferrite core ensures high power density. 10nH inductance with 20% tolerance suitable for precise applications. High maximum DC current rating of 50A for demanding power applications. Wide operating temperature range from -40°C to 125°C.

ANSI/ESD S20.20:2021 compliant for electrostatic control. Compact SMT packaging for assembly automation. Supports frequencies up to 2 MHz. Soft saturation characteristic for high efficiency.

This power inductor is suited for diverse industrial electronics including solar power inverters, robotics, industrial control systems, and power management modules. Choosing Abracon AMSLA-1050-100NM-T ensures durable, efficient, and stable inductive performance in your electronic designs.
