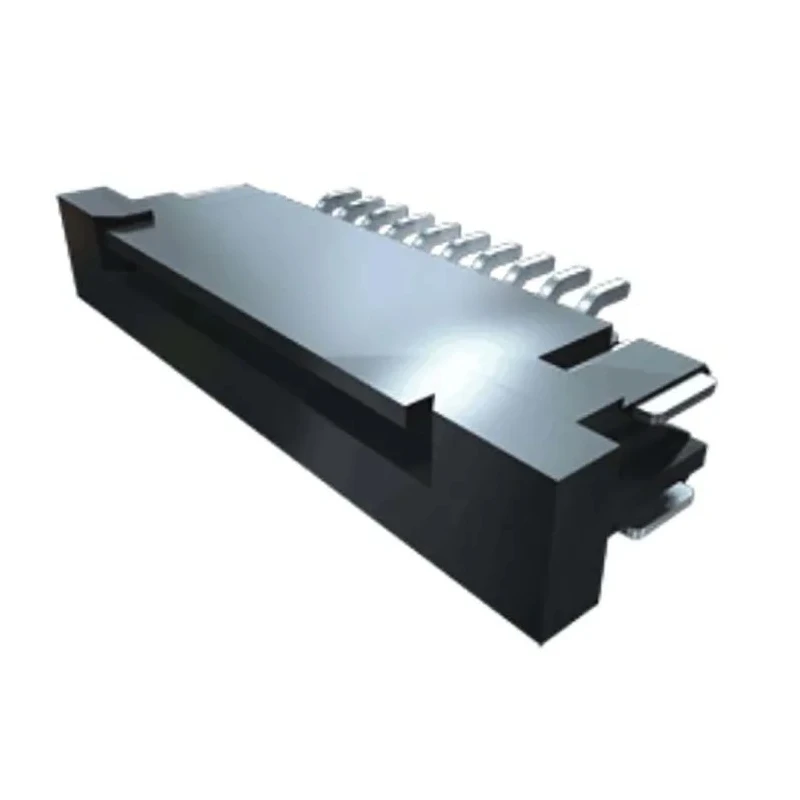

Samtec 1 mm Pitch 25 Way Right Angle Female PCB Socket Surface Mount Solder ZF1-25-01-T-WT-TR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Orientation | Right Angle |
| Current | 1.9A |
| Model | ZF1-25-01-T-WT-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | ZF1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | FPC Connector |
| Minimum Operating Temperature | -55°C |
| Pitch | 1mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 25 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Position | Bottom |
Key Features
- Features phosphor bronze contact material ensuring durability and conductivity.
- Supports a current rating of 1.9A suitable for low power PCB applications.
- Equipped with a locking mechanism for secure connection.
- Operates effectively within -55°C to 105°C temperature range.
- Housing made of liquid crystal polymer for high mechanical stability and insulation.
- Contact plating is tin over nickel for corrosion resistance.
- Designed with bottom contact position and right angle orientation for efficient PCB layout.
- Complies with RoHS standards for environmental safety.
Product Description
Samtec ZF1-25-01-T-WT-TR is a high-quality 1 mm pitch, 25 way right angle female PCB socket connector designed for surface mounting (SMT) with solder termination. This PCB socket features phosphor bronze contacts plated with tin over nickel, ensuring excellent conductivity and corrosion resistance. The housing is constructed from liquid crystal polymer, offering robust mechanical strength and insulation properties.
The connector supports a current of 1.9A, making it suitable for low to moderate current electronic applications. It operates reliably over a wide temperature range from -55°C to 105°C, accommodating various industrial and commercial environments. The right angle orientation and bottom contact position provide efficient board space utilization, ideal for compact PCB layouts.
It includes a locking mechanism to ensure a secure and reliable connection, preventing accidental disconnections in demanding use cases. This connector is RoHS compliant, adhering to environmental and safety standards.
The Samtec ZF1 series connectors are commonly used in industrial electronics, power connectors, telecommunications, and other applications requiring dependable connections for flat flexible cables (FPC).
Durable phosphor bronze contacts with tin over nickel plating for reliable performance. Compact 1 mm pitch suitable for high-density PCB designs. Surface mount technology with solder termination for automated assembly. Wide operating temperature range from -55°C to 105°C.
Robust liquid crystal polymer housing for mechanical stability. Right angle orientation and locking mechanism ensure secure connections. RoHS compliant for environmental safety. Package contains a single 25 way female right angle PCB socket connector.
Explore EnvMart for a wide selection of PCB Sockets and connectors suited for industrial, electronic component manufacturing, and power connector applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1.9A, making it suitable for low to moderate current electronic applications.
It operates effectively within a temperature range of -55°C to 105°C, accommodating various industrial and commercial environments.
The housing is made from liquid crystal polymer, while the contacts are phosphor bronze plated with tin over nickel for conductivity and corrosion resistance.
This connector features a right angle orientation, which is designed for efficient PCB layout and space utilization.
This model has 25 contacts, allowing for multiple connections in a compact design.
It utilizes solder termination, suitable for surface mounting technology (SMT) and automated assembly.
Yes, it complies with RoHS standards, ensuring it meets environmental safety regulations.
The contact pitch for this model is 1 mm, making it suitable for high-density PCB designs.
It includes a locking mechanism designed to ensure a secure and reliable connection, preventing accidental disconnections.
The connector gender is female, designed for use with compatible male connectors.
The country of origin for this PCB socket is India.
This model is commonly used in industrial electronics, power connectors, telecommunications, and other applications requiring dependable connections for flat flexible cables (FPC).
