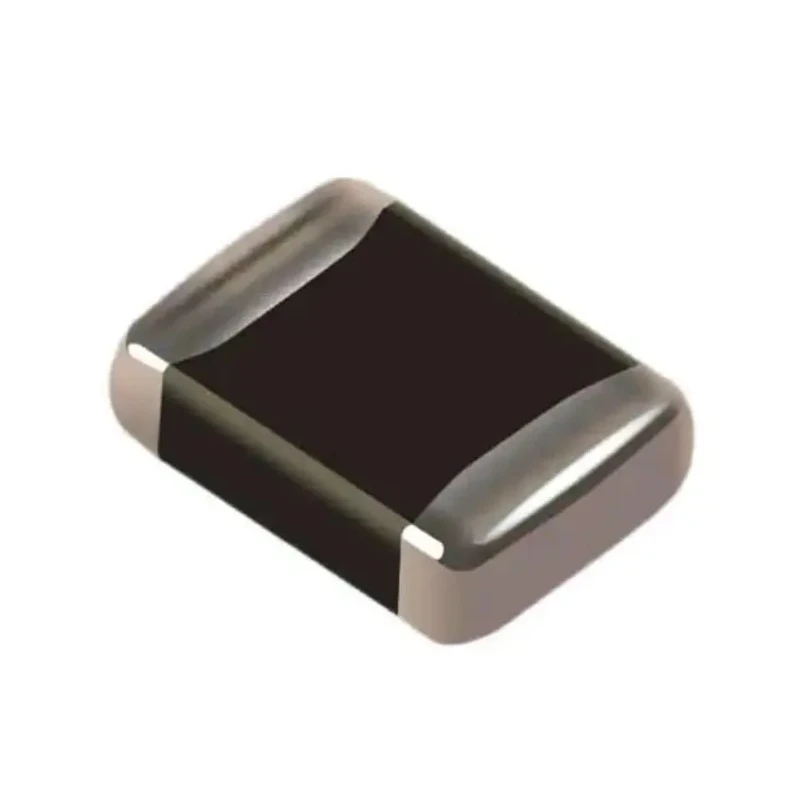

Bourns ZVHT Varistor 950 pF Capacitance 1 A Clamping Current, 38 V Clamping Voltage, 22 V Varistor ZV14K1206201NIR1HT

Name: Bourns ZVHT Varistor 950 pF Capacitance 1 A Clamping Current, 38 V Clamping Voltage, 22 V Varistor ZV14K1206201NIR1HT
Brand: BOURNS
SKU: 165296



Category Varistor Brand BOURNS Condition New

Specifications

Country of Origin	Slovenia
Brand	Bourns
Material	Metal
THICKNESS	0.85mm
Length	3.2mm
Model	ZV14K1206201NIR1HT
Depth	1.6mm
Packaging	Tape & Reel
Mount Type	Surface
Series	ZVHT
Energy Rating	0.6J
Maximum Operating Temperature	150°C
Capacitance	950pF
Minimum Operating Temperature	-55°C
Maximum dc Voltage	18V dc
Standards/Approvals	RoHS, UL
Package/Case	1206
Termination Style	Surface Mount
Maximum AC Voltage	14V ac
Clamping Voltage VC	38V
Clamping Current	1A
Maximum Surge Current	200A
Varistor Voltage	22 V

Key Features

The varistor features a clamping voltage of 38 V and a varistor voltage of 22 V.
It supports a maximum clamping current of 1 A and a surge current of 200 A.
Operating temperature ranges from -55°C to 150°C for reliable performance.
Designed in a metal material body with a compact size of 3.2 mm length, 1.6 mm depth, and 0.85 mm thickness.
Tape and reel packaging facilitates automated PCB assembly.
This varistor complies with RoHS and UL standards ensuring environmental and safety requirements.
The device is manufactured in Slovenia and does not conform to automotive standards.

Product Description

Bourns ZV14K1206201NIR1HT ZVHT Varistor is a low voltage, multi-layered surface mount varistor in a 1206 package, offering 950 pF capacitance designed to protect sensitive electronic circuits against overvoltage surges in the low voltage range.

The device provides a clamping voltage of 38 V and a varistor voltage of 22 V, making it suitable for transient voltage suppression and noise filtering applications.

The varistor supports a clamping current of 1 A and can handle surge currents up to 200 A, ensuring robust protection capability. It operates reliably between temperatures of -55°C and 150°C, suitable for harsh industrial and electronic environments.

Manufactured with a metal material body and surface mount termination style, the compact dimensions (3.2 mm length, 1.6 mm depth, 0.85 mm thickness) enable usage in densely packed PCBs and automated assembly lines with tape and reel packaging.

This varistor is RoHS and UL compliant, affirming its environmental friendliness and safety for electronic device integration. It is produced in Slovenia, although it is not rated for automotive applications.

The varistor provides high surge current and energy handling capacity for effective protection. Its broad operating temperature range supports diverse industrial and commercial electronics applications. The compact 1206 package size fits modern electronic designs requiring space efficiency.

Tape and reel packaging streamlines automated surface mount technology (SMT) assembly. RoHS and UL compliance ensure adherence to global electronic component regulations. Non-automotive grade device suitable for industrial, laboratory, and commercial electronics use.

Reliable low voltage surge protection essential for safeguarding sensitive PCB components. Explore the Bourns Varistor range at EnvMart for trusted and certified surge protection components essential in electronic circuit design and manufacturing.
