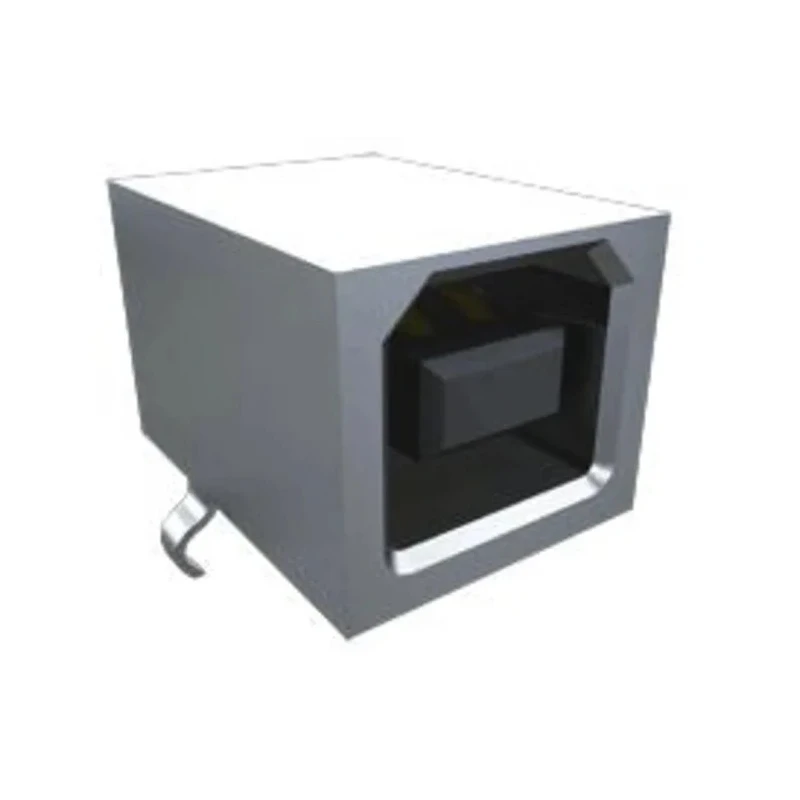

Samtec USB Connector Straight Through Hole Female 1 Port USB Type B IP68 USB 2.0 USB-B-S-F-B-TH-R
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | Samtec |
| Orientation | Straight |
| Model | USB-B-S-F-B-TH-R |
| IP Rating | IP68 |
| Mount Type | Through Hole |
| Contact Material | Phosphor Bronze |
| Series | USB Type B |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -50°C |
| USB Type | USB Type B |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- The connector features a single port suitable for reliable connections.
- Mount type is through hole for firm PCB mounting.
- Contact material is phosphor bronze ensuring durability and conductivity.
- Operates within a voltage rating of 30V and temperature range from -50°C to 85°C.
- Termination type is solder, facilitating secure and stable attachment.
- The orientation is straight with high retention options available.
- Available in black or white insulators to match design requirements.
- Offers IP68 protection marking for resistance against dust and water.
Product Description
Samtec USB-B-S-F-B-TH-R is a precision engineered USB Connector designed to meet the demands of modern electronic applications requiring robust and reliable connections. This model is a straight female USB Type B connector mounted through hole style offering excellent mechanical stability on printed circuit boards.
Operating with USB 2.0 specification, this connector supports data transfer rates and ensures compatibility across a vast range of devices. It operates within a voltage rating of 30 volts and has a wide temperature tolerance from -50 degrees Celsius minimum to 85 degrees Celsius maximum, making it suitable for industrial, electronic components, power, and connector applications in harsh environments.
The IP68 rating certifies the product’s dust tight and waterproof capabilities which are crucial for applications exposed to moisture and particulates. Its phosphor bronze contact material provides excellent conductivity and durability, extending the connector's lifespan. Termination is achieved through soldering, ensuring a strong and lasting connection to PCB tracks.
This USB connector is available with black or white insulators, and can be supplied in standard or high-retention variants. Cost-saving flash gold plating options are also available as enhancements. Its straight orientation and single port configuration make it highly versatile for compact designs requiring efficient connection solutions.
The connector features 1 port for USB Type B connections. Phosphor bronze contacts ensure conductivity and wear resistance. Straight orientation with through hole mount type provides stability. IP68 rating ensures resistance against dust and water ingress.
Wide operating temperature range suitable for various industrial applications. Termination by solder provides a secure connection on PCB. Available in black or white insulator options to fit design needs. Compatible with USB 2.0 standards for broad device support.
Flash gold plating available for improved contact performance. Ideal for use in electronic components, power connectors, and industrial applications. Explore our full category of USB Connectors and other electronic components at EnvMart for high-quality product selections.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The USB connector operates within a voltage rating of 30V.
It has a wide operating temperature range from -50°C to 85°C, making it suitable for various industrial applications.
This model features a through hole mount type, providing stability for PCB installations.
It has an IP68 rating, ensuring resistance against dust and water ingress.
This connector features a single port for USB Type B connections.
The contact material is phosphor bronze, which ensures excellent conductivity and durability.
Termination is achieved through soldering, ensuring a secure connection to PCB tracks.
Yes, it operates according to USB 2.0 specifications, ensuring compatibility with a wide range of devices.
It is available with black or white insulators to match design requirements.
This model features a straight orientation, which is common for USB Type B connectors.
It is ideal for use in electronic components, power connectors, and industrial applications due to its robust design.
The country of origin for this USB connector is India.
