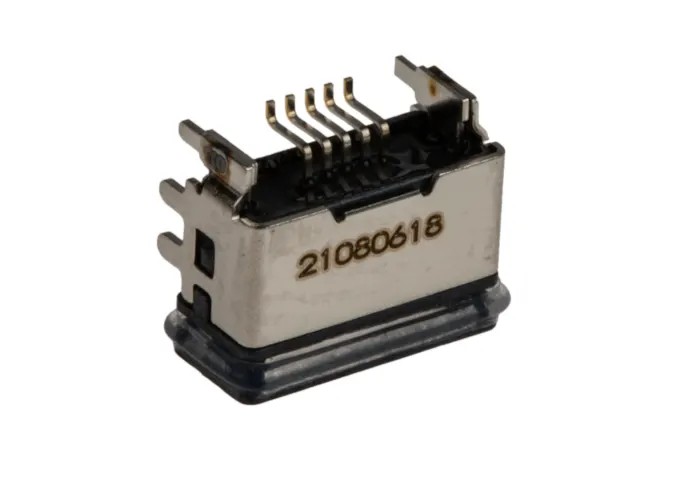

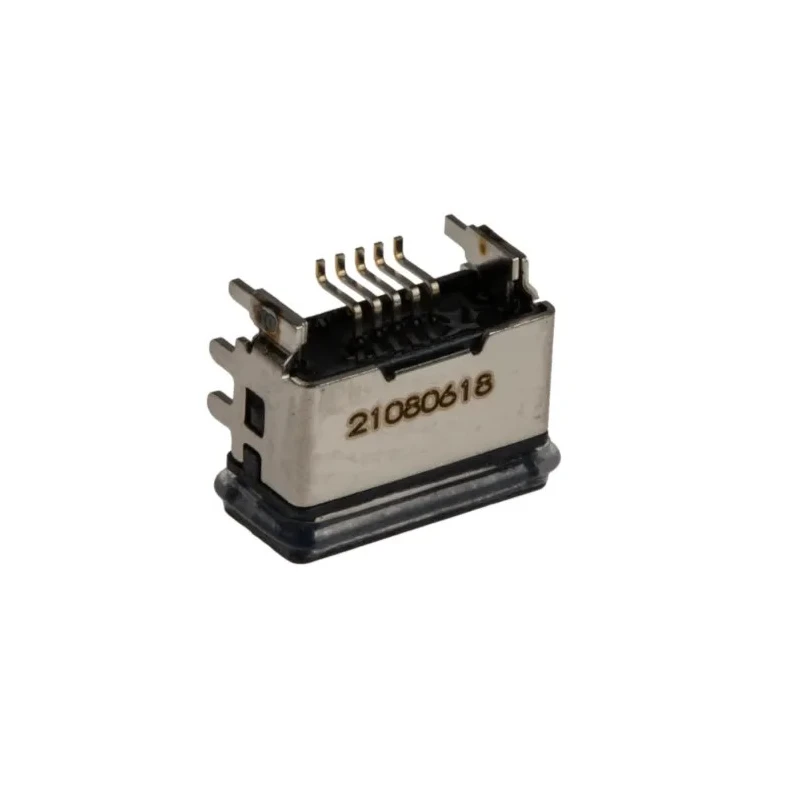

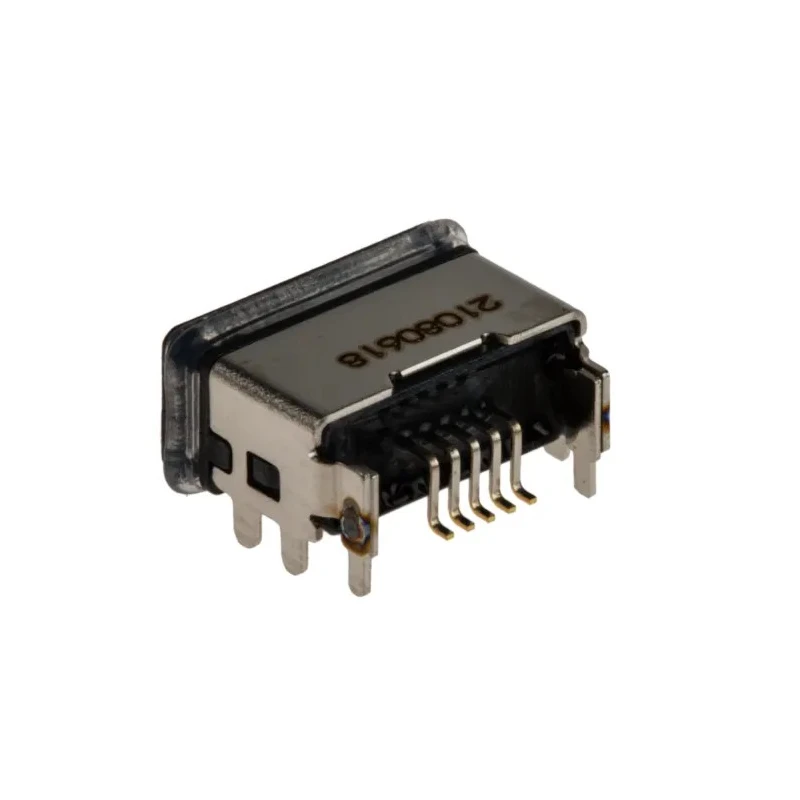

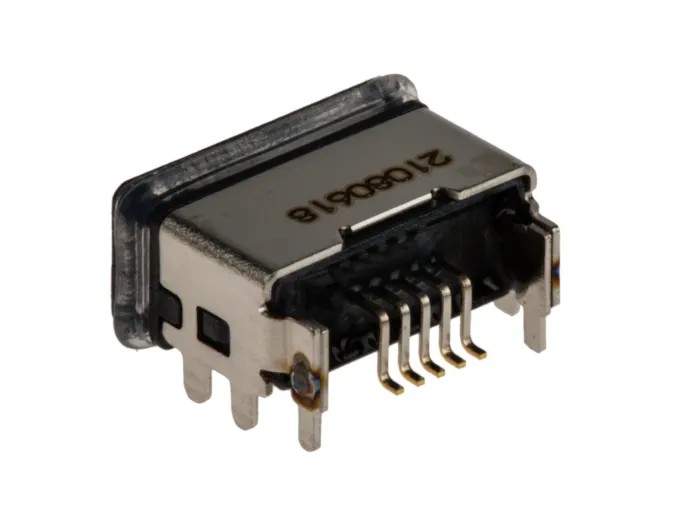

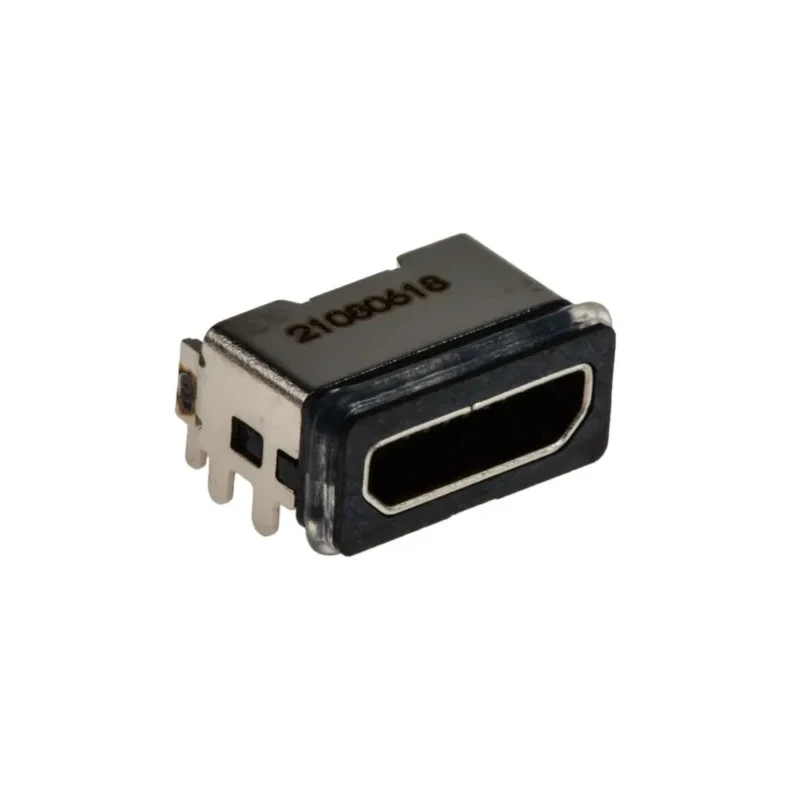

Molex Right Angle Surface Mount Female Micro USB Type B Connector 1 Port IP67 USB 2.0 1.8A 204926-1103
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Right Angle |
| Body Material | Liquid Crystal Polymer |
| Current | 1.8A |
| IP Rating | IP67 |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | 204926 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| USB Type | Micro USB Type B |
| Connector Gender | Female |
| Mating Cycles | 10,000 |
| USB Specification | USB 2.0 |
Key Features
- Right angle female Micro USB Type B connector with surface mount design.
- Supports USB 2.0 standard for high-speed data transfer and power delivery.
- IP67 rated for dust and temporary water immersion resistance.
- Rated for 1.8A current and up to 30V voltage for robust electronic interfacing.
- Copper alloy contacts plated with gold ensure reliable, corrosion-resistant connections.
- Liquid crystal polymer body provides high strength and durability in industrial setups.
- Designed for up to 10,000 mating cycles for extended service life.
- Operating range from -30°C to +85°C to suit extreme environments.
Product Description
The Molex 204926-1103 is a robust right angle surface mount female Micro USB Type B connector, engineered to provide secure connectivity and outstanding performance in demanding electronic applications. With support for USB 2.0, this connector efficiently handles data transfer and charging functions while maintaining a compact form factor suitable for integration into various devices.
Designed with IP67 ingress protection, the connector reliably shields sensitive contacts against dust and brief water immersion, making it ideal for industrial, automotive, medical and commercial environments where exposure to harsh conditions is common. The right angle orientation offers installation flexibility, allowing placement in tight spaces and around corners.
The connector features copper alloy contacts plated in gold, ensuring low contact resistance and excellent corrosion resistance for sustained reliability, even in humid or corrosive atmospheres. Its liquid crystal polymer body material delivers high tensile and compressive strength, minimizing risk of structural failure during mechanical stress. Solder termination further secures the connector in place, maximizing insulation and maintaining stable performance over its service lifetime.
Engineered to withstand up to 10,000 mating cycles, the Molex 204926-1103 is built for the rigorous demands of frequently connected applications such as computer peripherals, printers, projectors, gaming consoles, and other portable devices. Its voltage rating up to 30V and current handling of 1.8A suit both data and power applications, ensuring compatibility with USB-powered systems.
Operational across temperatures from -30°C to +85°C, the connector functions reliably in both refrigerated setups and hot environments, expanding its suitability in industrial automation, laboratory instrumentation, commercial equipment, and consumer electronics.
Common applications include printers, projectors, computers, gaming consoles, DVD players, and embedded systems where rugged, dependable USB connectivity is required.
Explore more Molex connectors and USB interface solutions for your project in the USB Connector category at EnvMart. Discover the full range of industrial connectivity options for electronics systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 1.8A and a voltage of up to 30V, making it suitable for both data and power applications.
It has an IP67 rating, which provides protection against dust and temporary water immersion.
The connector features a body made of liquid crystal polymer and copper alloy contacts plated with gold for corrosion resistance.
It operates reliably in temperatures ranging from -30°C to +85°C, suitable for various environmental conditions.
This unit is engineered to withstand up to 10,000 mating cycles, ensuring longevity in frequently connected applications.
It uses a solder termination type, which secures the connector in place and maximizes insulation.
The connector has a right angle orientation, allowing for flexible installation in tight spaces.
It supports the USB 2.0 specification, enabling high-speed data transfer and power delivery.
This model features a single port configuration, designed for straightforward connectivity.
Common applications include printers, projectors, computers, gaming consoles, and embedded systems that require rugged USB connectivity.
The connector is manufactured in China, as indicated by its country of origin.
