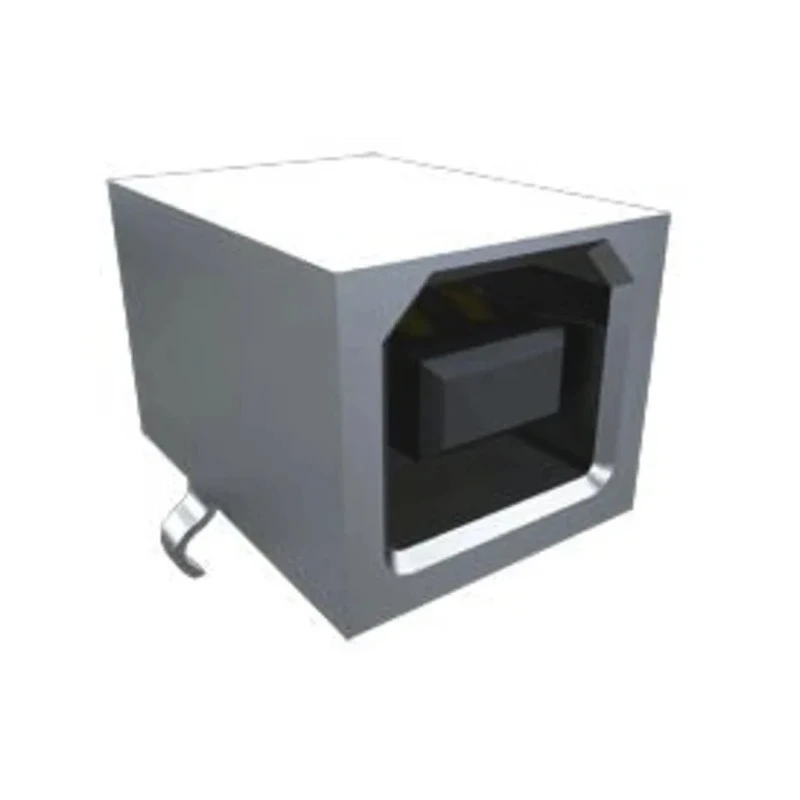

Samtec USB Type B Female Connector, Through Hole, Straight, IP68, USB 2.0, 1 Port, 30V USB-B-S-S-W-TH
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | Samtec |
| Orientation | Straight |
| Model | USB-B-S-S-W-TH |
| IP Rating | IP68 |
| Mount Type | Through Hole |
| Contact Material | Phosphor Bronze |
| Series | USB Type B |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -50°C |
| USB Type | USB Type B |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- Provides reliable USB Type B connectivity for circuit boards and embedded equipment.
- Features through hole mounting for secure mechanical attachment and robust soldering.
- IP68 rating for enhanced waterproof and dust protection in harsh environments.
- Supports USB 2.0 specification for high-speed data transmission.
- Rated for 30V operation and includes durable phosphor bronze contact material.
- Operating temperature range from -50°C to 85°C for industrial versatility.
- Female connector design ensures compatibility with standard USB Type B plugs.
- Comes with standard or high-retention options and black or white insulator choices.
Product Description
The Samtec USB-B-S-S-W-TH is an industrial-grade USB Type B female connector designed for through hole PCB mounting. It features a straight orientation and supports the USB 2.0 specification, ensuring reliable high-speed data transfer between devices and circuit boards. With its robust construction and phosphor bronze contact material, this connector delivers secure electrical performance and long-term durability.
Rated IP68, the connector is engineered to protect against water and dust ingress, making it suitable for installation in rugged, harsh, or outdoor environments where advanced ingress protection is essential. The through hole mounting style provides sturdy mechanical anchoring to the PCB, ideal for applications demanding resilience against physical stress or vibration.
This one-port female connector is designed for direct compatibility with standard USB Type B plugs, commonly used in equipment such as industrial controllers, laboratory analyzers, printers, and interface systems. The connector’s termination type is solder, facilitating strong electrical and mechanical bonds during assembly.
With an operating voltage rating of up to 30V and a wide temperature range from -50°C to 85°C, it can be deployed in demanding conditions including manufacturing, laboratory, process control, and field instrumentation. The device’s insulator options (black or white) and retention styles (standard or high-retention) provide additional customization for both standard and specialized industrial projects.
Approvals and hazardous area certifications are not claimed for this specific model, aligning with its intended industrial and commercial use. The connector series is USB Type B, manufactured in China and constructed with safety, reliability, and performance in mind.
Common applications include industrial automation equipment, laboratory data acquisition modules, commercial electronics, machine interface panels, and any scenario requiring secure USB Type B connections in demanding environments. The Samtec USB-B-S-S-W-TH offers engineers a flexible, high-quality solution for PCB connectivity.
For more USB Connectors, industrial plug solutions, and Samtec brand browsing, explore related EnvMart categories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum operating voltage of 30V.
It has an IP68 rating, providing enhanced protection against water and dust ingress.
The operating temperature range is from -50°C to 85°C, making it suitable for various industrial applications.
It features a through hole mounting style for secure mechanical attachment to the PCB.
The termination type is solder, which facilitates strong electrical and mechanical bonds during assembly.
This model has one port, designed for direct compatibility with standard USB Type B plugs.
The contact material is phosphor bronze, providing secure electrical performance.
It supports the USB 2.0 specification for high-speed data transmission.
The connector comes with options for black or white insulators, allowing for customization.
This model is manufactured in China.
Common applications include industrial automation equipment, laboratory data acquisition modules, and machine interface panels.
The connector features a straight orientation for easy installation.
