Samtec USB Type B Connector, Surface Mount, Right Angle, Female, IP68, USB 2.0, 30V MUSB-05-F-B-SM-A

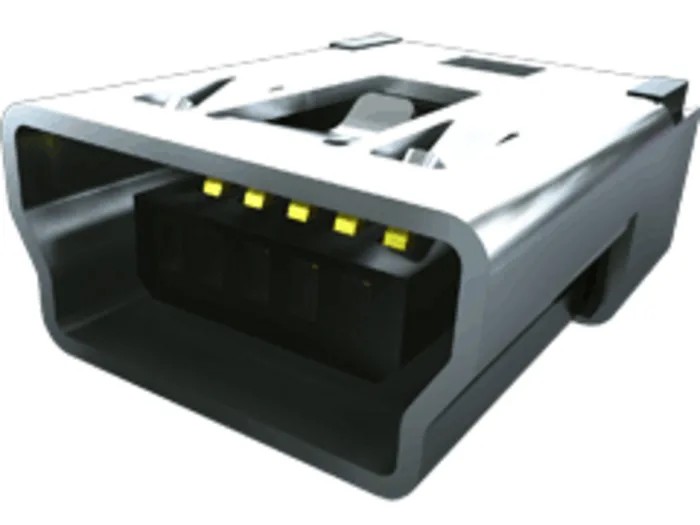

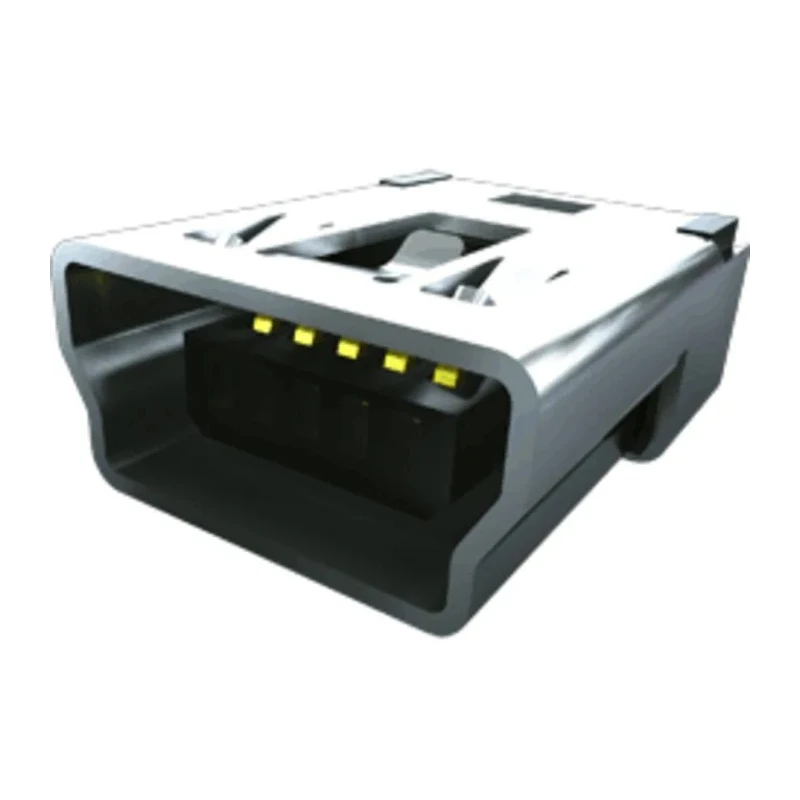

Name: Samtec USB Type B Connector, Surface Mount, Right Angle, Female, IP68, USB 2.0, 30V MUSB-05-F-B-SM-A
Brand: Samtec
SKU: 80967
Price: 1.15 USD
Availability: InStock



Category USB Connector Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	30V
Brand	Samtec
Orientation	Right Angle
Model	MUSB-05-F-B-SM-A
IP Rating	IP68
Mount Type	Surface
Contact Material	Phosphor Bronze
Series	MUSB
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-50°C
Interfaces	USB 2
USB Type	USB Type B
Connector Gender	Female
USB Specification	USB 2.0

Key Features

Surface-mount, right angle USB Type B connector with female port for high-reliability interface.
Rated for USB 2.0 protocol, ensuring fast data transmission and compatibility with common USB devices.
IP68 ingress protection guards against dust and water, suitable for demanding or outdoor environments.
30V voltage rating supports a wide range of circuit integration possibilities.
Operates reliably within a temperature range from minus 50°C to 85°C.
Durable phosphor bronze contacts provide excellent conductivity and mechanical strength.
Solder termination type delivers secure PCB attachment during assembly.
Mini USB 2.0 interface supports standard and high-retention options, enhancing versatility.

Product Description

Samtec MUSB-05-F-B-SM-A is a professional-grade USB Type B connector that features a surface mount, right angle design with female port, specifically engineered for demanding electronics, industrial automation, and embedded system applications. Compliant with USB 2.0 protocol, this connector delivers efficient data transfer and offers broad compatibility with a wide range of USB devices and peripherals. Its mini USB 2.0 interface ensures reliable connectivity for both standard and high-retention requirements.

The connector is rated IP68, providing superior protection against dust ingress and prolonged exposure to water, making it highly suitable for outdoor, industrial, and harsh environment installations. Its robust construction includes phosphor bronze contacts, chosen for their exceptional conductivity and durability, ensuring stable electrical performance over extended service life.

Supporting a 30V voltage rating, Samtec MUSB-05-F-B-SM-A integrates safely into various circuit architectures, while solder termination guarantees secure PCB attachment and resilience under thermal cycling and vibration. The right angle configuration is ideal for space-constrained board layouts, facilitating efficient use of available area without sacrificing electrical integrity.

This connector operates reliably at temperatures as low as -50°C and up to 85°C, allowing deployment across extreme environmental conditions typical of industrial, laboratory, and embedded control panels. Typical use cases include assembly in industrial machinery, factory automation modules, instrumentation boards, and environmental monitoring systems.

The Samtec MUSB-05-F-B-SM-A is part of the MUSB series and offers mini USB 2.0 jacks in standard or high-retention configurations. Flash gold plating options are available for cost-saving without compromising performance. All materials are RoHS-compliant and engineered to deliver reliable operation for demanding electronic interfaces.

This versatile connector is an excellent choice for designers seeking high durability, ingress protection, and space-efficient connectivity in industrial, laboratory, and embedded system applications. Browse more Samtec USB Connectors and electronic interface solutions on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a voltage rating of 30V, allowing it to integrate safely into various circuit architectures.

It is rated IP68, providing protection against dust ingress and prolonged exposure to water, making it suitable for demanding environments.

This connector operates reliably in temperatures ranging from -50°C to 85°C, making it suitable for extreme environmental conditions.

It uses a solder termination type, ensuring secure PCB attachment during assembly.

The connector features one port, designed for USB Type B connections.

The contacts are made from phosphor bronze, which provides excellent conductivity and mechanical strength.

This model has a right angle orientation, which is ideal for space-constrained board layouts.

It complies with the USB 2.0 specification, ensuring fast data transmission and broad compatibility with USB devices.

It features a surface mount design, suitable for various electronic applications.

This connector is part of the MUSB series, which includes mini USB 2.0 jacks in standard and high-retention configurations.

Yes, all materials used in this connector are RoHS-compliant, ensuring they meet environmental standards.

This connector is suitable for applications in industrial machinery, factory automation modules, instrumentation boards, and environmental monitoring systems.
