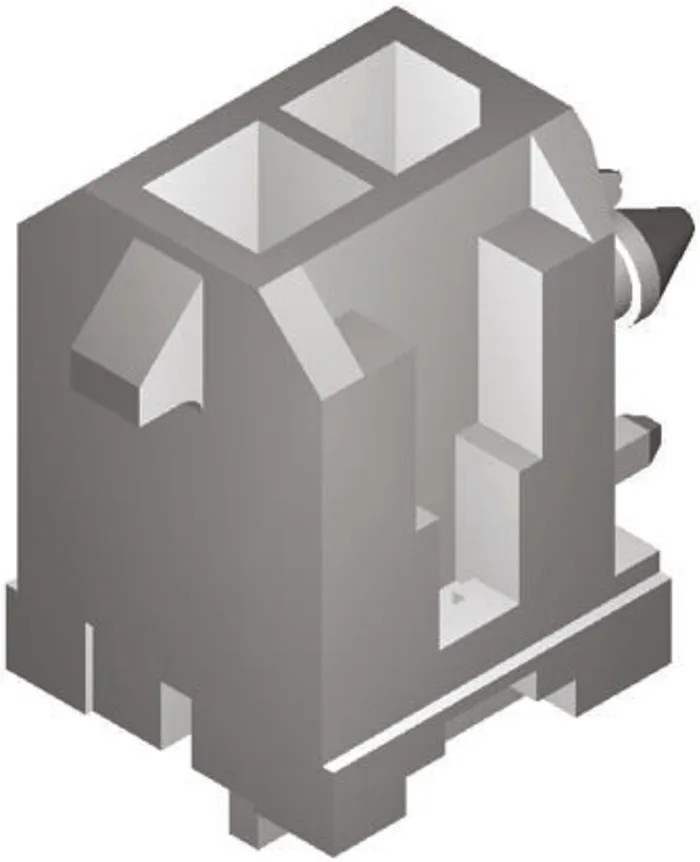

Molex Micro-Fit 3.0 Series Right Angle Through Hole PCB Header, 8 Contacts, 3 mm Pitch, 2 Row, Shrouded 43045-0801
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 5A |
| Mount Type | Through Hole |
| Housing Material | High Temperature Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3mm |
Key Features
- Designed with a 2-row shrouded housing for secure mating.
- Supports up to 5A current with 250V voltage rating.
- Housing made from high-temperature thermoplastic suitable for IR reflow soldering.
- Brass contacts plated with gold ensure excellent conductivity and durability.
- Right angle orientation with through hole mount type for PCB integration.
- Mating pin length of 3 mm for secure electrical performance.
- Supports minimum operating temperature of -40°C and maximum up to 125°C.
- Incorporates snap-in plastic peg PCB locks for stable mounting.
Product Description
Molex 43045-0801 Micro-Fit 3.0 Series Right Angle Through Hole PCB Header is a compact dual-row connector providing reliable wire-to-board connectivity for low to mid-range power distribution applications.
This PCB header features 8 male contacts arranged on a 3 mm pitch in two rows with a shrouded housing made from high temperature thermoplastic. The housing material is rated UL 94V-0 and can withstand temperatures up to 265°C during IR reflow solder processes.
Designed for a current capacity of 5A and voltage rating of 250V, this connector offers robust performance in industrial, telecommunications, automotive, consumer products, gaming terminals, and data communications equipment. The right angle orientation and through-hole mounting type enable easy installation on PCBs.
The brass contacts are gold plated to ensure excellent conductivity and corrosion resistance. Snap-in plastic peg PCB locks secure the header firmly onto PCBs, minimizing the risk of accidental disconnection. Positive latching with a locking ramp enhances mating security.
Operating temperature range from -40°C to 125°C supports a variety of environments including harsh industrial conditions. Fully isolated dual beam terminals reduce arcing and improve electrical reliability.
Designed for reliable wire-to-board power connections with 8 contacts. High temperature UL 94V-0 thermoplastic housing for IR reflow soldering. Gold-plated brass contacts provide lasting conductivity. Snap-in peg locks for secure PCB attachment.
Right angle, through-hole mount type suitable for diverse PCB layouts. Current carrying capacity up to 5A at 250V rating. Stable operation within operating temperatures of -40°C to 125°C. Used widely in telecommunications, medical, consumer appliances, and industrial equipment.
This Micro-Fit 3.0 Series PCB Header by Molex offers a compact, energy-efficient, and secure connector solution suitable for a broad range of electronics manufacturing and repair applications. Explore related PCB connectors and headers at EnvMart for seamless integration.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current capacity of up to 5A and a voltage rating of 250V.
It features a 3 mm pitch and has 8 male contacts arranged in 2 rows.
The housing is made from high-temperature thermoplastic, which is suitable for IR reflow soldering.
This PCB header uses a through-hole mount type for easy installation on PCBs.
It operates within a temperature range of -40°C to 125°C, making it suitable for various environments.
It incorporates snap-in plastic peg PCB locks for stable mounting and positive latching with a locking ramp to enhance mating security.
This model uses solder termination for secure connections.
The contacts are made of brass and are gold plated to ensure excellent conductivity and corrosion resistance.
It is suitable for low to mid-range power distribution applications in industrial, telecommunications, automotive, consumer products, and data communications equipment.
This model features a right angle orientation for PCB integration.
The country of origin for this connector is India.
The mating pin length for this connector is 3 mm, ensuring secure electrical performance.
