RS PRO Clamp Meter AC 600 A 999.9 V DC 750 V AC Non-Contact Voltage Detector ICMA6

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Clamp Meter AC 600 A 999.9 V DC 750 V AC Non-Contact Voltage Detector ICMA6

Name: RS PRO Clamp Meter AC 600 A 999.9 V DC 750 V AC Non-Contact Voltage Detector ICMA6
Brand: RS PRO
SKU: 192031
Price: 162.02 USD
Availability: InStock



Category Clamp Meter Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Display Type	Digital
Brand	RS PRO
Battery Life	250h
Battery type	IEC 6F22, NEDA 1604
Height	200mm
Length	83mm
Model	ICMA6
Gross Weight	375g
Width	48mm
Maximum Operating Temperature	50°C
AC Voltage Resolution	100mV ac
Minimum Operating Temperature	-20°C
DC Voltage Resolution	100 mV dc
Resistance Measurement Accuracy	±2% + 2 Digits
AC Current Accuracy	±1.9 % rdg + 5 Digits
AC Current Resolution	100mA
Maximum Jaw Opening	32mm
Standards/Approvals	IEC 61010-1
Functions Measured	AC Current, Diode, Resistance, DC Voltage, AC Voltage, Continuity
Maximum Resistance Measurement	2kΩ
Maximum AC Current Measurement	600A
Maximum DC Voltage Measurement	999.9V dc
Maximum AC Voltage Measurement	750V ac
Safety Category Level	CAT III, CAT II
Safety Category Voltage	600, 1V
Maximum Conductor Size	32mm
Clamp Meter Type	Current, Voltage
RS PRO ICMA9 Clamp Meter 600 A ac 999.9 V dc 600 V ac CAT III, CAT IIBrand	RS PRO

Key Features

Measures AC current, DC voltage, resistance, continuity, and diode testing functions.
Features a maximum jaw opening of 32 mm for cable diameter compatibility.
Safety certified with CAT III 600 V and CAT II 1000 V ratings ensuring operator protection.
Operates within a temperature range of -20°C to 50°C for varied environments.
Battery powered with IEC 6F22 (9V) batteries providing 250 hours of operating life.
Compact size with dimensions 83 x 48 x 200 mm and lightweight design at 375 g for portability.
Complies with IEC 61010-1 standard for electrical test equipment safety.

Product Description

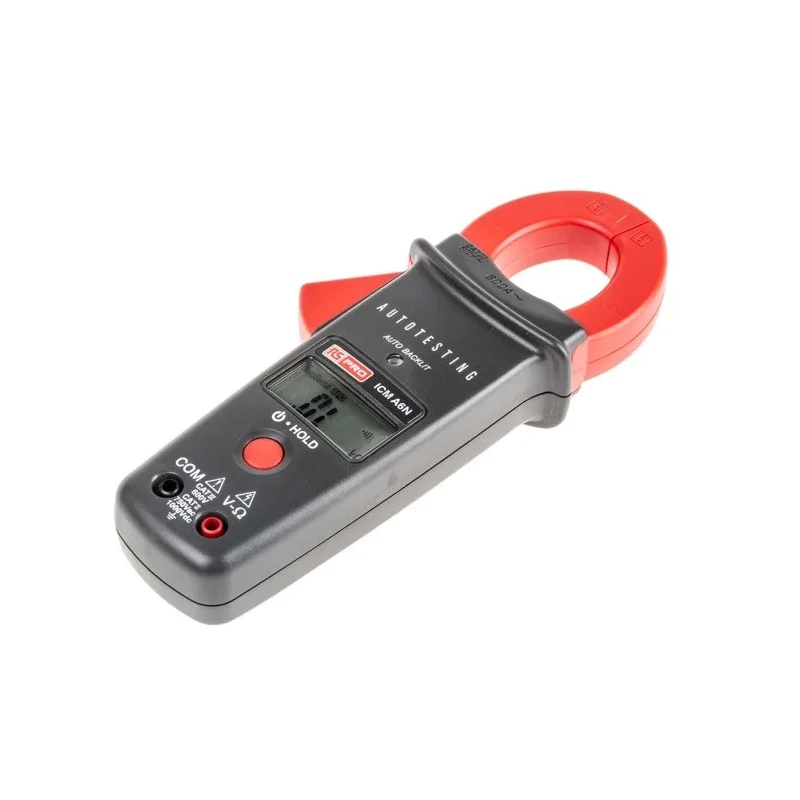

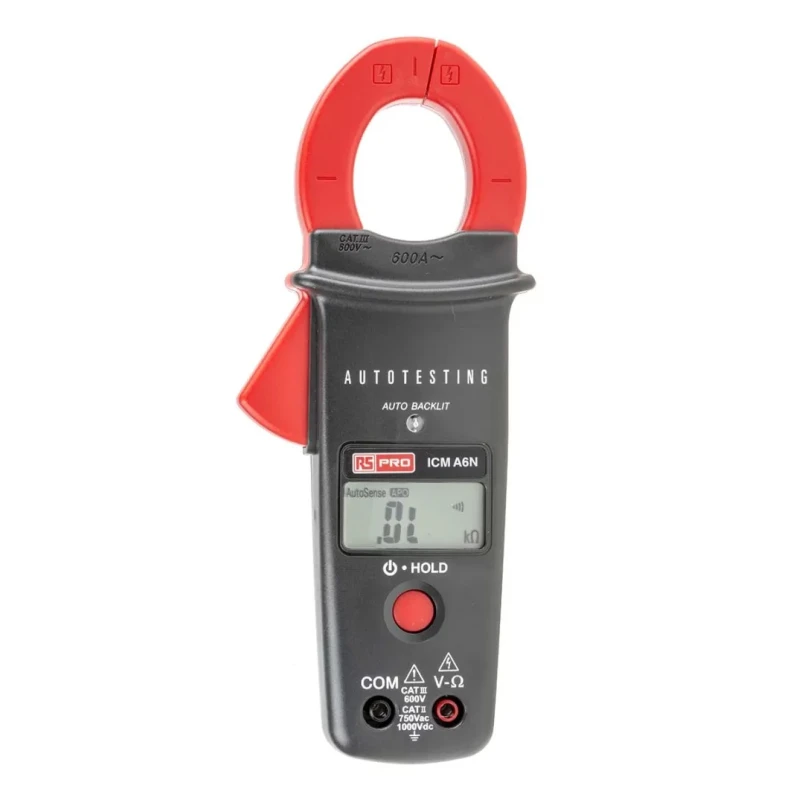

The RS PRO ICMA6 Clamp Meter is a highly reliable instrument designed for accurate measurement of AC currents up to 600 A and DC voltages up to 999.9 V, making it ideal for electricians and technicians. It includes features such as resistance measurement, continuity checks, diode testing, and non-contact voltage detection.

This clamp meter is equipped with an automatic function selection for ease of use, eliminating the need for manual setting adjustments. Its digital display offers precise readings backed by a high level of accuracy, suitable for troubleshooting, maintenance, and installation tasks in industrial, commercial, and residential electrical systems.

The meter is compact and lightweight measuring 83 mm in length, 48 mm in width, and 200 mm in height, with a clamp jaw opening of 32 mm to accommodate various conductor sizes. It operates safely under electrical standards IEC 61010-1 with CAT III 600 V and CAT II 1000 V safety ratings, ensuring dependable operation under a broad range of site conditions.

This ensures extended use without frequent battery changes, enhancing productivity on the field. The meter is also designed to operate efficiently within a temperature range from -20°C to +50°C, suitable for various environmental conditions.

Measures AC current, DC voltage, resistance, continuity, and diode testing with high accuracy. Non-contact voltage detector for enhanced safety in electrical diagnostics. Large jaw capacity of 32 mm supports a wide range of conductor sizes.

Battery life of 250 hours ensures prolonged field operation. Certified to IEC 61010-1 and compliant with CAT II 1000 V and CAT III 600 V safety standards. Lightweight and portable design measuring 83 x 48 x 200 mm and weighing 375 g.

Operating temperature range from -20°C to 50°C suits diverse working environments. Automatic function selection streamlines measurement process.

This RS PRO Clamp Meter is an essential tool for professionals conducting electrical testing, maintenance, and safety verification. Explore the comprehensive range of measuring instruments on EnvMart for all your industrial and electrical testing needs.
