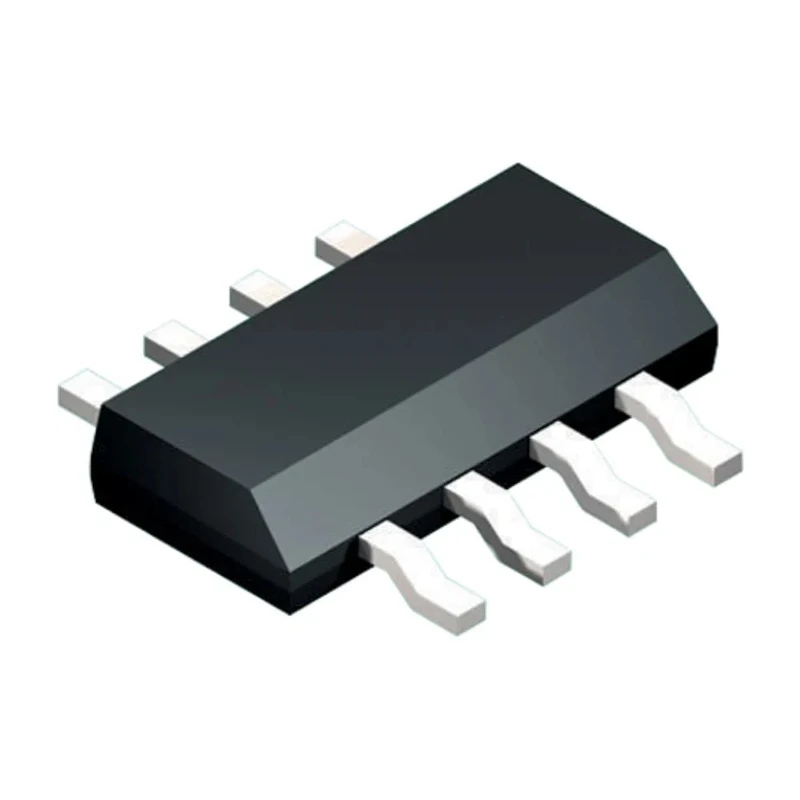

Texas Instruments CMOS Dual Bus Buffer, 8-Pin, Logic Family LVC, Operating Voltage 1.65 to 5.5 V SN74LVC2G126DCTR

Texas Instruments SN74LVC2G126DCTR CMOS Dual Bus Buffer 8-Pin device from the SN74LVC2G126 series is designed for low-voltage CMOS applications and provides reliable buffer functionality in digital circuits.

This device operates with a wide voltage range from 1.65 to 5.5 volts and supports surface mount assembly with an 8-pin package measuring 1.2 mm in height and 3.15 mm in length.

The input type is CMOS and output type is also CMOS, ensuring compatibility with various logic families including LVTTL and TTL inputs and LVCMOS outputs. It does not have a Schmitt Trigger input.

Electrical characteristics include maximum high-level output current of -32 mA and maximum low-level output current of 32 mA, supporting robust signal drive in industrial and electronic equipment environments.

The device is rated for operation in temperature ranges from -40°C to 125°C, allowing use in a variety of industrial, laboratory, and embedded system applications. Compliant with the RoHS directive, it meets environmental standards for lead-free manufacturing and usage.

Logic family: LVC. Dual bus buffer configuration supports bus-driving needs in embedded and industrial digital systems. Surface mount package facilitates automated PCB assembly and space-saving designs. Regulated voltage compatibility and bipolar operation voltage range make it suitable for flexible system designs.

Ideal for use in industrial control equipment, communication devices, consumer electronics, and automotive electronics where robust buffer ICs are required.

This Texas Instruments product provides reliable, low-voltage CMOS buffering with excellent electrical performance and industry-standard compliance. It is suitable for integration in manufacturing, automotive, and test & measurement applications.

Explore more Logic ICs and Texas Instruments products on EnvMart to find compatible components for your projects.
