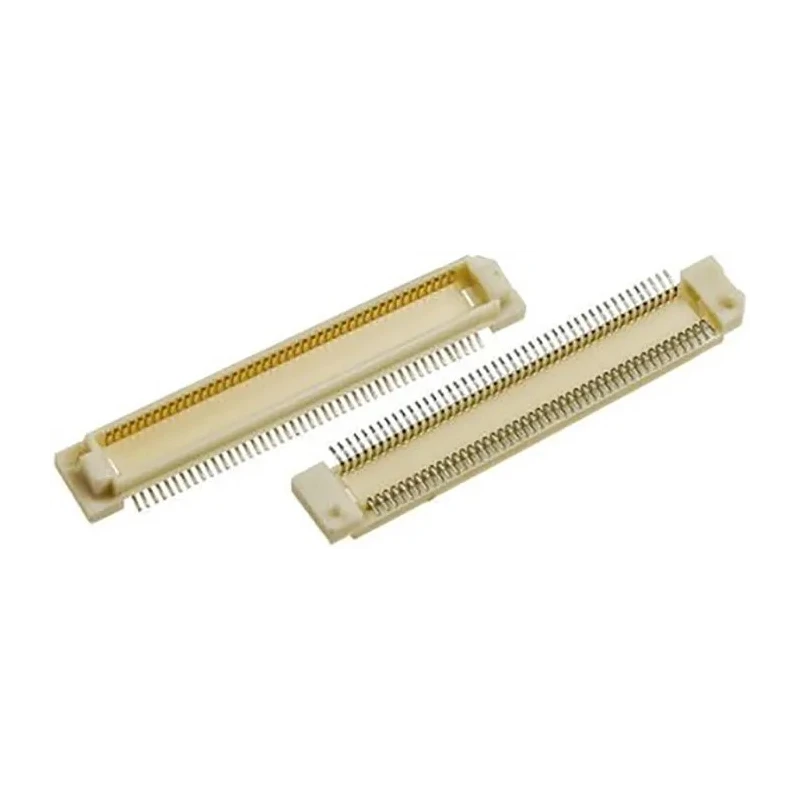

Hirose FunctionMAX FX8 Series Straight Surface PCB Header, 120 Contacts, 0.6 mm Pitch, 2 Row, Shrouded FX8-120P-SV(91)

Hirose FX8-120P-SV(91) FunctionMAX FX8 Series Straight Surface PCB Header features 120 contacts with a 0.6 mm pitch arranged in 2 rows. This shrouded, straight orientation surface mount connector is designed for board-to-board connections with high-speed transmission capability of up to 3.125 Gbit/s, ensuring excellent signal integrity.

The connector integrates built-in mating guide ribs providing ±0.6 mm self-alignment tolerance for ease of mating and design flexibility. Bosses for alignment on the PCB with differing diameters and positions ensure correct placement and prevent misinsertion. The contacts employ an optimized spring deflection design to enhance electrical reliability over long-term use.

Manufactured with a durable Polyphenylene Sulphide housing and phosphor bronze contacts plated with gold, the connector is suitable for demanding applications such as servers, broadcast equipment, industrial machinery, medical devices, and POS terminals. Its surface mount technology (SMT) features coplanarity with less than 0.1 mm tolerance at the solder area, contributing to reliable and precise assembly.

Operating parameters include a voltage rating of 100 V and a current rating of 400 mA. It is designed for operation in temperature ranges from -55°C to 85°C, making it suitable for diverse industrial environments.

This FX8 series connector offers a stacking height range from 3 mm to 4 mm, offering flexibility in board design. It is important to note that the FX8 series connectors are not compatible with FX8C series connectors.

Supports high-speed data transmission up to 3.125 Gbit/s. Built-in guide ribs allow ±0.6 mm misalignment for easy mating. Bosses for PCB alignment prevent misinsertion. Contacts feature optimized spring deflection for enhanced reliability.

Surface mount technology with coplanar tolerance under 0.1 mm at solder area. Wide stacking height range from 3 mm to 4 mm. Voltage rating of 100 V and current rating of 400 mA. Durable Polyphenylene Sulphide housing material.

Gold-plated phosphor bronze contacts. Operating temperature range from -55°C to 85°C.

This PCB Header is suited for industrial, electronic, broadcast, medical, and POS system applications, providing reliable high-speed connections. Explore EnvMart's comprehensive range of Hirose connectors and similar PCB components for your electronic design and manufacturing needs.
