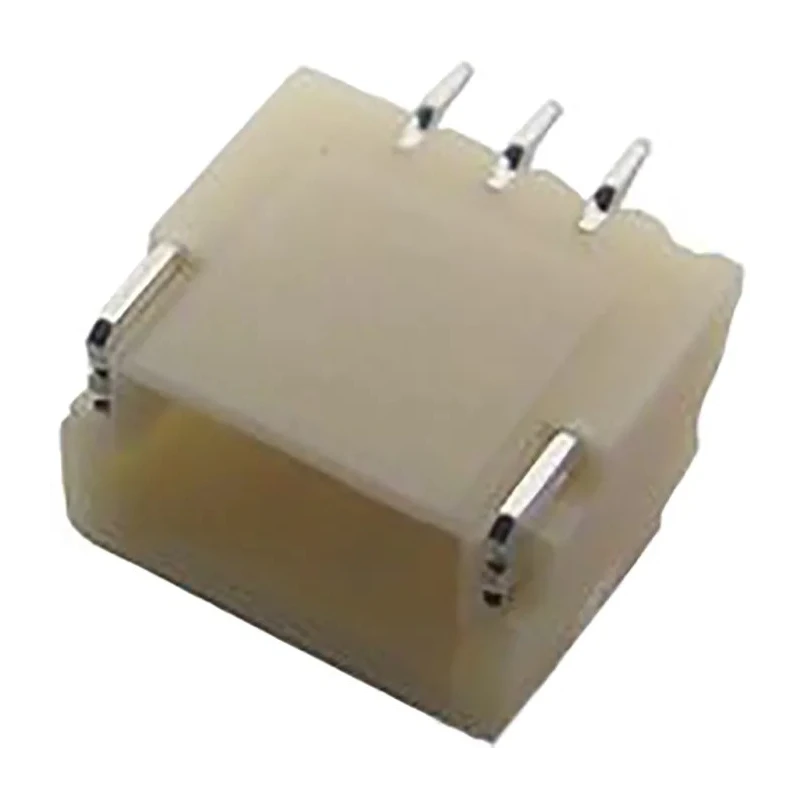

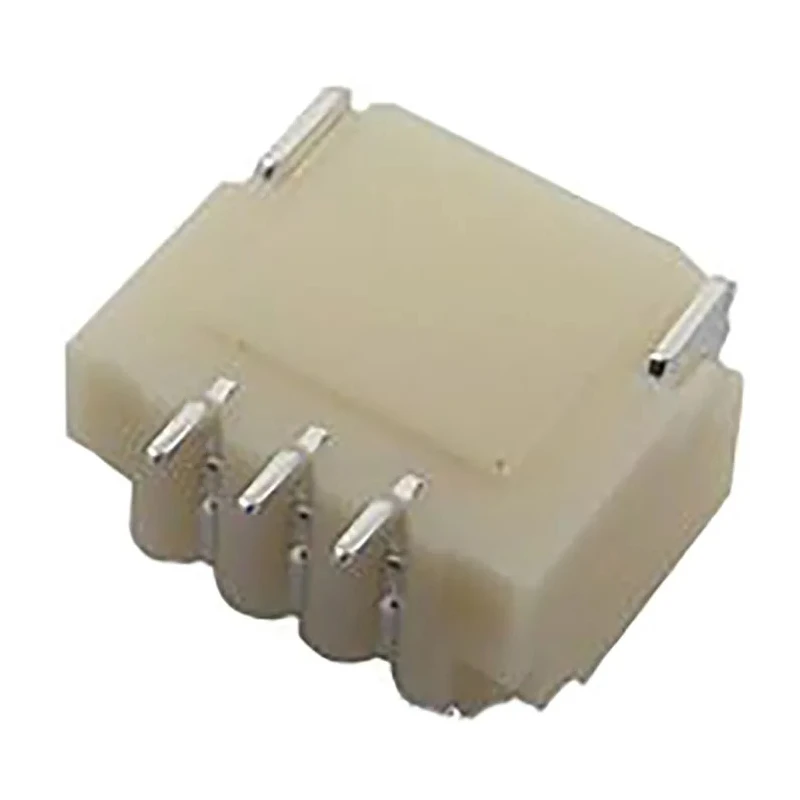

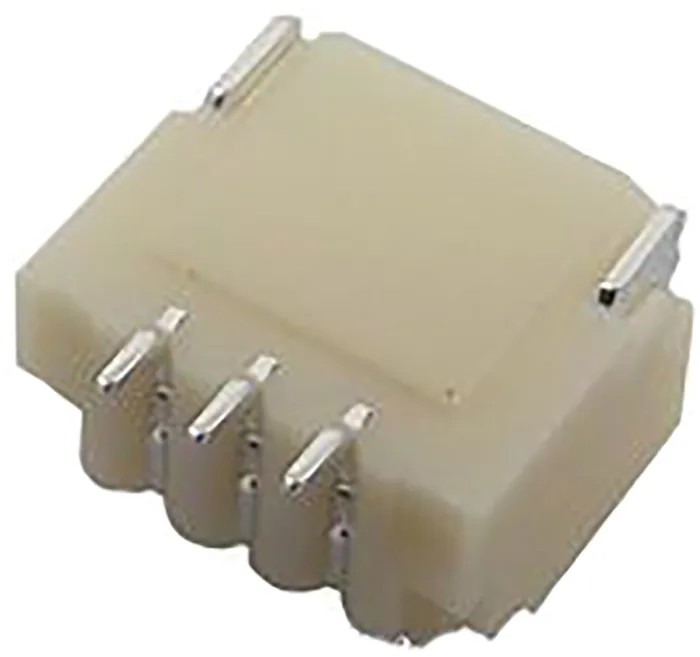

JST SH Series Right Angle Surface PCB Header 3 Contacts 1 mm Pitch 1 Row Shrouded SM03B-SRSS-TB(LFSN)

Free Delivery in India | Lowest Global Shipping Charges

JST SH Series Right Angle Surface PCB Header 3 Contacts 1 mm Pitch 1 Row Shrouded SM03B-SRSS-TB(LFSN)



Category PCB Header Brand JST Condition New

Specifications

Country of Origin	India
Voltage	50V
Brand	JST
Orientation	Right Angle
Current	1A
Model	SM03B-SRSS-TB(LFSN)
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	SH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	1mm
Contact Plating	Tin
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

This connector features a polyamide housing material providing chemical and heat resistance.
It supports a current rating of 1 ampere.
The orientation is right angle with a shrouded design for enhanced protection.
Contacts are made of copper alloy with tin plating to ensure reliable conductivity and corrosion resistance.
The header mates with crimp terminal housings, specifically compatible with the 311-6502 series.
Operating temperature ranges from -25°C to 85°C for broad environmental suitability.
The termination type is solder, suitable for surface mount assembly processes.
It operates at a voltage rating of 50 V.

Product Description

The JST SH Series Right Angle Surface PCB Header model SM03B-SRSS-TB(LFSN) is a high-quality wire-to-board connector designed for compact surface mount applications with limited board space. This shrouded header incorporates 3 contacts arranged in a single row with a precise 1 mm pitch and a right-angle orientation, making it ideal for side entry connections.

Manufactured with a durable polyamide housing, this PCB header offers excellent mechanical strength and chemical resistance, ensuring performance stability under demanding conditions. The contacts are crafted from copper alloy and plated with tin, enhancing conductivity and providing corrosion resistance for long-term reliability.

Designed to mate with specific crimp terminal housings, particularly the 311-6502 series, the header incorporates solder terminations with additional solder tabs increasing mechanical support during PCB assembly, improving manufacturing efficiency.

Capable of handling 1 amp current at 50 volts, it suits moderate power signal transmission in electronic assemblies. The operating temperature range from -25°C to 85°C supports diverse environmental applications in industrial, automotive, communication, and consumer electronic devices.

This connector adheres to no special standards or approvals but provides reliable mating with low force and polarization to prevent mis-assembly. The compact footprint and shrouded design reduce risk of accidental contact and improve connector durability.

This PCB Header is a versatile solution for various electronics manufacturing industries needing compact, reliable right-angle surface mount connections. Its robust construction and solder tabs enhance production stability and service life in mass assembly processes.

As part of the EnvMart industrial catalog, this connector is suitable for professional applications including industrial electronics, manufacturing automation, communication devices, and consumer electronics requiring compact and durable PCB interconnections.

Explore additional JST connector series and related PCB mounting solutions in the EnvMart catalog for comprehensive electronic assembly options.
