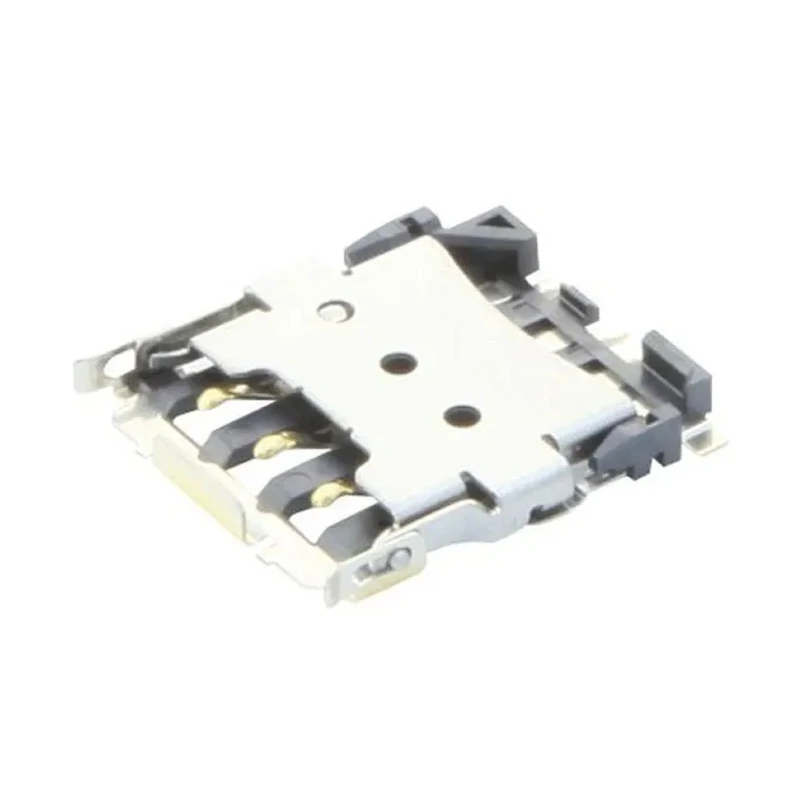

JST 6 Way Flip Cover Smart Card Memory Card Connector, Surface Mount, Solder Termination SCZW-7SA-1K(HF)

Free Delivery in India | Lowest Global Shipping Charges

JST 6 Way Flip Cover Smart Card Memory Card Connector, Surface Mount, Solder Termination SCZW-7SA-1K(HF)



Category Memory Card Connector Brand JST Condition New

Specifications

Country of Origin	Japan
Brand	JST
Orientation	Straight
Model	SCZW-7SA-1K(HF)
Gender	Male
Mount Type	Surface
Housing Material	Resin
Contact Material	Copper Alloy
Series	SCZW
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	2
Pitch	4.3mm
Contact Plating	Gold, Nickel
Number of Contacts	6
Card Type	Smart Card
Insertion/Removal Method	Flip Cover

Key Features

The connector features a flip cover mechanism for secure insertion and removal.
It supports 6 contacts arranged in 2 rows with a 4.3 mm pitch.
The contact material is copper alloy with gold and nickel plating for enhanced conductivity and durability.
The housing is made of resin for insulation and mechanical protection.
Operational temperature ranges from -25°C to 85°C ensuring reliable performance in varied environments.
The connector is designed to conform to ETSI TS102 221 standards.
Suitable for applications in mobile phones, smartphones, and compact communication devices.
Offers a low-profile height of 1.7 mm to maximize PCB space efficiency.

Product Description

JST SCZW-7SA-1K(HF) is a high-quality 6 Way Flip Cover Smart Card Memory Card Connector designed for use with nano SIM cards (4FF Fourth Form Factor). This surface mount connector features a solder termination type and is engineered with a compact, low-profile height of 1.7 mm to optimize printed circuit board space.

The connector incorporates a flip cover insertion/removal method allowing secure and easy card handling. It includes 6 contacts arranged in 2 rows with a 4.3 mm pitch, constructed from copper alloy with gold and nickel plating, ensuring reliable electrical performance and resistance to corrosion.

The resin housing offers mechanical protection and insulation, designed to withstand operating temperatures ranging from -25°C to 85°C, suitable for various environmental conditions encountered in industrial and consumer electronics.

Conforming to ETSI TS102 221 technical standards, the connector is ideal for integration in mobile phones, smartphones, and other small communication devices requiring reliable memory card interfaces while maintaining minimal PCB footprint.

The connector features a flip cover for enhanced protection and secure card retention. Low profile height of 1.7 mm supports space-saving PCB design. 6 contacts in 2 rows, pitch of 4.3 mm, ensuring compact connectivity. Copper alloy contacts plated with gold and nickel for durability and conductivity.

Surface mount with solder termination for robust PCB assembly. Resin housing provides insulation and environmental protection. Wide operating temperature range from -25°C to 85°C for reliability. Designed according to ETSI TS102 221 standards for quality assurance.

This connector supports industrial, telecommunications, and consumer electronic applications requiring trusted smart card interfacing. Suitable for manufacturers and design engineers working on compact mobile devices and communication technologies.
