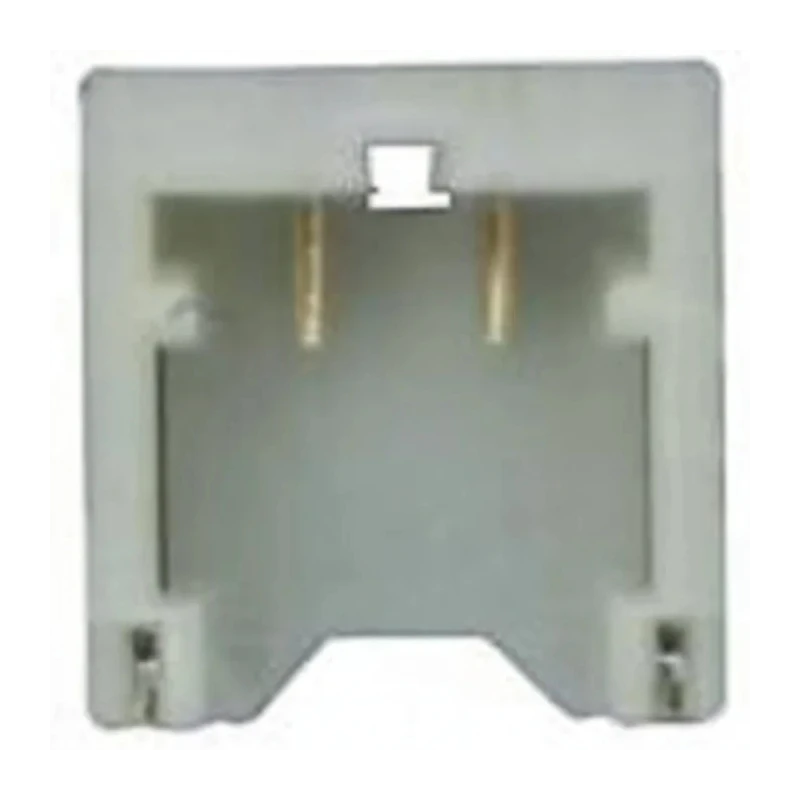

JST ACH Series Right Angle Surface PCB Header 2-Contact 1.2mm Pitch 1-Row Shrouded BM02B-ACHSS-GAN-ETF (LF)(SN)

JST BM02B-ACHSS-GAN-ETF (LF)(SN) ACH Series Right Angle Surface PCB Header is a precision-engineered wire-to-board connector designed for high-performance electronics and industrial applications. Featuring 2 male copper alloy contacts plated with gold, this shrouded header with a 1.2 mm pitch offers excellent conductivity and corrosion resistance. The thermoplastic housing provides robust insulation and mechanical strength while maintaining a compact profile with a height of 1.4 mm and a width of 4.3 mm.

This right angle surface mount header is ideal for compact PCB layouts requiring reliable electrical connections with a current rating of 2 A and voltage rating of 50 V. Its operating temperature range of -25°C to 85°C ensures dependable operation in challenging environments encountered in industrial, manufacturing, and commercial electronics.

The solder termination type facilitates secure mounting on PCB boards, while the shrouded design ensures safety and correct mating by preventing contact damage. Made in Japan, the product meets stringent quality standards for electronic connectors used in automation equipment, instrumentation, and consumer electronics.

Key design features include a one-row configuration and wire-to-board system enabling versatile integration. The JST ACH series is known for compactness, allowing high-density circuit designs in limited space applications.

The connector utilizes a right angle orientation optimized for surface mounting on PCBs. Contacts are made of copper alloy and plated with gold for enhanced conductivity and corrosion resistance. The housing material is sturdy thermoplastic providing durability and insulation.

Suitable for a current rating of 2 amps and a voltage rating of 50 volts. Designed with a compact, low-profile form factor measuring approximately 1.4 mm height and 4.3 mm width. Operational temperature range from -25°C up to 85°C ensures reliable performance in various environments.

Termination type is solder, ensuring secure and stable electrical connection. Connector system is wire-to-board, facilitating easy connection to PCB and wire harnesses. Male contact gender with shrouded design enhances safety and prevents accidental mis-mating.

Manufactured in Japan with consistent quality control for industrial and commercial electronics applications.

This JST ACH series PCB header is highly suitable for electronic assembly in industries such as telecommunications, automation systems, instrumentation, and other electronic manufacturing sectors. Its reliable construction and performance have made it a preferred choice for dense PCB designs requiring compact and secure connectors.
